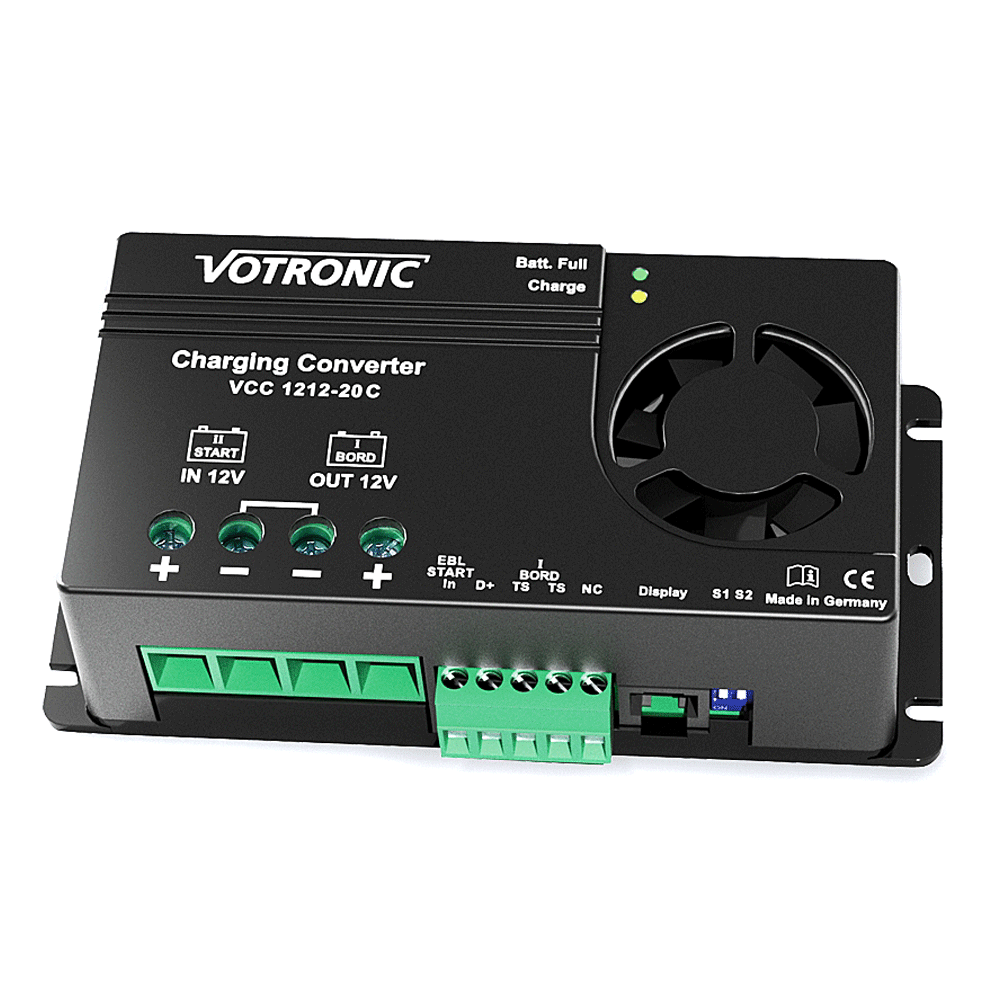

Votronic Charge Converter/Charge Booster VCC 1212-20 C - 3321

Votronic Charging Booster VCC-1212-20 for 12V - 20A Charging Power

Charging booster, optimal charging even on short journeys

VOTRONIC charging boosters ensure optimal and fast charging of the supply battery from the alternator while driving. In contrast to a simple isolating relay, the charging voltage is increased to the value necessary for a full charge for the respective battery type and required by the battery manufacturers. This allows the full charging current to flow and considerable amounts of current to be charged into the battery in a short time. Long charging cables and losses, as well as voltage fluctuations at the alternator, are cleanly regulated.


Designed for operation with a 13-pin trailer plug for caravans and truck campers

The device is primarily designed for operation with the 13-pin trailer plug of the towing vehicle for charging the caravan battery. It automatically regulates itself so that the load capacity of the plug and the upstream vehicle electrical system (12 V / max. 20 Amps) is not exceeded. From this perspective, the performance of the device results. The charging converter is installed in the caravan/truck camper and provides the optimal charging voltage for the battery, regardless of vehicle onboard voltage fluctuations and cable/connector voltage losses.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard! Quality - Made in Germany - !

The charging converters thus provide the well-known high quality of battery charging of VOTRONIC chargers even while driving. The intelligent microprocessor charging control with "IU1oU2" charging characteristics and dynamic charging time calculation automatically ensures fast and gentle full charging, as well as subsequent charge retention of the connected batteries from any state of charge, and always enables the simultaneous supply of consumers parallel to the supply battery.

Further special features at a glance:

• Votronic products "Made in Germany"
• High charging power even on short journeys
• Significantly improved energy balance of the onboard battery
• Optimal charging curves for all battery types adjustable via battery selector switch (lead-acid, gel, AGM, lithium LiFePO4)
• Suitable for all alternators
• Automatic, adjustable power regulation ensures priority charging of the starter battery by the alternator when the vehicle's onboard electrical system is heavily loaded, thus ensuring the vehicle's immediate starting capability again
• Easy installation, no intervention in the vehicle's starter circuit required, device is connected in the charging line to the supply battery
• Parallel operation possible to increase power
• Especially recommended for vehicles with Euro 6 standard
• Temperature sensor 825 already included in delivery
• The charging converters are also characterized by their compact design, low weight (high-frequency switching transformer, switch mode technology) and powerfully dimensioned power components. 6 operating indicators provide information about the operating status of the device at any time.

As an accessory, we recommend the clear LCD-Charge Control S-VCC (1248). With this, you always have information about the charge at a glance; the display was developed exclusively for the VCC 1212 device series.
