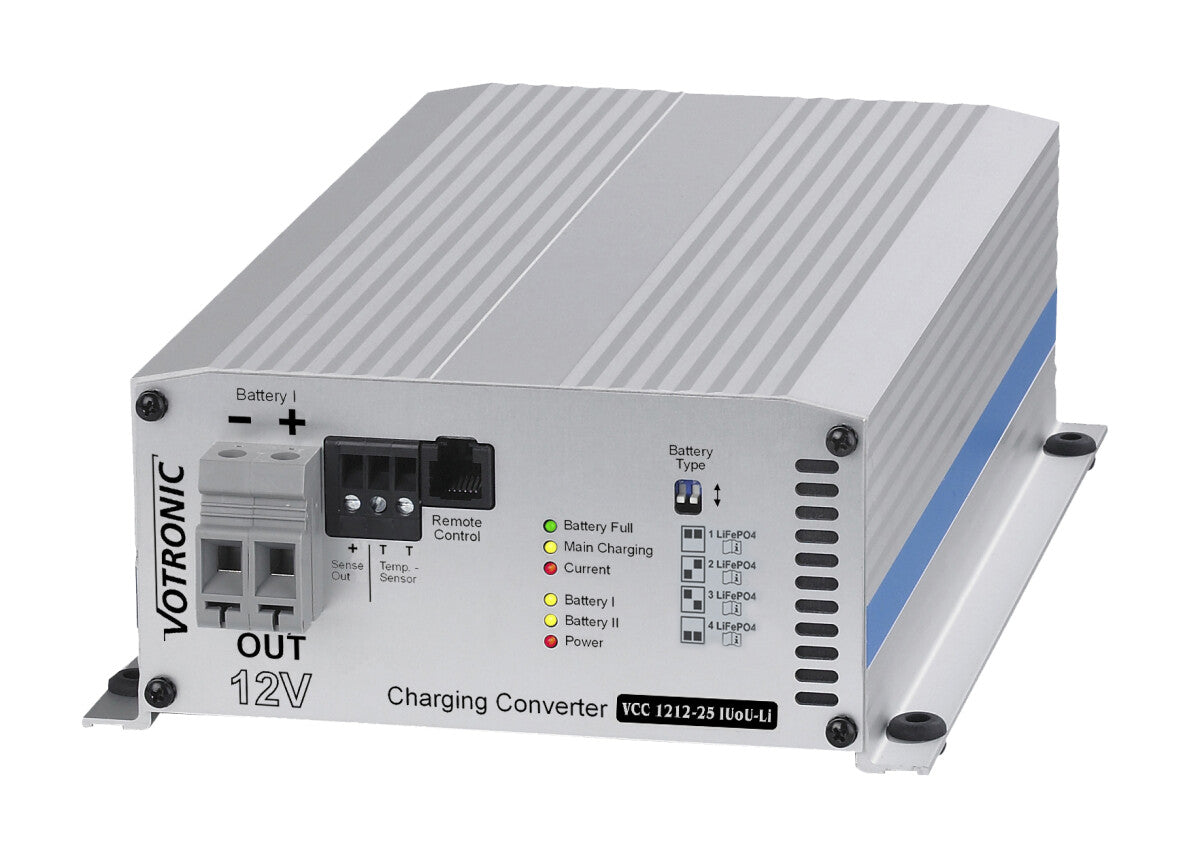

Votronic Charge Converter/Charge Booster VCC 1212-25 IUoU-Li - 3306

Votronic Charging Booster VCC-1212-25 for 12V - 25A Charging Power

Charging booster, optimal charging even on short journeys

The VOTRONIC charging boosters ensure optimal and fast charging of the auxiliary battery from the alternator while driving. Unlike a simple relay, the charging voltage is increased to the value required for the respective battery type for a full charge and demanded by battery manufacturers. This allows the full charging current to flow and considerable amounts of current to be charged into the battery in a short time. Long charging lines and losses, as well as voltage fluctuations at the alternator, are cleanly regulated.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard! Quality - Made in Germany - !

The charging converters thus provide the well-known high quality of battery charging of VOTRONIC chargers even while driving. The intelligent microprocessor-controlled charging with "IU1oU2" charging characteristics and dynamic charging time calculation automatically ensures fast and gentle full charging as well as subsequent charge maintenance of the connected batteries from any state of charge, and always allows simultaneous power supply to consumers in parallel with the auxiliary battery.

• Votronic products "Made in Germany"
• High charging power even on short journeys
• Significantly improved energy balance of the supply circuit
• Optimal charging curve for LiFePO4 battery adjustable via battery selector switch
• Charges lead-acid batteries safely and reliably with suitable charging curves
• Built-in on-board network filter enables problem-free parallel operation with solar systems, mains chargers and other charging sources on one battery
• Automatic, adjustable power control ensures priority charging of the starter battery by the alternator when the vehicle's on-board network is heavily loaded, thus ensuring immediate starting capability of the vehicle
• Automatic, adjustable power control ensures priority charging of the starter battery by the alternator when the vehicle's on-board network is heavily loaded, thus ensuring immediate starting capability of the vehicle
• Easy installation, no intervention in the vehicle's starter circuit required, device is connected into the charging cable to the auxiliary battery
• Galvanically isolated: higher safety
• Built-in temperature compensation automatically adapts the charging voltage to the battery temperature, independently of the alternator; battery temperature sensor required
• Fully automatic continuous operation for constant readiness of the batteries
• Intelligent microprocessor control
• Control panel allows setting the battery type and displays the current status of the device
• The charging converters are also characterized by their compact design, low weight (high-frequency switching transformer, switch mode technology) and robustly dimensioned power components. 6 operating indicators provide information about the operating status of the device at all times.
• Recommended accessory: This device is compatible with remote control S (2075).

Documents & Downloads

• Manual
