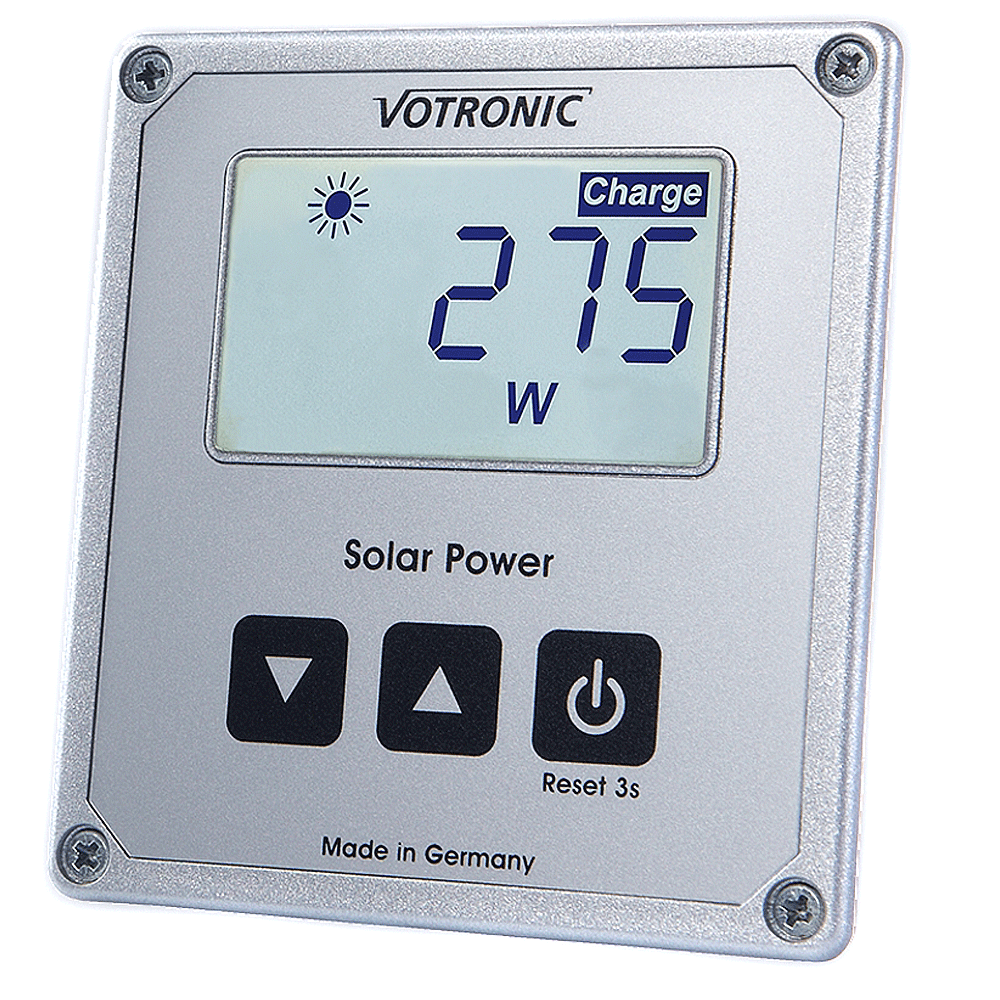

Votronic LCD Solar Computer S - for Solar Regulators 12V and 24V (SR and MPP) - 1250

Effective battery charging for motorhomes, caravans, boats and self-sufficient solar systems!

How much energy does my solar system actually provide? Are the solar modules shaded or dirty, or is something wrong? To answer these questions, VOTRONIC offers solar power meters that can be easily connected to VOTRONIC solar charge controllers of the SR and MPP series and immediately provide comprehensive information.
For Votronic Solar Charge Controllers from serial number: 13V01.000

The measured values are clearly displayed on the screen and easily operated at the touch of a button for better control and use of the solar system. The current solar power is always displayed as a bar graph, allowing for a quick check. The display is backlit (switchable) and very easy to read even from greater distances and in all lighting conditions.

The following values are measured:

• Current solar power (W)
• Current solar current (A)
• Current battery voltage (V)
• Charged solar capacity
• Charged solar energy
• Flashing warning display for under or overvoltage

Technical Data LCD Solar Computer-S

Current consumption	3mA
Current consumption illumination	30mA
Battery voltage	12/24V
Connection cable	5 meters
Operating temperature	-40°C to +55°C
Battery type	GEL, AGM, lead-acid
Dimensions	80 x 85 x 21 mm
Mounting dimensions	65 x 71 x 18 mm
Weight	0.06 kg
Datasheet	Download

Documents & Downloads

• Manual
