Votronic LED Remote Control S for Charge Converters - 2076
Item no.: WS303-1084
€50,95
🇩🇪 Ships from Germany
↺ 14-day returns
💬 Advice
Votronic LED Remote Control S for Charge Boost Converters
Suitable for current VCC 1212 series charge boost converters
The control LEDs show device status and charging progress, and the device switch serves specific device functions.
The remote control is designed as a panel version and visually and mechanically (same height 85 mm) aligns with the other displays of the VOTRONIC module system.
Compatible with the following products:
- Charge Converter VCC 1212-20 C
- Charge Converter VCC 1212-30
- Charge Converter VCC 1212-50
- Charge Converter VCC 1212-70
- Charge Converter VCC 1212-90
- Charge Converter VCC 1224-25
- Charge Converter VCC 1412-25
- Charge Converter VCC 2424-25
- Charge Converter VCC 1224-45
Note: For the VCC 1212-25, 1212-45 and 1212-45 Li, the remote control S (2075) is the suitable accessory!

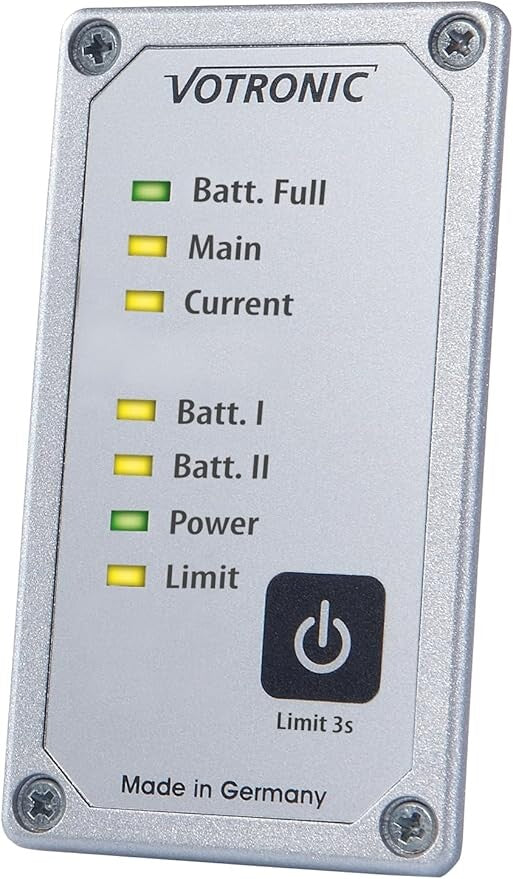

Votronic LED Remote Control S
| Technical Data | Votronic LED Remote Control S |
|---|---|
| Dimensions | 85x47mm |
| Installation Dimensions | 65x35 (max. depth 16 mm) |
| Weight | 23g |
| Test Mark | CE, E-Approval (EMC/Vehicle Directive) |
| Scope of Delivery | 5m connecting cable, plug-ready on both sides for device connection, mounting screws, drilling template |
