Votronic Minus Distributor 12 - 3208
Item no.: WS303-1088
€29,95
🇩🇪 Ships from Germany
↺ 14-day returns
💬 Advice

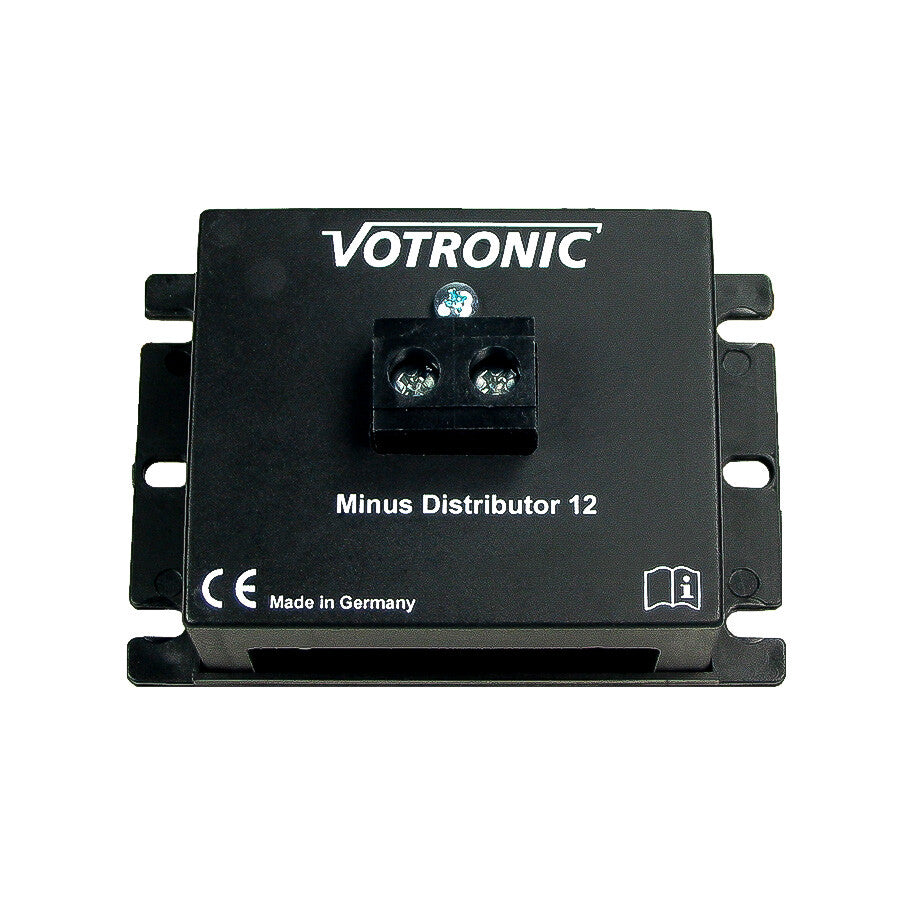

Votronic Minus-Distributor 12
Compact, powerful distributor on the battery's negative side for 12 individual circuits. Two large collection terminals (cable cross-sections up to 16 mm², current carrying capacity max. 50 A) serve to return current to the battery; they can also be used for further negative through-distribution.

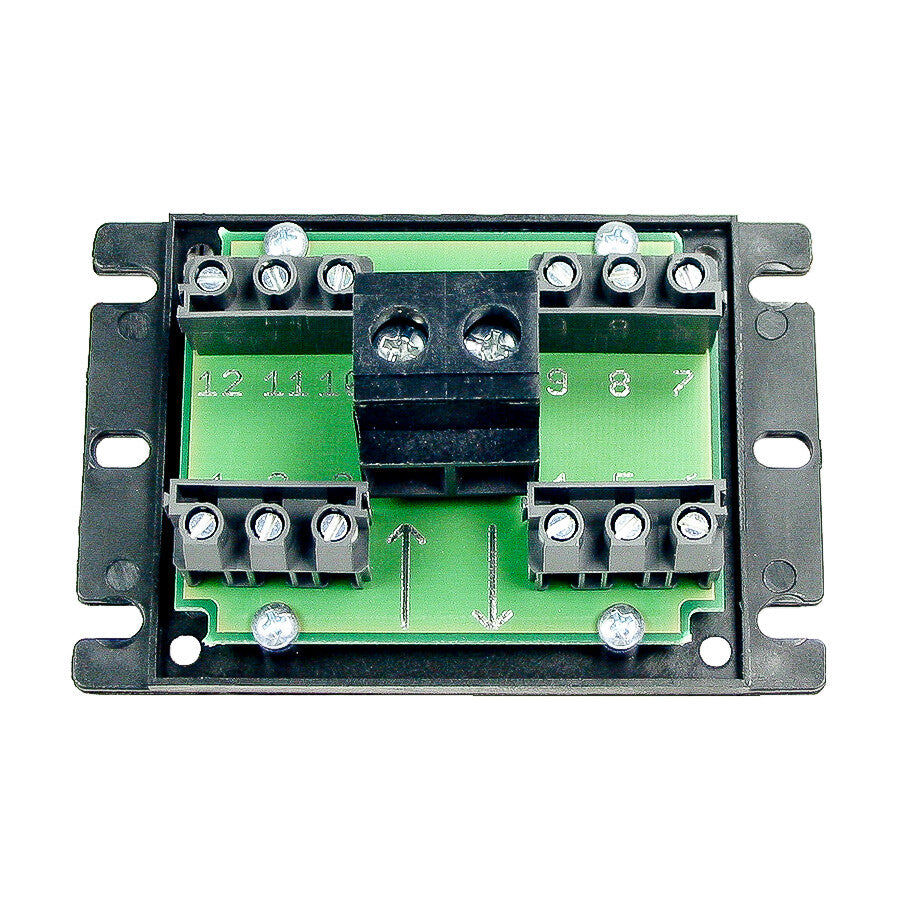

On the consumer side, 12 distribution terminals allow the connection of cable cross-sections up to 4 mm² with a max. current carrying capacity of 20 A. The Minus-Distributor 12 is particularly recommended for grounding in insulating (plastic) vehicle bodies or in situations with insufficient grounding. The cover ensures a clean appearance. Suitable for 12 V and 24 V operation.
| Technical Data | Minus-Distributor 12 |
|---|---|
| Battery Nominal Voltage | 12V / 24V |
| Dimensions | 90 x 38 x 60mm |
| Weight | 125g |
| Test Mark | CE, E-Approval (EMC/Vehicle Directive) |
| Scope of Delivery | 2x Cable lugs 16mm², Operating Manual |
| Operating Manual | Download |
