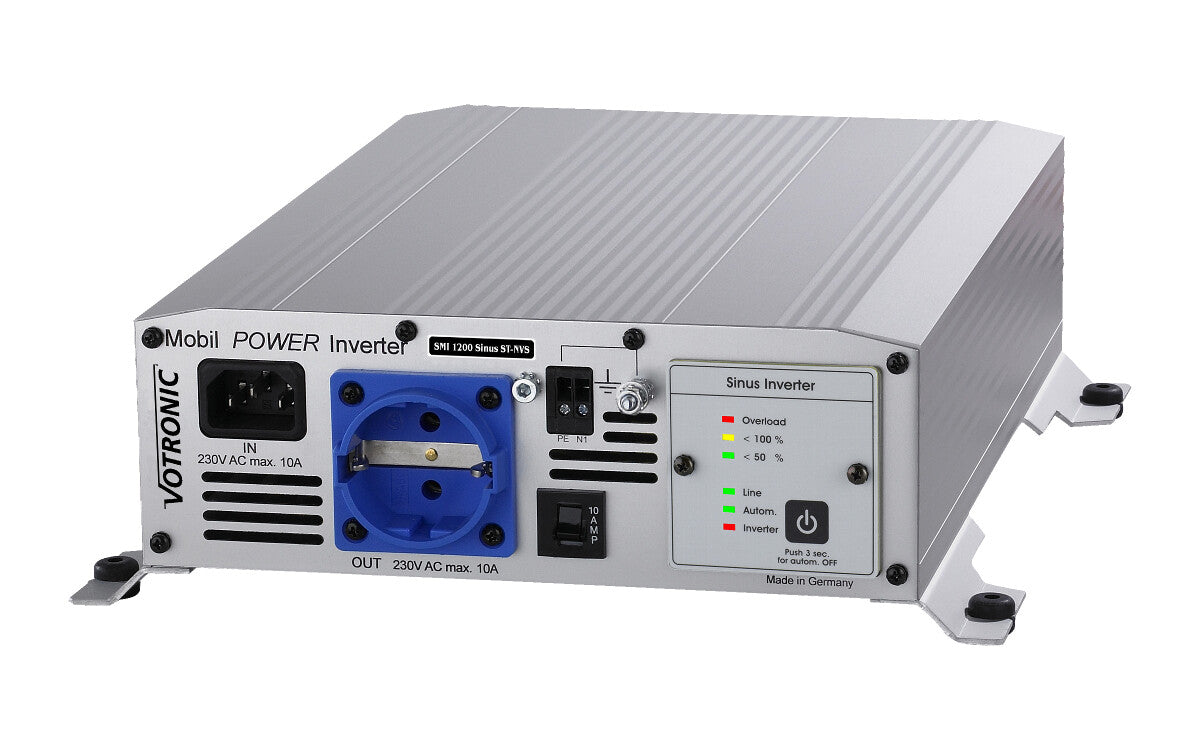

Votronic MobilPower Inverter SMI 1200 ST-NVS - 3178

Votronic Sinus Inverter 1200W NVS

Pure sine wave inverter for a stable 230V supply "Made in Germany"

The SMI 1200 NVS is a pure sine wave inverter, ideal for operating high-quality 230V consumers on board. The continuous output power is 1200 watts, which is sufficient for TVs, SAT receivers, video, computers/laptops, battery chargers, and even smaller household appliances (blenders, etc.). It is also perfectly suited for highly sensitive radio, reception, and medical devices.

The VOTRONIC MobilPOWER Inverters of the SMI SINUS series convert the battery voltage (12V DC) into a quartz-accurate and pure sinusoidal 230V AC voltage for operating all mains-powered devices. They are designed for continuous operation in emergency and special vehicles, high-quality motorhomes, and for OffGrid systems, constructed with state-of-the-art Switch Mode technology, compact and lightweight, and feature high output power with low consumption.

An intelligent power-saving control with automatic shutdown allows for both the undisturbed operation of powerful 230V consumers and small sensitive devices with minimal battery consumption. Numerous integrated protection circuits, robust power electronics, and intelligent microprocessor technology ensure very high overload capacity (consumer inrush currents) with high operational safety, even under adverse operating conditions for a long time. The detachable control panel can be conveniently mounted depending on the device's installation position or even moved into the cabin as a full remote control (5 m connection cable included).

Six LEDs show not only the operating status but also the power range the device is currently in. Of course, the device can also be completely switched on and off via the remote control.

A special feature of the NVS series is the integrated mains priority circuit. It ensures that when shore power is available, the mains sockets in the vehicle are automatically supplied with shore power, and the inverter switches off completely, thus no longer drawing power from the battery.
If the vehicle is disconnected from external power, the inverter automatically (adjustable) resumes supplying the 230V consumers.

Cutting-edge technology Made in Germany at the absolute latest state of the art

Further special features at a glance:

• Output voltage with mains quality (pure sine wave)
• Compromise-free and problem-free, interference-free operation of all mains-powered devices, e.g., medical devices, radio, laptop, PC, TV, SAT, TFT, refrigerator, vacuum cleaner, etc.
• Control panel can be rotated 360° and used as a remote control
• Mains priority circuit (NVS) protects the battery when shore power is available, as power is routed directly to consumers
• Switch-mode technology
• Compact, lightweight, robust, and reliable
• Selectable power-saving mode: continuous operation, automatic standby with automatic search for switched-on consumers
• Automatic shutdown in case of battery over/undervoltage, overload, overheating, etc.
• Power and temperature-controlled comfort cooling fan with stepless speed control
• Integrated mains priority circuit with overload protection 10A circuit breaker
• Screw terminals for battery connection (additional cable required!)
• Made in Germany

Powerful inverter that leaves nothing to be desired!

The SMI 1200 NVS not only looks good, but like all Votronic devices, it is also at the absolute latest state of the art. This includes speed-controlled silent fans as well as the standby function or the automatic shutdown of the device when not in use for extended periods. Via the remote control with LED monitoring, the SMI 1200 NVS can not only be monitored and switched on or off at any point in your vehicle - it also indicates the power range in which it is operating.

Download Assembly and Operating Instructions

Technical Data:

Documents & Downloads

• Operating Instructions
• Datasheet
