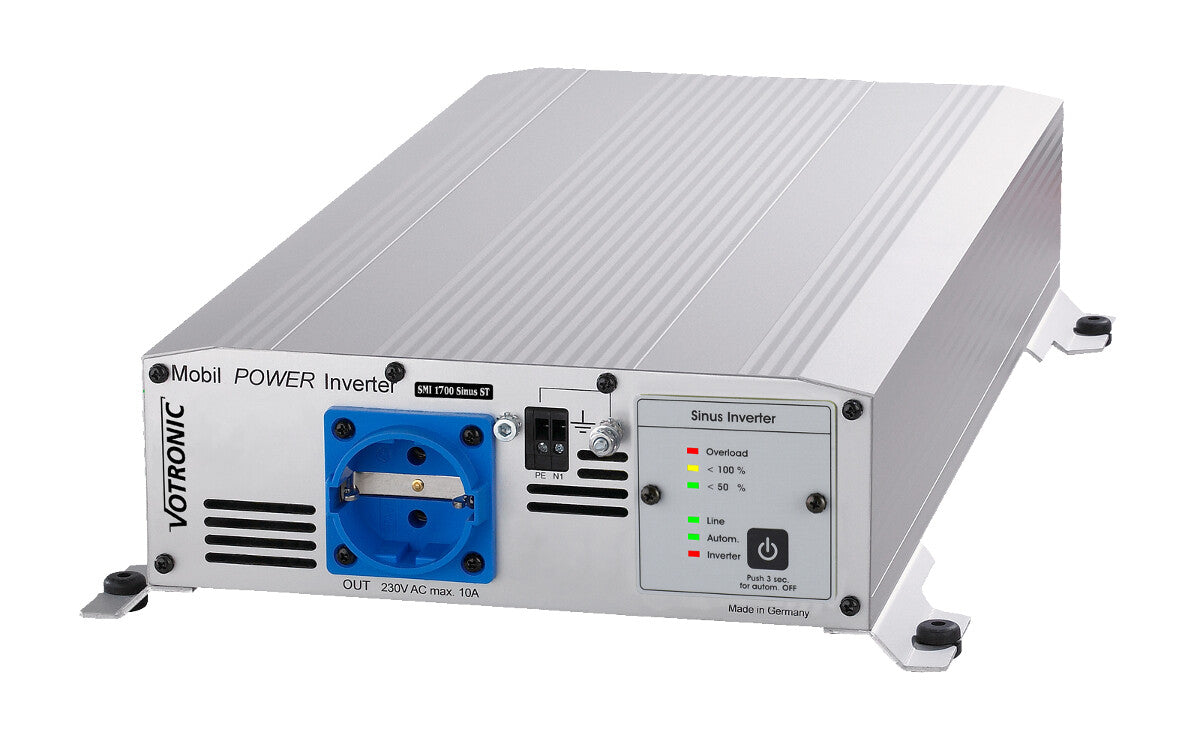

Votronic MobilPower Inverter SMI 1700 ST - 3183

Votronic Sinus Inverter 1700W

Pure sine wave inverter for a stable 230V supply "Made in Germany"

The SMI 1700 ST is a pure sine wave inverter, ideal for operating high-quality 230V appliances on board. The continuous output power is 1700 watts. Thanks to very high peak power, it can also be used for demanding loads with high inrush currents, such as air conditioners or vacuum cleaners. It is also excellently suited for highly sensitive radio, reception and medical equipment.

The VOTRONIC MobilPOWER inverters of the SMI SINUS series convert the battery voltage (12V DC) into a quartz-precise and pure sinusoidal 230 V alternating voltage (AC) for operating all grid-connected devices. They are designed for continuous operation in emergency and special vehicles, high-quality motorhomes and for OffGrid systems, constructed with state-of-the-art switch-mode technology, compact and lightweight, and feature high output power with low consumption.

An intelligent power-saving control with automatic shutdown enables both the undisturbed operation of powerful 230 V consumers and small sensitive devices with minimal battery consumption. Numerous integrated protection circuits, robust power electronics and intelligent microprocessor technology ensure very high overload capability (consumer inrush currents) with high operational safety even under adverse operating conditions over a long period. The detachable control panel can be mounted conveniently depending on the device's installation position or even relocated into the cabin as a full remote control (5 m connection cable included).

Six LEDs indicate the operating status as well as the power range in which the device is currently operating. Of course, the device can also be completely switched on and off via the remote control.

Cutting-edge technology Made in Germany

Further special features at a glance:

• Output voltage with grid quality (pure sine wave)
• Compromise-free and trouble-free, undisturbed operation of all mains-powered devices, e.g., medical devices, radio, laptop, PC, TV, SAT, TFT, refrigerator, vacuum cleaner, etc.
• Control panel rotatable by 360° and usable as a remote control
• Switch-mode technology
• Compact, lightweight, robust and reliable
• Selectable power-saving mode: continuous operation, automatic StandBy with automatic search for switched-on consumers
• Automatic shutdown in case of battery over/undervoltage, overload, overheating, etc.
• Power and temperature-controlled comfort cooling fan with stepless speed control
• Screw terminals for battery connection (additional cable required!)
• Made in Germany

Powerful inverter that leaves nothing to be desired!

The SMI 1700 ST not only looks good, but like all Votronic devices, it is also state-of-the-art. This includes speed-controlled silent fans as well as the stand-by function or the automatic shutdown of the device after a longer period of disuse. The SMI 1700 ST can not only be monitored and switched on or off at any point in your vehicle via the remote control with LED monitoring - it also indicates the power range in which it is operating.

Documents & Downloads

• Operating instructions
• Data sheet
