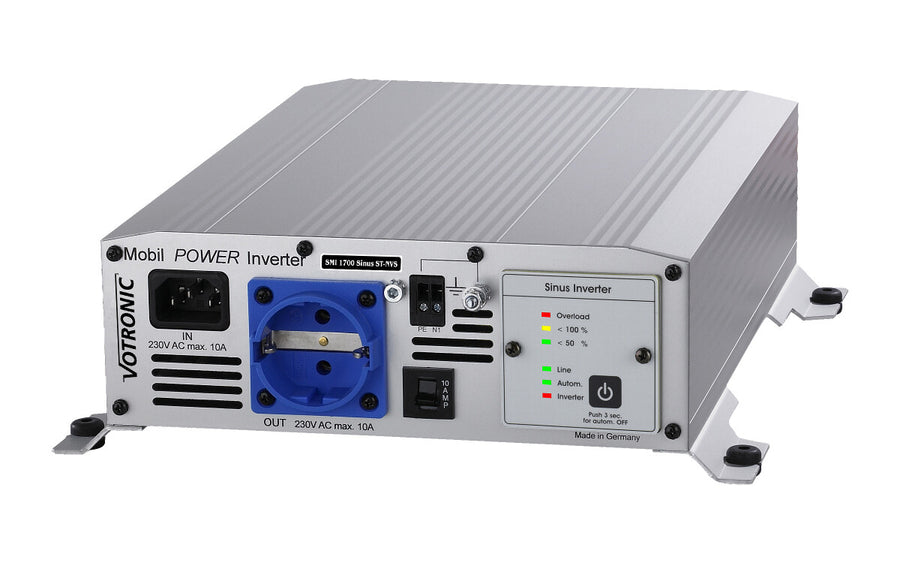

Votronic MobilPower Inverter SMI 1700 ST-NVS - 3184

Votronic Sine Wave Inverter 1700W NVS

Pure Sine Wave Inverter for a Stable 230V Supply "Made in Germany"

The SMI 1700 NVS is a pure sine wave inverter, ideal for operating high-quality 230V appliances on board. The continuous output power is 1700 watts. Thanks to its very high peak power, it can also be used for demanding loads with high starting currents, such as air conditioners or vacuum cleaners. It is also excellent for highly sensitive radio, reception, and medical devices.

The VOTRONIC MobilPOWER Inverters of the SMI SINUS series convert battery voltage (12V DC) into a crystal-clear, pure sine wave 230V AC voltage for operating all grid-connected devices. They are designed for continuous operation in emergency and special vehicles, high-quality motorhomes, and for OffGrid systems, built with state-of-the-art switch-mode technology, compact and lightweight, and feature high output power with low consumption.

An intelligent power-saving control with automatic shutdown allows for undisturbed operation of powerful 230V loads as well as small sensitive devices with minimal battery consumption. Numerous integrated protective circuits, robust power electronics, and intelligent microprocessor technology ensure very high overload capacity (consumer starting currents) with high operational safety even under adverse operating conditions for a long time. The detachable control panel can be mounted for user-friendly operation depending on the installation position of the device, or even routed into the cabin as a complete remote control (5 m connection cable included).

Six LEDs indicate not only the operating status but also the power range in which the device is currently operating. Of course, the device can also be completely switched on and off via the remote control.
A special feature of the NVS series is the integrated mains priority circuit. It ensures that when shore power is available, the sockets in the vehicle are automatically supplied with shore power, and the inverter switches off completely, thus no longer drawing power from the battery.
If the vehicle is disconnected from external power, the inverter automatically (adjustable) resumes supplying power to the 230V loads.

Cutting-edge technology Made in Germany at the absolute latest state of the art

Further special features at a glance:

• Output voltage with grid quality (pure sine wave)
• Uncompromising and problem-free, interference-free operation of all mains-powered devices, e.g., medical devices, radio, laptop, PC, TV, SAT, TFT, refrigerator, vacuum cleaner, etc.
• Mains priority circuit (NVS) protects the battery: Shore power is passed directly to the consumers if available
• Control panel rotatable by 360° and usable as a remote control
• Switch-mode technology
• Compact, light, robust, and reliable
• Selectable power-saving mode: continuous operation, automatic standby with automatic search for switched-on consumers
• Automatic shutdown in case of battery over/undervoltage, overload, overheating, etc.
• Power and temperature-controlled comfort cooling fan with stepless speed control
• Integrated mains priority circuit with overload protection 10A circuit breaker
• Screw terminals for battery connection (additional cable required!)
• Made in Germany

Powerful inverter that leaves nothing to be desired!

The SMI 1700 NVS not only looks good, but like all Votronic devices, it is also state-of-the-art. This includes speed-controlled silent fans as well as the standby function and the automatic shutdown of the device after a longer period of inactivity. Via the remote control with LED monitoring, the SMI 1700 NVS can not only be monitored and switched on or off at any point in your vehicle - it also indicates the power range in which it is operating.

Download Installation and Operating Instructions

Documents & Downloads

• Manual
• Datasheet
