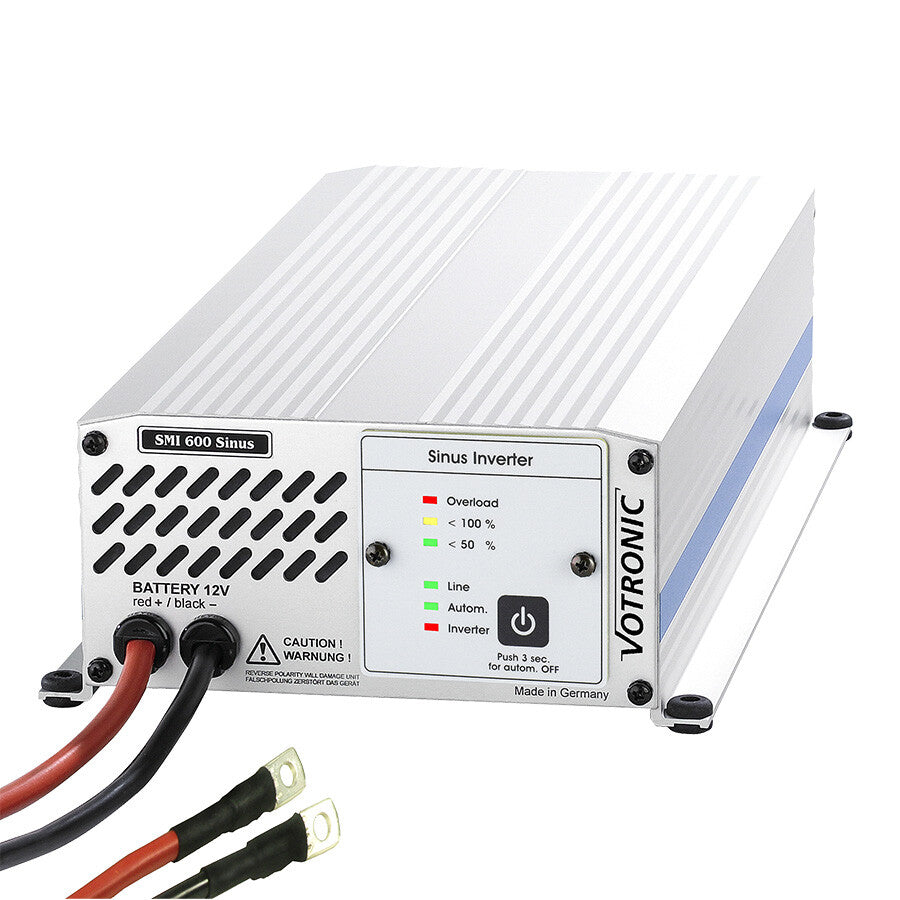

Votronic MobilPower SMI 600 - 3157

Votronic Sinus Inverter 600W

Pure sine wave inverter for a stable 230V supply "Made in Germany"

The SMI 600 SI is a pure sine wave inverter, ideal for operating high-quality 230V appliances on board. The continuous output power is 600 watts, which is sufficient for TVs, SAT receivers, video, computers/laptops, battery chargers, and even smaller household appliances (blenders, etc.). It is also excellent for highly sensitive radio, reception, and medical devices.

VOTRONIC MobilPOWER inverters of the SMI SINUS series convert battery voltage (12V DC) into a crystal-precise and pure sinusoidal 230 V AC voltage for operating all mains-powered devices. They are designed for continuous operation in emergency and special vehicles, high-quality motorhomes, and for OffGrid systems, built with state-of-the-art switch-mode technology, compact and lightweight, and feature high output power with low consumption.

Intelligent power-saving control with automatic shutdown enables undisturbed operation of powerful 230 V consumers as well as small sensitive devices with minimal battery consumption. Numerous integrated protection circuits, robust power electronics, and intelligent microprocessor technology ensure very high overload capacity (consumer inrush currents) with high operational reliability even under adverse operating conditions for a long time. The removable control panel can be conveniently mounted depending on the device's installation position or even relocated into the cabin as a complete remote control (5 m connection cable included).

Six LEDs indicate not only the operating status but also the power range in which the device is currently operating. Of course, the device can also be completely switched on and off via the remote control.

Cutting-edge technology Made in Germany

Further special features at a glance:

• Output voltage with mains quality (pure sine wave)
• Compromise-free and trouble-free operation of all mains-powered devices, e.g., medical devices, radio, laptop, PC, TV, SAT, TFT, refrigerator, vacuum cleaner, etc.
• Control panel rotatable by 360° and usable as a remote control
• Switch-mode technology
• Compact, lightweight, robust, and reliable
• Selectable power-saving mode: continuous operation, automatic StandBy with automatic search for switched-on consumers
• Automatic shutdown in case of battery over/undervoltage, overload, overheating, etc.
• Power and temperature-controlled comfort cooling fan with stepless speed control
• Integrated mains priority circuit with overload protection 10A circuit breaker (NVS series only)
• No additional battery connection cable required
• Made in Germany

Powerful inverter that leaves nothing to be desired!

The SMI 600 SI not only looks good, but like all Votronic devices, it is also state-of-the-art. This includes speed-controlled silent fans, as well as the Stand-By function or the automatic shutdown of the device after a long period of inactivity. Via the remote control with LED monitoring, the MT 600 SI can not only be monitored and switched on or off at any point in your vehicle - it also indicates in which power range it is operating.

Download Installation and Operating Instructions

Documents & Downloads

• Operating Instructions
• Data Sheet
