Votronic Switch Panel 4 S 12/24 V - 1288

Fuse Panels for On-Board Electronics

Switch electrical devices and protect circuits, individually assemble them according to your preferences, and label them clearly. These are the characteristics of these control and switching devices. Equipped with circuit breakers, the tedious search for the right spare fuse comes to an end. At the push of a button, operational readiness is restored.
Panels with a uniform height of 85 mm are offered to match the VOTRONIC module system, which can be used as individual units or in combination. The diverse application possibilities allow the user to assemble a complete information and control center.

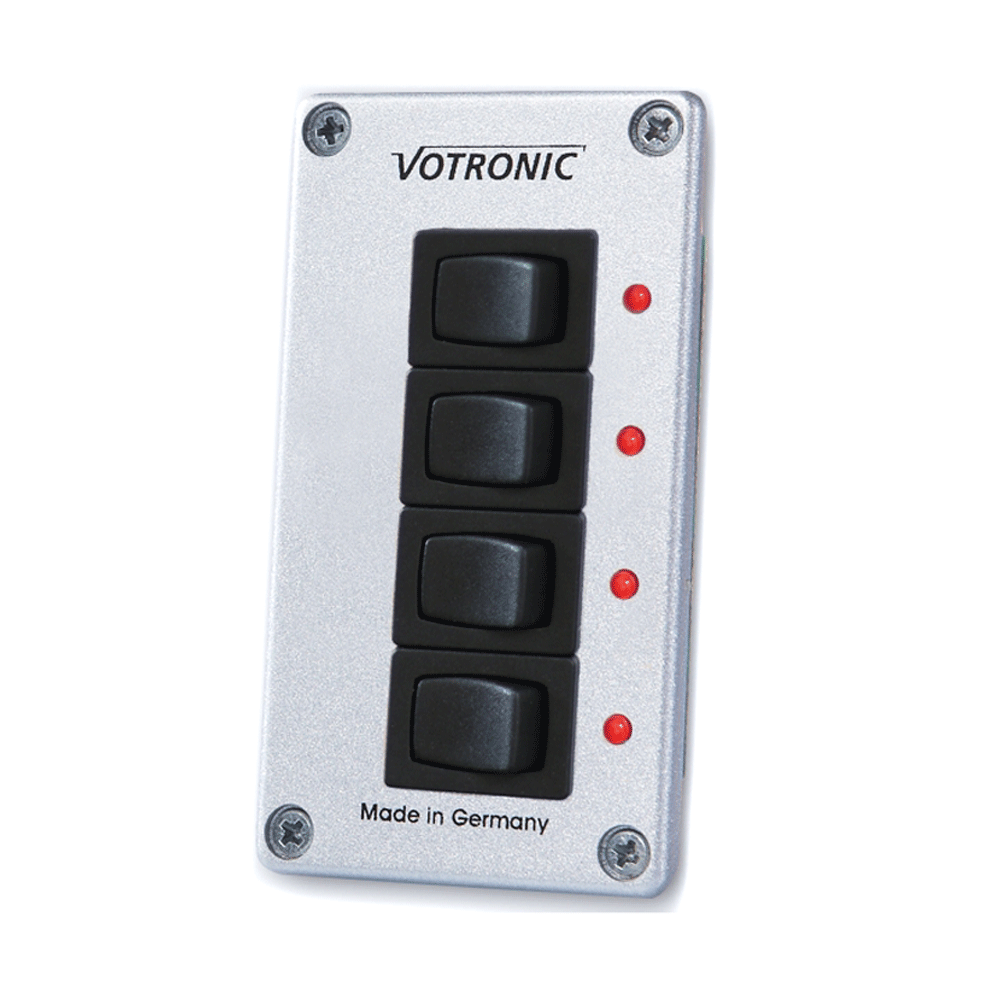

Switch Panel 4 S

• 4 ON/OFF switches, each with a load capacity of 8A, with control LED

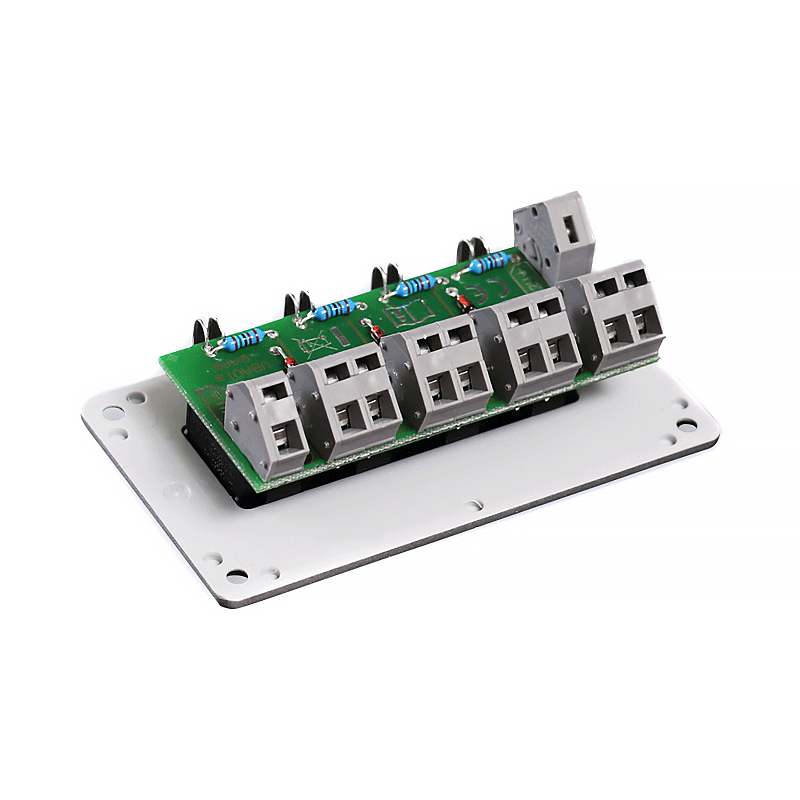

• Connection via screw terminals
• The connections are designed for cable cross-sections up to 4 mm²
• The VOTRONIC switch panel 4S 12/24 is suitable for both 12 V and 24 V




Documents & Downloads

• Data sheet
