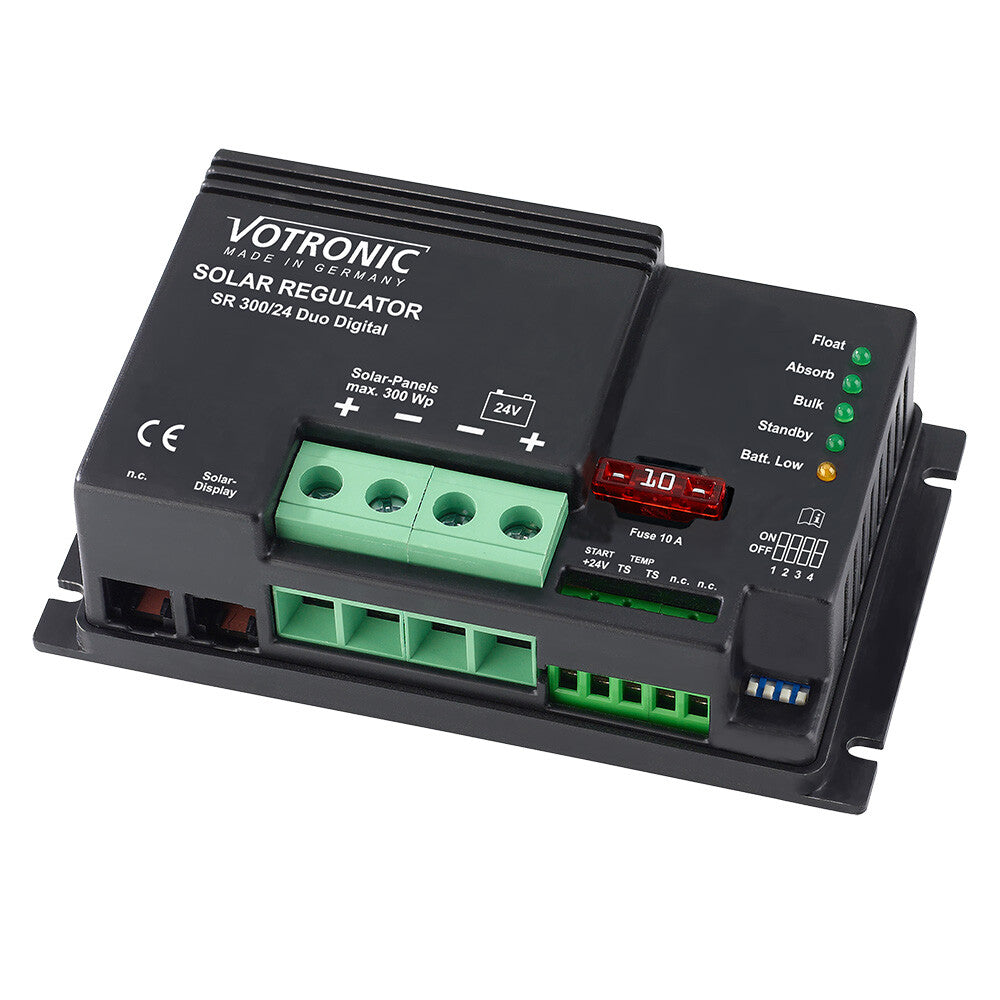

Votronic Solar Charge Controller SR 300/24 Duo Dig. - 6616

Reliable Solar Charge Controller from Votronic

Effective battery charging for motorhomes, caravans, boats and self-sufficient solar systems! VOTRONIC solar controllers are the link between the solar module and the battery, operate fully automatically and ensure optimal charging of the battery without overcharging.

Features at a glance:

• Main charging output I: Automatic charging of the leisure battery
• Auxiliary charging output II: Recharging and trickle charging of the starter battery
• Overcharge protection
• Gassing control
• Reverse current blocking
• On-board power filter
• Integrated temperature compensation
• For 24 V applications
• Reverse polarity protection
• Suitable for all battery types

A properly dimensioned solar system makes a motorhome, caravan or boat self-sufficient and consists of three components: solar module, solar charge controller and battery.

During the day, power consumption is immediately recharged, and at night, reverse discharge of the battery is prevented. The devices are characterized by high operational reliability. High-quality charging technology in conjunction with intelligent microprocessor control ensures precise adherence to charging voltages, currents and times. The main charging output with IU1oU2 charging characteristic can be optimally set for acid/wet batteries, gel or AGM/fleece batteries.

With the temperature sensor (recommended accessory) for battery temperature compensation, the charging voltage is automatically increased at low temperatures (winter operation), allowing the weakened battery to be charged better and faster. At summer temperatures, the charging voltage is lowered, thereby reducing the stress (gassing) on the battery and increasing the lifespan of gas-tight (e.g. gel) batteries. The second charging output has reduced voltage and current and serves for supporting charge and trickle charging of the vehicle's starter battery during long downtimes.

Technical data
