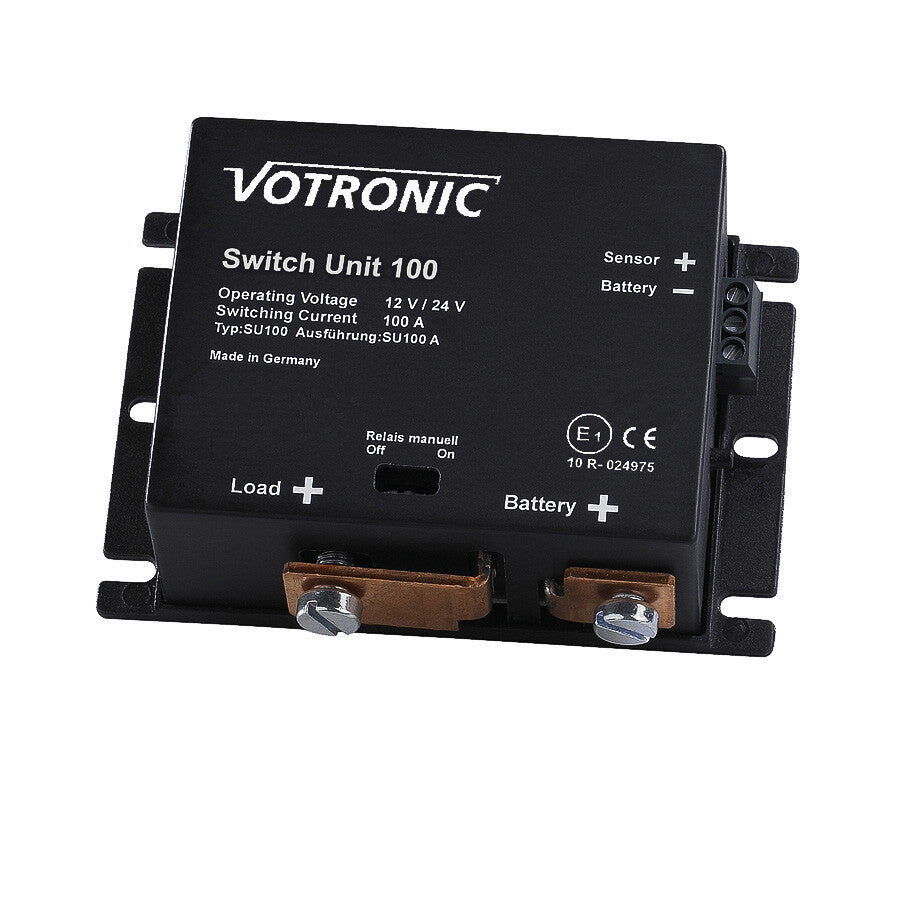

Votronic Switch Unit 100 - 2072

Switch Unit 100 12/24V 100-180A

The VOTRONIC Switch Units operate on the basis of a bistable power relay. Their own consumption is extremely low. They are particularly suitable as remote-controlled main switches or as load relays that are to remain switched on for a long time. The current carrying capacity is 40 or 100 A.

The Switch Units can be remotely controlled by a simple switch (1-pole ON / OFF).

In addition, the consumers can also be manually switched on or off at the relay via an EMERGENCY-ON function (EMERGENCY switch).

The range of application extends from motorhomes, boats to emergency vehicles:

• Simple control via a simple ON / OFF switch
• High switching currents, briefly highly overloadable
• Usable as a battery main switch via a simple ON / OFF switch (remotely controllable)
• Externally visible switching status indicator
• Electronic delay prevents too rapid reaction, e.g. voltage drops, switching on of strong consumers
• Suitable for continuous operation (very low self-consumption / compliant with EN13976).
• no self-power consumption when switched off via an external switch (remote control)
• Automatic shutdown at undervoltage 8.5 V (minimum operating voltage of the Switch Unit
