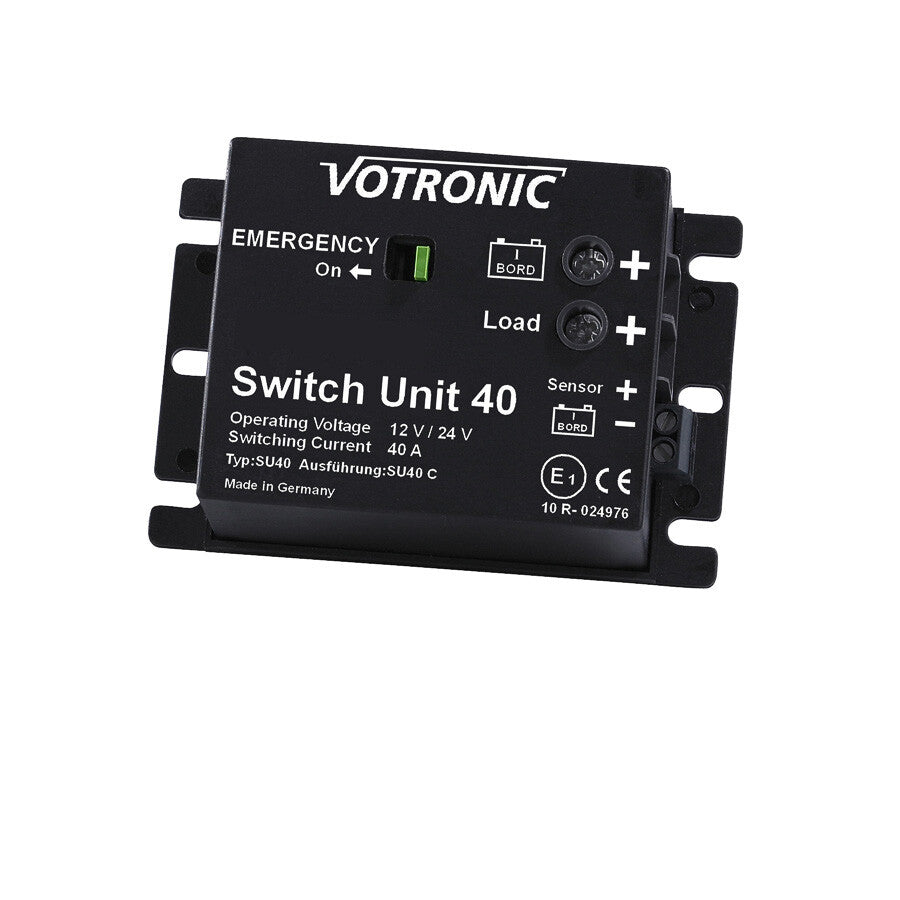

Votronic Switch Unit 40 - 2071

Switch Unit 40 12/24V 40-60A

The VOTRONIC Switch Units operate on the basis of a bistable power relay. Their self-consumption is extremely low. They are particularly suitable as a remote-controlled main switch or as a load relay that is intended to remain switched on for a long time. The current carrying capacity is 40 or 100 A.

The Switch Units can be remotely controlled by a simple switch (1-pole ON/OFF).

In addition, consumers can also be manually switched on or off at the relay via an EMERGENCY function (EMERGENCY switch).

The application range extends from motorhomes, boats to emergency vehicles:

• Simple control via a simple ON/OFF switch
• High switching currents, highly overloadable for short periods
• Usable as a battery master switch via a simple ON/OFF switch (remote controllable)
• Externally visible switching status indicator
• Electronic delay prevents overly fast reactions, e.g. voltage drops, switching on powerful consumers
• Suitable for continuous operation (very low self-consumption / compliant with EN13976).
• No self-current consumption when switched off via an external switch (remote control)
• Automatic shutdown in case of undervoltage 8.5 V (minimum operating voltage of the Switch Unit)
