Votronic Tank Sensor FL - 5530

Votronic Tank Sensor FL

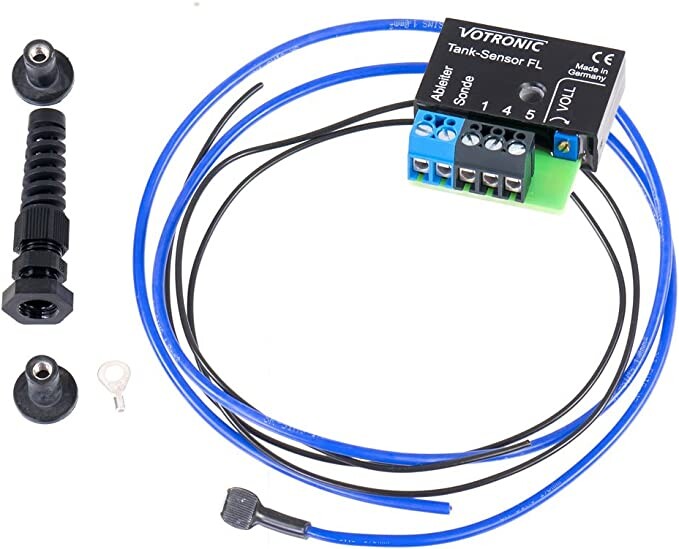

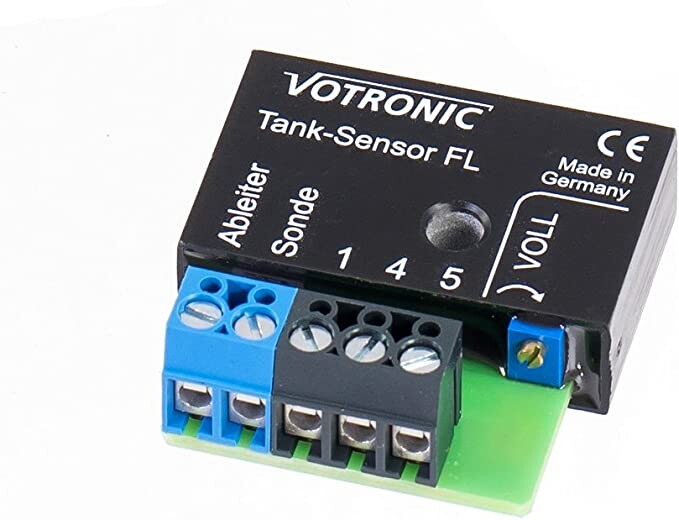

Tank sensor for plastic or metal tanks

The tank sensors measure the fill level in the tank and transmit the measured value with only 2 wires to the display unit. They are powered by the display unit with 12 V or 24 V and are de-energized when at rest. The potted electronics (IP 67) are also suitable for harsh operation on underfloor tanks and are frost-proof. All VOTRONIC tank sensors operate pressure-independently, i.e. there is no measurement distortion in case of overpressure in the tank, pressure refuelling or similar. Included is also the standard protection against reverse polarity, overvoltage, short circuit and overload.

Product Details

• Flexible rope probe, easy to shorten to tank height
• Only suitable for tanks with cleaning opening
• For plastic tanks: wall thickness max. 8 mm
• Connection via screw terminals

Documents & Downloads

• Operating instructions
