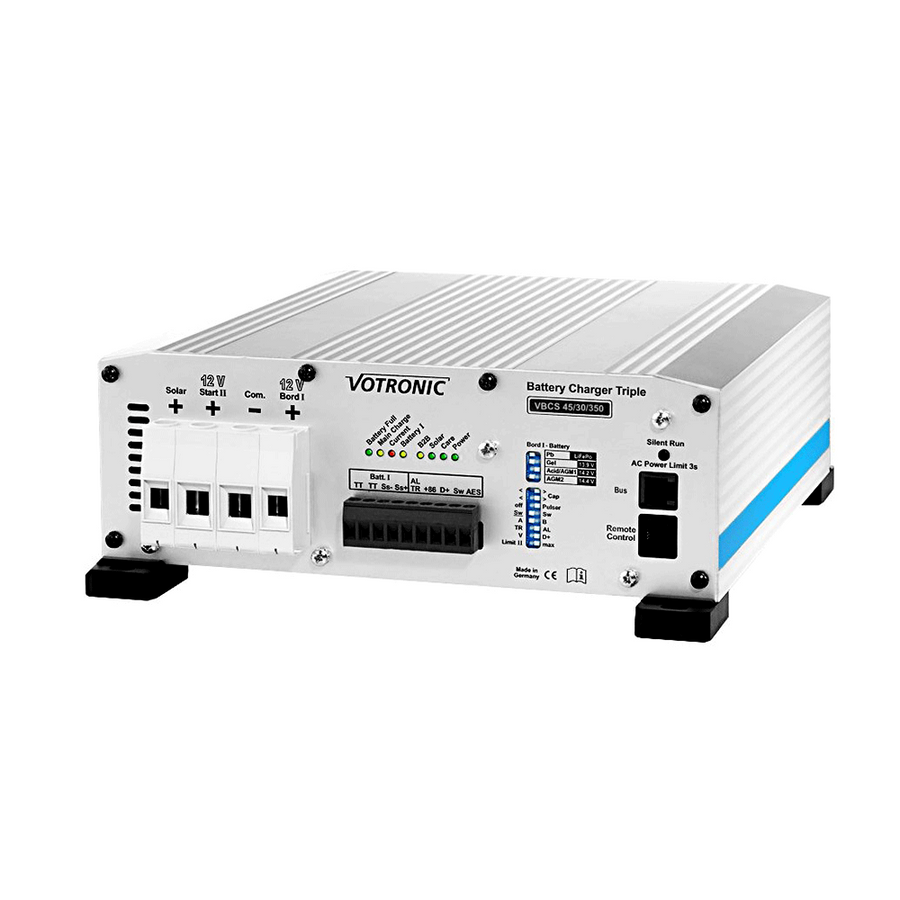

Votronic VBCS 45/30/350 CI-Triple Combination Unit - Charger/Controller/Converter/Device - 3244

Device combination of 30A mains charger, 45A charge converter, and 350 Wp MPP solar regulator including Battery Trainer

The Battery Charger VBCS Triple is a completely new device combination consisting of a Pb mains charger, VCC charge converter, and MPP solar regulator, ensuring power supply in motorhomes. The batteries are always charged automatically, whether while driving or at the pitch. The generously dimensioned charging power of the integrated charge converter, with 30, 45, or 60 A, ensures that the leisure battery is charged with full charging current even during short drives and is fully charged upon arrival at the destination.

The VBCS Triple series meets the quality, features, and functions of VOTRONIC individual devices and is characterized by its particularly compact and lightweight design. The devices contribute significantly to cost reduction and help save valuable space in the motorhome. Acquisition, installation, and connection wiring are reduced to a minimum, thus conserving valuable resources.

Designed for common battery sizes, three different device combinations are available. All devices are future-proof with 8 charging characteristics for lead-acid, gel, and AGM batteries, as well as for lithium LiFePO4 batteries. The integrated Battery Trainer keeps the leisure batteries fit during long periods of inactivity.

An LCD display and control panel specifically designed for this charging unit shows all important device information. In addition, the charger can be adapted to the power supply of the pitch.

Product features:

• Constant, fully automatic battery charging
• Integrated CI-BUS interface
• High operational reliability
• Fast, battery-friendly charging
• Integrated battery care
• Full charging power worldwide
• 8 charging characteristics for acid, gel, AGM, and LiFePO4 batteries
• Temperature sensor 825 included in delivery
• Robust technology and compact design
• Easy installation
• Short cable runs
• Optional: Plug and Play display and control panel LCD-Charge Control S

Recommended accessories: LCD-Charge Control S. This practical display panel can show a variety of information.
For example, active charging sources can be read, an AC power limit can be set, or voltages and currents in the system can be displayed.

Technical information VBCS 45/30/350

Mains Operation
Nominal Operating Voltage (AC) in [V]	110 to 230 / 45 - 65 Hz worldwide
Operating Voltage Range (AC) in [V]	90 - 270 (full charging power)
Max. Power Consumption (AC) in [W]	520
Charging Power Leisure/Starter Battery max. [A]	30.0 / 4.0
Switching Output for Engine Start Inhibitor	yes
Power Limit Function	yes
12 V / 12 V B2B Charge Converter Operation
Charging Power Leisure Battery max. [A]	45
Automatic Activation D+ / Ignition	yes
Starter Battery/Alternator Voltage Range (Euro 6) in [V] / max. Current [A]	10.5 - 16.0 / 63
Limit II max. Current Limitation (adjustable) in [A]	48
MPP Solar Charge Controller Operation
Solar Module Power (Pmax) in [Wp]	50 - 350
Solar Module Current max. [A]	21.0
Solar Module Voltage (Voc) max. [V]	36
Charging Current Leisure / Starter Battery max. [A]	25.5 / 5.0
Switching Output AES Refrigerator	yes
Starter Battery
Nominal Voltage [V] / Capacity min. [Ah] recommended	12 / > 80
Leisure Battery, IU1oU2oU3
Nominal Voltage Lead / LiFePO4 [V]	12 / 12.0 - 13.3
Battery Capacity, adjustable [Ah]	68 - 420
Device Mounting Position	any
Temperature Range [°C]	-20 to +45
Protection Degree/-Class	IP 21
Dimensions (WxHxD) in [mm] - Dimensions incl. mounting flanges, without connections	217 x 85 x 250
Weight [g]	2,850
