WAGO Connection Terminal Green Range flexible up to 4mm² - 221-422

WAGO Green Range Connecting Terminal with Lever – Series 221-422: Fast, Safe, and now More Sustainable

Even small changes can make a big difference – that's why the WAGO Series 221 connecting terminal has been revised. The new Green Range variant is partially made from bio-circular and recycled plastics, thus contributing to the conservation of natural resources. Without compromising on quality and safety, it remains the proven solution for fast, safe, and flexible electrical installations.

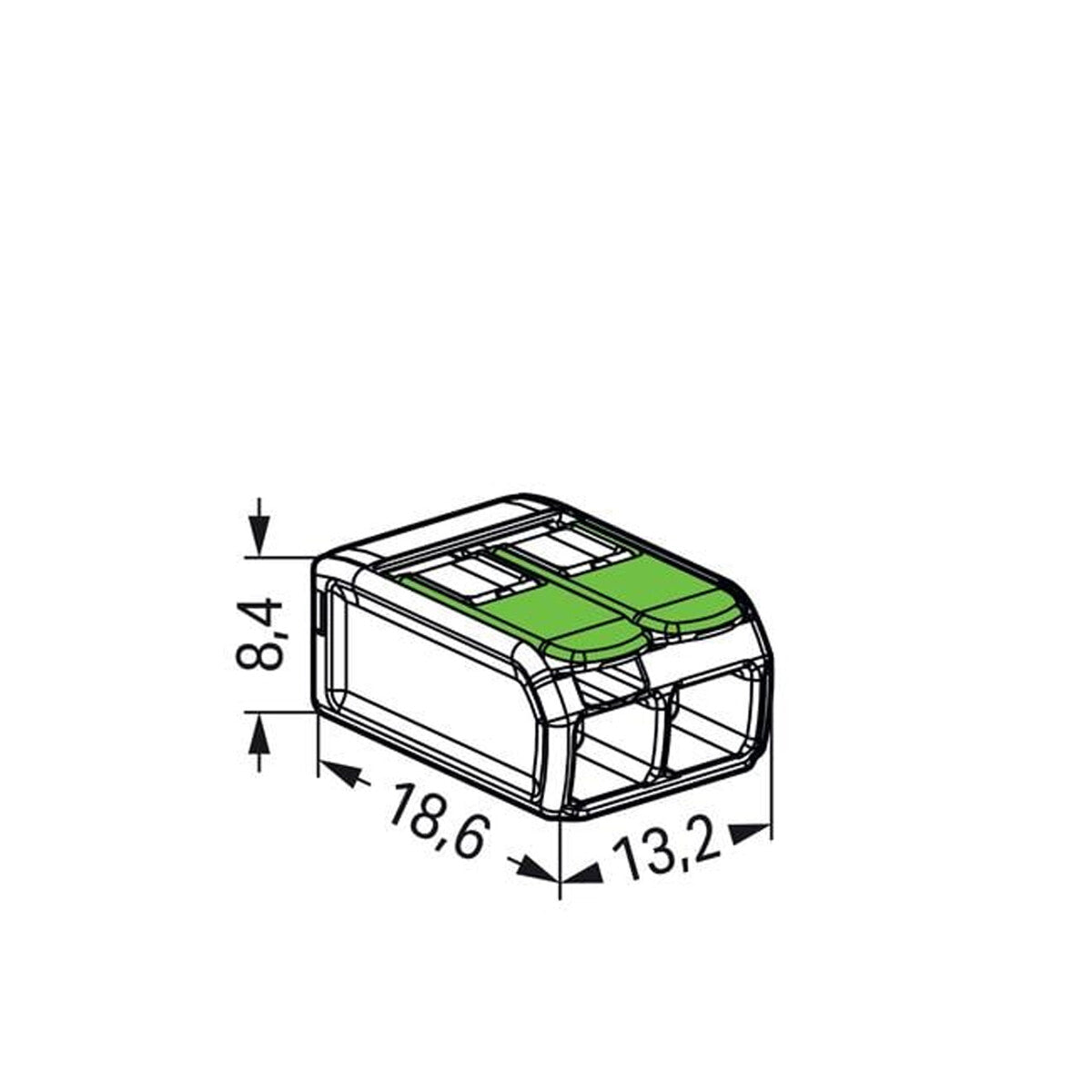

With a rated voltage of 450 V and a current carrying capacity of up to 32 A, the terminal is ideal for a variety of applications. Thanks to innovative CAGE CLAMP® technology, conductors can be connected without tools, eliminating the need for pre-treatment or ferrule sleeves. The compact dimensions (13.2 x 8.4 x 18.6 mm) allow for space-saving installation, while the transparent housing ensures quick visual inspection. The terminals in this series have two conductors, meaning two clamping points, and come in a pack of 100.

Your Advantages at a Glance:

• Fast & Easy Installation – tool-free connection with lever mechanism
• Universally Applicable – for solid, stranded, and fine-stranded conductors (0.2 mm² to 4 mm²)
• Durable & Safe – maintenance-free CAGE CLAMP® technology for permanent connections

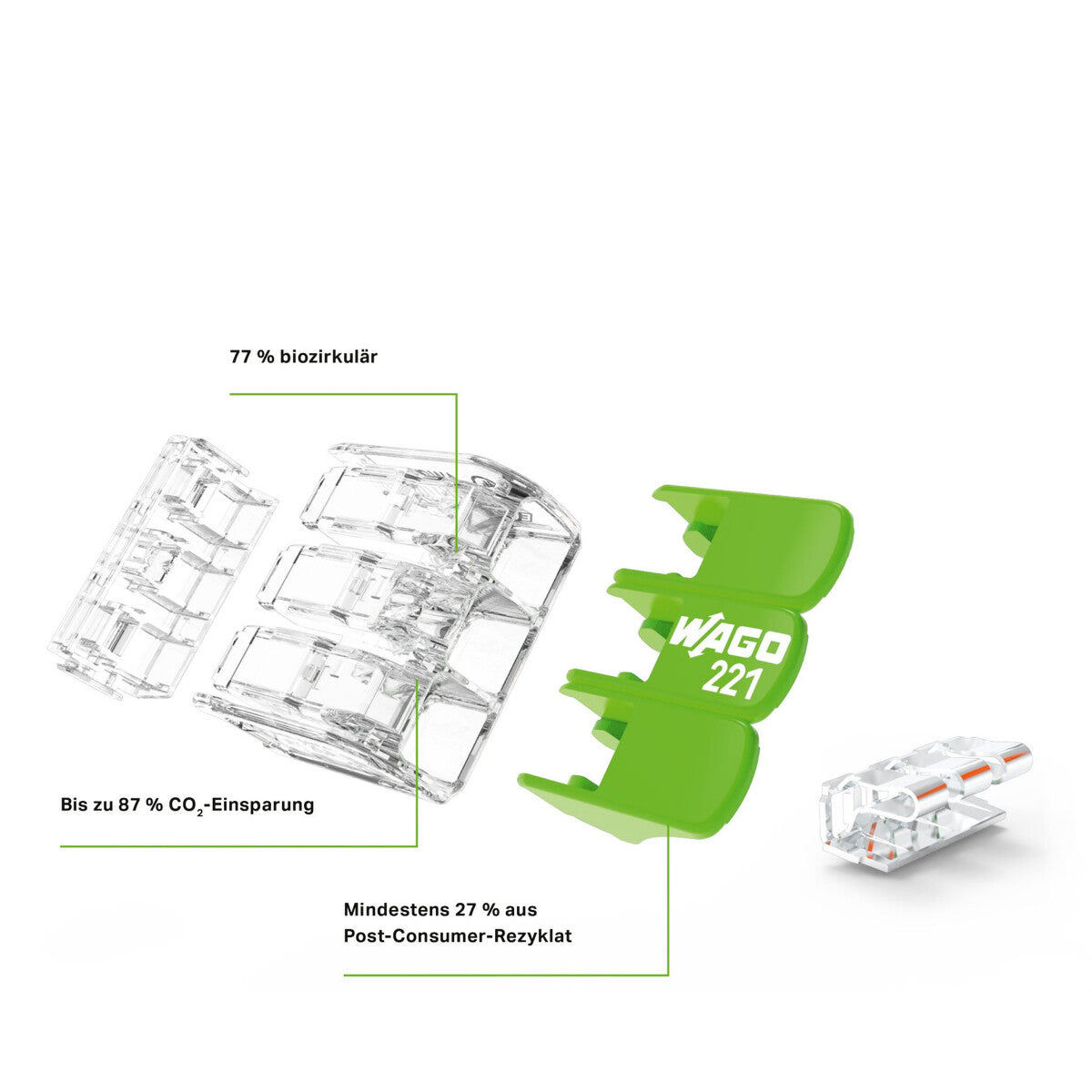

• Sustainable Materials – contains recycled plastics (e.g., from PET bottles) and bio-based residues
• Conservation of Fossil Resources – through the recycling of existing materials
• Certified Quality – identical performance to the classic Series 221

How does wiring with WAGO terminals work?

WAGO terminals are very small and compact. Due to their extremely small dimensions, they are ideally suited for tight spaces. This makes the terminals very convenient to install and also creates space for potential expansions. Operation is intuitive, and connecting conductors is quick and easy. The levers can be opened and closed with little effort. Thanks to side grips, WAGO terminals are firmly held in any situation. The procedure for connecting conductors is as follows:

1. Strip the desired conductors
2. Open the WAGO terminal with the lever
3. Insert the conductors
4. Close the lever

The transparent housing allows you to constantly check the conductor position. The contact point is gas-tight, ensuring a permanently secure connection between the conductor and the busbar. Two easily accessible test ports (one located in the direction of the conductor connection and the other on the opposite side) make testing conditions very comfortable, even when installed. The application is suitable for ambient temperatures of up to 85 °C, and the maximum terminal temperature according to UL standard is 105 °C. WAGO terminals have globally recognized approvals. If you want to disconnect conductors, this is also easily possible. As with insertion, the lever is opened, and the cable is removed.

Areas of Application for WAGO Terminals

Connecting cables is one of the most common tasks when connecting electronic devices in the home, outfitting a camper, or installing solar modules. Since WAGO terminals can connect both stranded and solid conductors, their range of applications is versatile. In addition, the terminals can be used with any cable cross-section, making them flexible and compatible with any application. Two application examples include connecting solar modules to charge controllers or connecting consumers to a battery.

With the Green Range, WAGO is committed to more sustainability in electrical installations without compromising on quality and performance.

Documents & Downloads

• Datasheet Green Range 221-422
