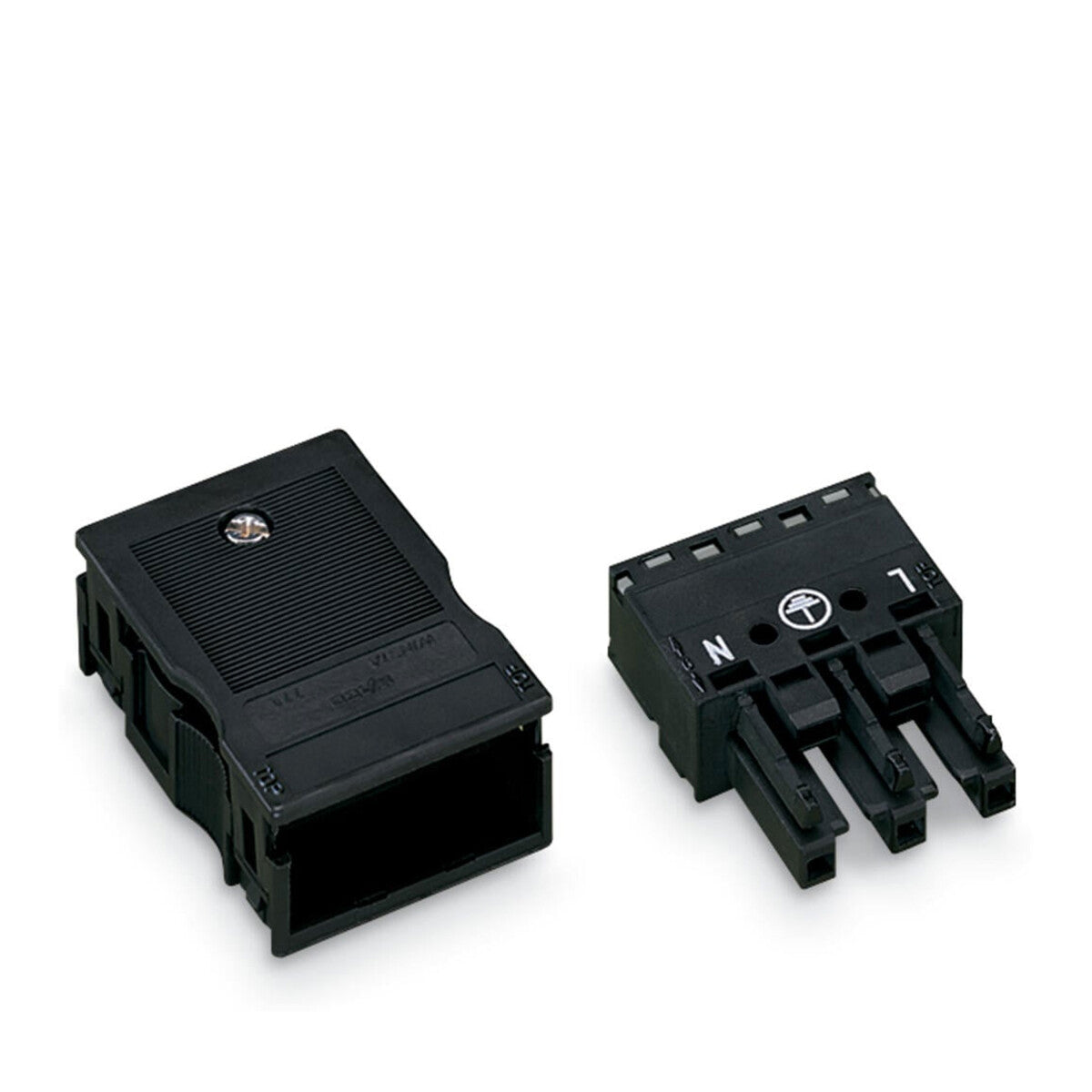

WAGO WINSTA® MIDI Socket, 3-pole

WINSTA® MIDI Female Connector with Coding A – Plug-in Connection Including Strain Relief Housing (2-Part)

The WINSTA® MIDI female connector with Coding A is your plug-in, mis-mating protected solution for safe electrical installations up to 25 A – and is supplied as a 2-part set including a strain relief housing. This means you receive not only the actual female connector, but also the matching strain relief housing for a mechanically secure and standard-compliant installation, e.g., in control cabinets, on PCBs, or for luminaire connections.

Direct Overview of the Most Important Technical Data

• Current Rating: up to 25 A
• Coding: A (mis-mating protected)
• Strip Length: 55 mm
• Connection Type: Push-in CAGE CLAMP®
• Scope of Delivery: 2 parts including strain relief housing
• Application Areas: Control cabinet, PCB, luminaire connection, automation

2-Part Set Including Strain Relief Housing – for Maximum Safety

With this item, you receive a complete, 2-part unit: the WINSTA® MIDI female connector and the matching strain relief housing. The strain relief housing ensures that connected cables are mechanically relieved and no tensile forces act directly on the clamping point. This increases operational safety, permanently protects the connection, and supports a standard-compliant execution of your installation.

Especially for moving cables or in installations with increased mechanical stress, you benefit from this well-thought-out solution.

Plug-in Electrical Installation for More Speed & Precision

With the WINSTA® MIDI connector system, you can plan your installation in a structured, repeatable, and without unnecessary assembly effort. Coding A reliably prevents mis-mating – a clear advantage when installing multiple identical units, e.g., for grid luminaires or modular systems.

The plug-in design significantly reduces assembly times and simplifies later maintenance or service work. Components can be quickly exchanged without having to undo complete wiring.

Push-in CAGE CLAMP® – Maintenance-Free & Efficient

The proven Push-in CAGE CLAMP® technology allows for particularly easy handling: insert conductor, let it snap in – done. You do not need any special tools and achieve a permanently secure, vibration-resistant connection.

The system is designed to be maintenance-free and is ideal for applications where reliability and durability are paramount.

Versatile in Power Distribution & Automation

Whether in classic control cabinet construction, for PCB connections, or in building and industrial automation – this WINSTA® MIDI female connector with Coding A offers you maximum flexibility. Control lines, load circuits, or modular assemblies can be connected clearly, space-saving, and systematically.

Thanks to the modular WINSTA® MIDI concept, you always maintain an overview, even with larger installations.

Your Advantages at a Glance

• 2-part set including strain relief housing
• mis-mating protected by Coding A
• maintenance-free Push-in CAGE CLAMP® technology
• fast, structured & scalable electrical installation
• suitable for power applications up to 25 A
• ideal for control cabinet construction, luminaire connections & automation

Reliable, Well-Thought-Out, and Easy to Assemble

With the WINSTA® MIDI female connector with Coding A, you choose a professional, plug-in connection system – including a strain relief housing for additional mechanical safety. Ideal if you value an efficient, standard-compliant, and durable electrical installation – from individual projects to series production.

Documents & Downloads

• Datasheet Winsta MIDI Female Connector
• Technical Drawing 1
• Technical Drawing 2
