HomeRecovery & Rescue › WARN Winch DC4000 12V, 1,814kg, incl. control, OLI, remote control
Winch ropes

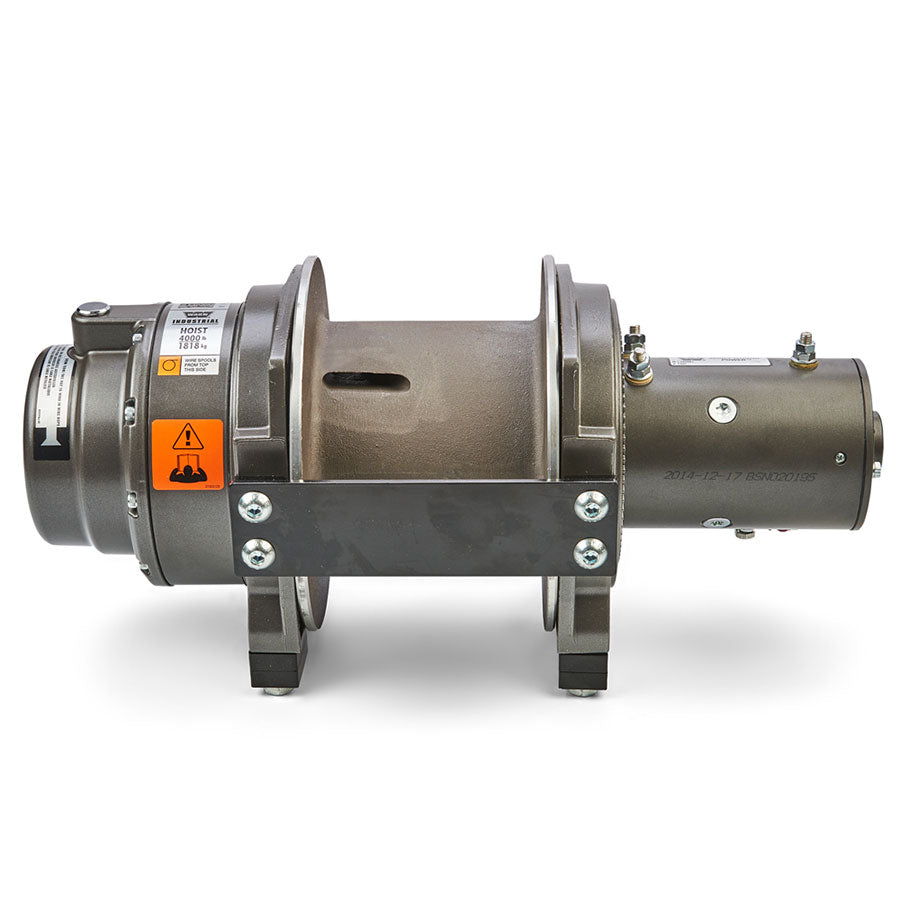

WARN Winch DC4000 12V, 1,814kg, incl. control, OLI, remote control

Item no.: TR1-89833-OLI
€7.145,95
Available again soon
🇩🇪 Ships from Germany
14-day returns
💬 Advice
Set includes:
  • OLI (overload protection)

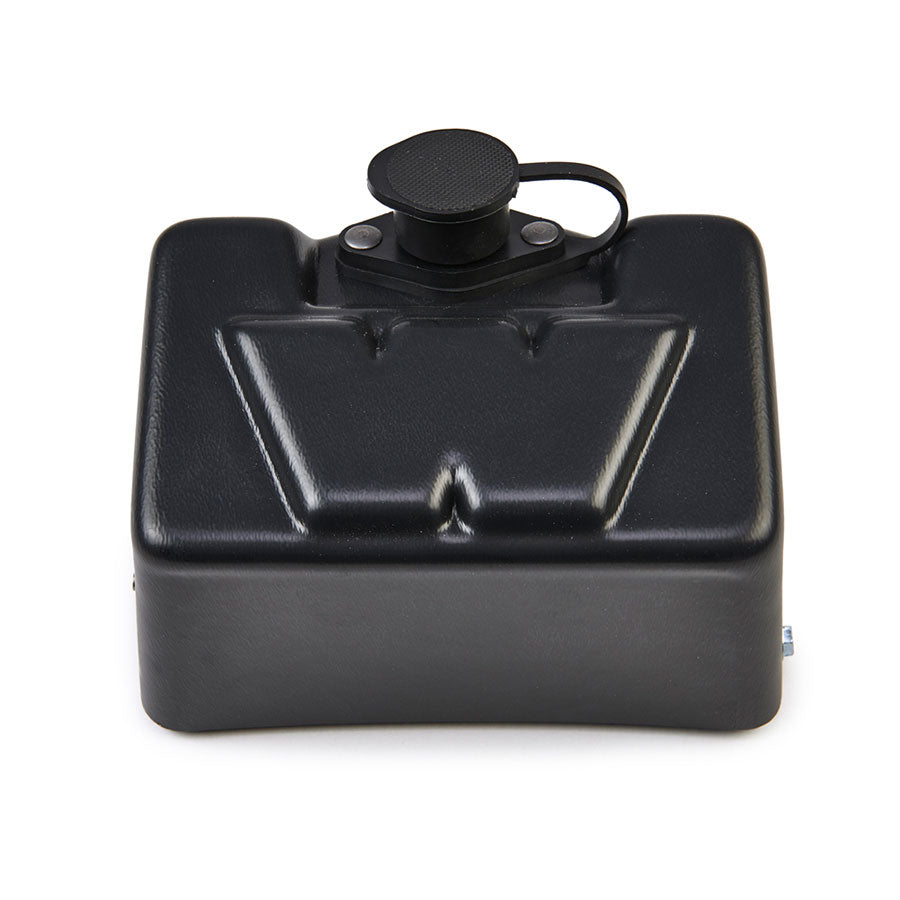

  • Contactor box

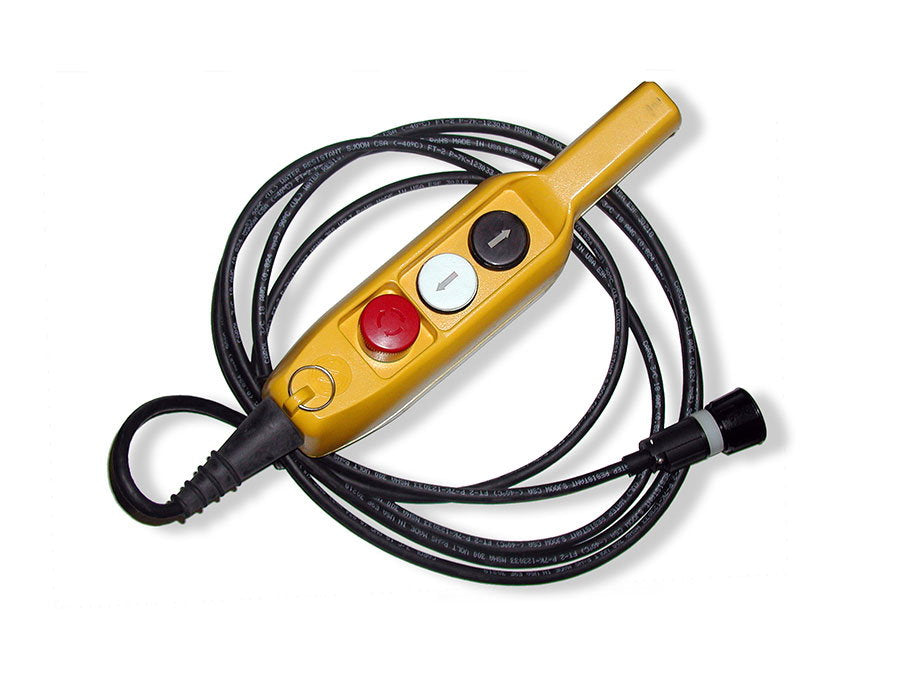

  • Remote control 3.7m, incl. emergency stop
  • Steel cable 25m x 8.5mm, MBK 67kN

The DC4000 combines a powerful, series-wound DC motor with a robust seal and our proven 3-stage all-metal gear train. Permanent grease lubrication ensures years of trouble-free operation. All WARN hoisting winches are equipped with an automatic mechanical brake that holds the full rated load. The durable powder coating withstands the elements and looks good. The DC4000 is based on robust WARN large frame construction with a cast aluminum drum, which ensures high rope capacity. Controls and accessories are sold separately.

Please note:
If no different setting values for load limitation are specified, the default value for the maximum load will be set. However, this value is strongly influenced by the power supply. A deviation of around 10% is the norm!

Specifications

  • Modell: DC4000
  • Spannung: 12V Volt
  • Zugkraft: 1.814 kg
  • Steuerung: Kontaktor
  • Funkfernbedienung: nein
  • Kabelfernbedienung: ja, 3,7m
  • Getriebe: 3-stufiges Planetengetr.
  • Übersetzung: 315:1
  • Bremse: Scheibenbremse
  • Trommelmaße: 25, x 16,3 cm
  • Gewicht: 40 kg
  • Seilmaterial: Stahl
  • Seillänge: 25 m x 8,5 mm
  • Batteriekabel: - m
  • Maße (LxTxH): - x - x - mm
  • Lochbild: 203 x 114,3 mm
