HomeRecovery & Rescue › WARN VR EVO 10 24V Winch, 4,536 kg (10,000 lbs) Pulling Capacity, without Rope, incl. OLI
cable winches

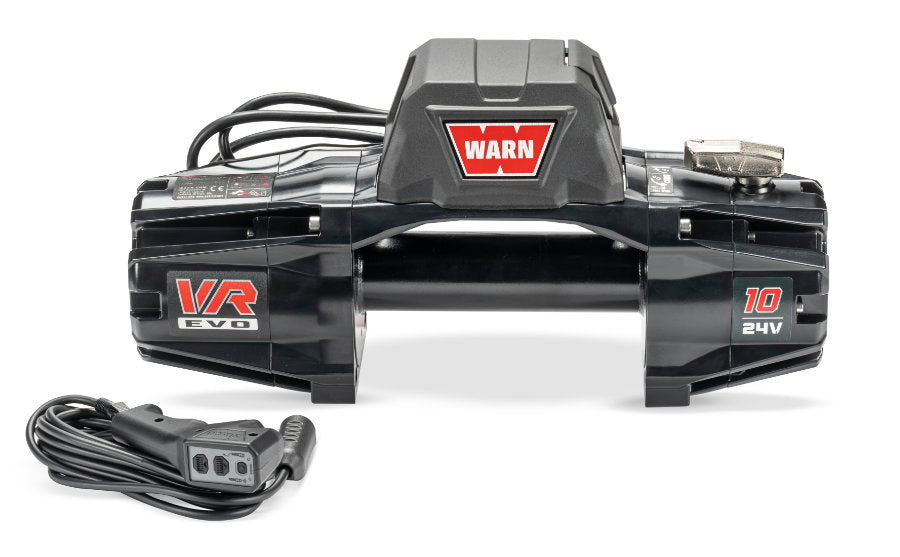

WARN VR EVO 10 24V Winch, 4,536 kg (10,000 lbs) Pulling Capacity, without Rope, incl. OLI

Item no.: TR1-110124-OLI
€1.713,95
Available again soon
🇩🇪 Ships from Germany
14-day returns
💬 Advice
incl. OLI GEN II overload protection

Battery info:
  • Type group: Non-rechargeable battery
  • Chemical system: Lithium


For this winch, we recommend the following ropes:
  • Synthetic rope set 27m x 9.4mm incl. aluminum hawse (silver) 10-1190391
  • Synthetic rope set 27m x 9.4mm incl. aluminum hawse (black) 10-1190399

Please note:
If no different setting values for load limitation are specified, the default value for the maximum load will be set. However, this value is strongly influenced by the power supply. A deviation of around 10% is the norm!


The "VR EVO" winch from WARN replaces the "TABOR" series, which has been popular for years, and offers many innovations compared to the previous model.

Features:
  • IP68 tested (winch only)
  • Faster rope speed under load with lower amperage consumption *
  • Higher pulling force per rope layer *
  • 2-in-1 wired & wireless remote control for full control in all operations
  • Centrally routed cable outlet in the middle of the contactor
  • Reinforced connection plate for higher stability
  • Reliable contactor control
  • Modern & functional design

* compared to the Tabor series

Specifications

  • Modell: WARN VR 10
  • Spannung: 24 Volt
  • Zugkraft: 4536 kg
  • Steuerung: Kontaktor
  • Funkfernbedienung: nein
  • Kabelfernbedienung: ja, 3,5m
  • Getriebe: 3-stufiges Planetengetr.
  • Übersetzung: 218:1
  • Bremse: Feder auto.
  • Trommelmaße: 6,7 x 23 cm
  • Gewicht: 26,8 kg
  • Seillänge: - m x - mm
  • Batteriekabel: 2 m
  • Seilfreilauf: manuell
  • min. Kaltstartstrom Batterie: 650 CCA
  • Befestigungsschrauben: ja
  • Maße (LxTxH): 534 x 160,5 x 256 mm
  • Lochbild: 254 x 114,3 mm
