Home › Recovery & Rescue › WARN ZEON 10 24V Winch, 4,536 kg pulling capacity, rope not included, incl. OLI
cable winches
Features:
We recommend the following ropes for this winch:
Please note:
If no deviating settings for load limitation are specified, the standard value for maximum load will be set. However, this value is strongly influenced by the power supply. A deviation of around 10% is the norm!

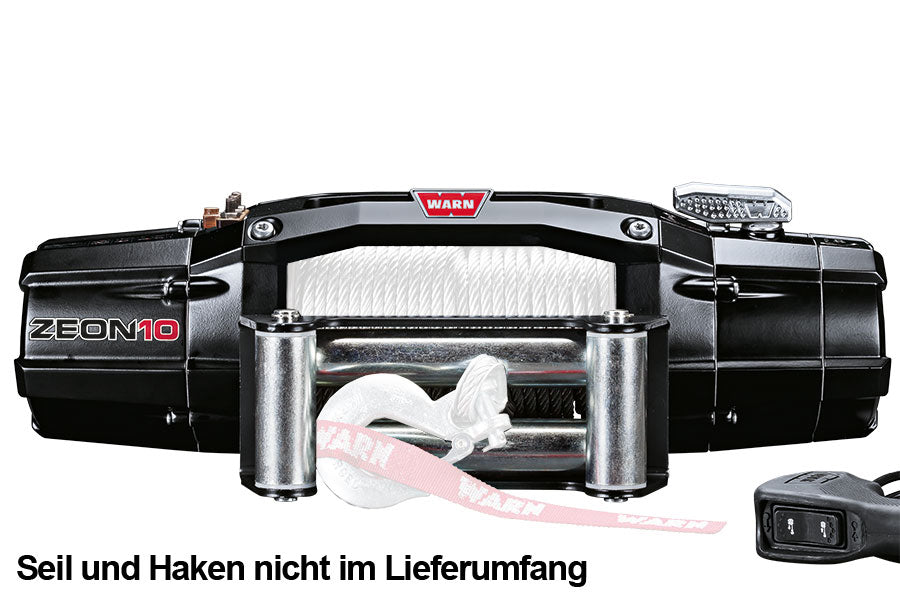

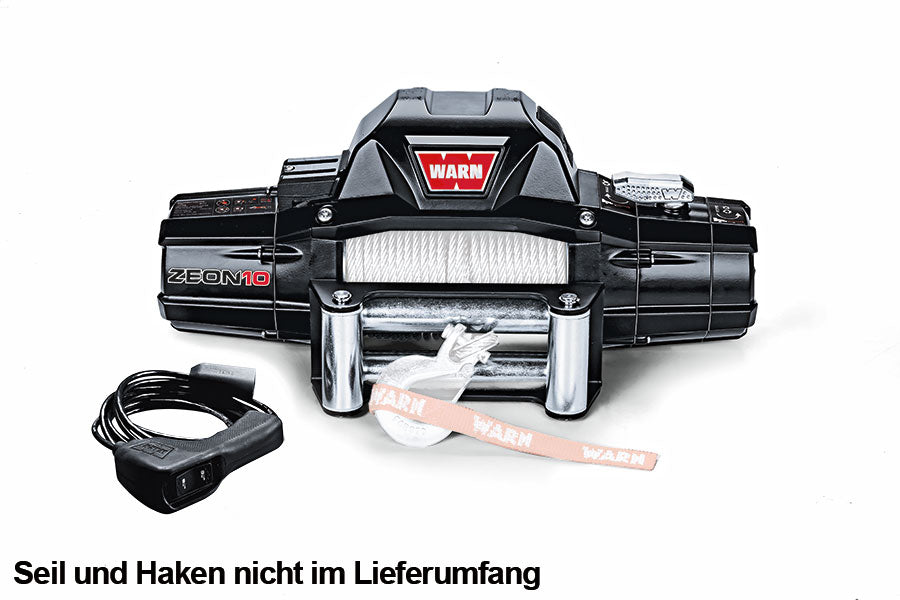

WARN ZEON 10 24V Winch, 4,536 kg pulling capacity, rope not included, incl. OLI
Item no.: TR1-90665-OLI
€2.759,95
Available again soon
🇩🇪 Ships from Germany
↺ 14-day returns
💬 Advice
Features:
- Remote control with 3.7 m remote cable
- Roller fairlead
- Freewheel clutch
- German operating instructions

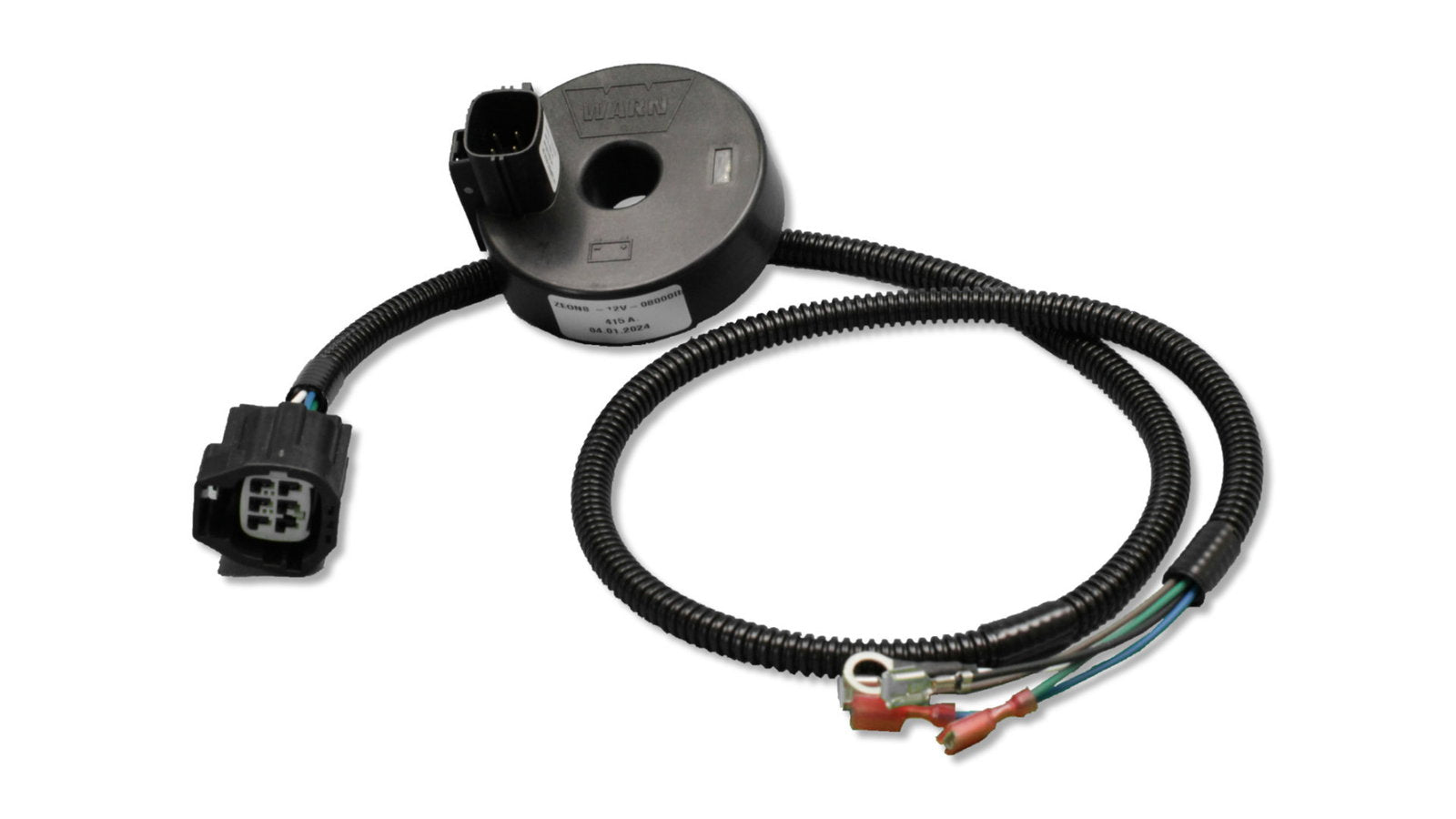

- OLI GEN II overload protection
We recommend the following ropes for this winch:
- Synthetic rope kit 27m x 9.4mm incl. aluminum fairlead (silver) 10-1190391
- Synthetic rope kit 27m x 9.4mm incl. aluminum fairlead (black) 10-1190399
- Steel rope kit 25m x 9mm, incl. RSF cover 10-1190402
Please note:
If no deviating settings for load limitation are specified, the standard value for maximum load will be set. However, this value is strongly influenced by the power supply. A deviation of around 10% is the norm!
Specifications
- Modell: WARN ZEON10
- Spannung: 24 Volt
- Zugkraft: 4.536 kg
- Steuerung: Kontaktor
- Funkfernbedienung: nein
- Kabelfernbedienung: ja, 3.7 m
- Getriebe: 3-stufiges Planetengetr.
- Übersetzung: 216:1
- Bremse: automatisch
- Trommelmaße: 8 x 22,9 cm
- Gewicht: 44 kg
- Seillänge: - m x - mm
- Batteriekabel: 1,83 m
- Seilfreilauf: manuell
- Seilfenster: Rollenseilfenster
- min. Kaltstartstrom Batterie: 650 CCA
- Befestigungsschrauben: ja

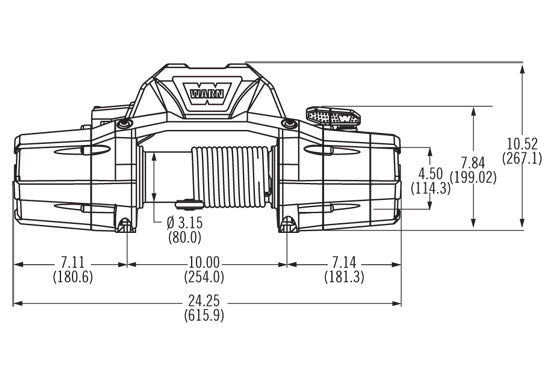

- Maße (LxTxH): 615,9 x 181,6 x 267,1 mm
- Lochbild: 254 x 114,3 mm
