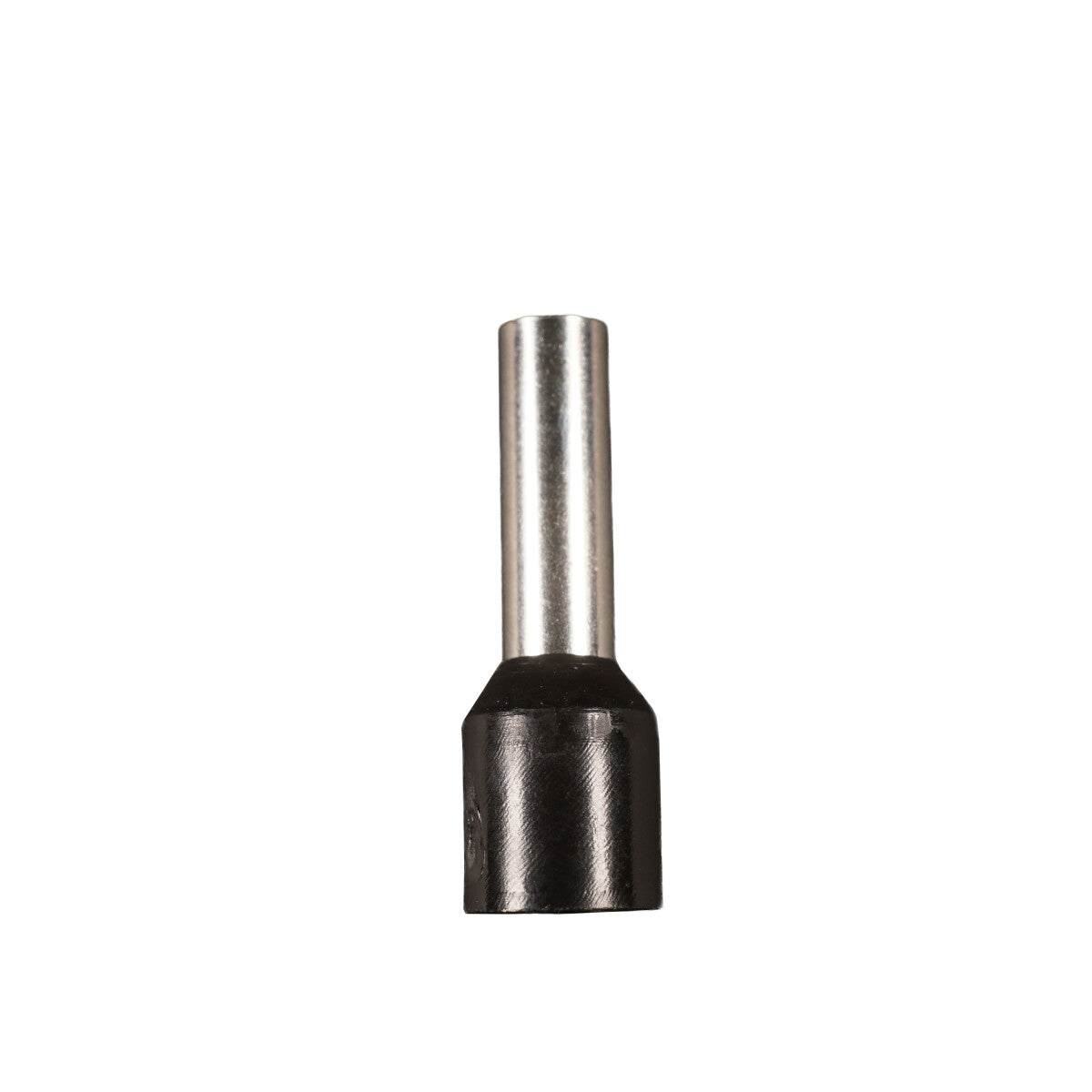

WATTSTUNDE® Ferrule 6 mm² black 25 pcs.

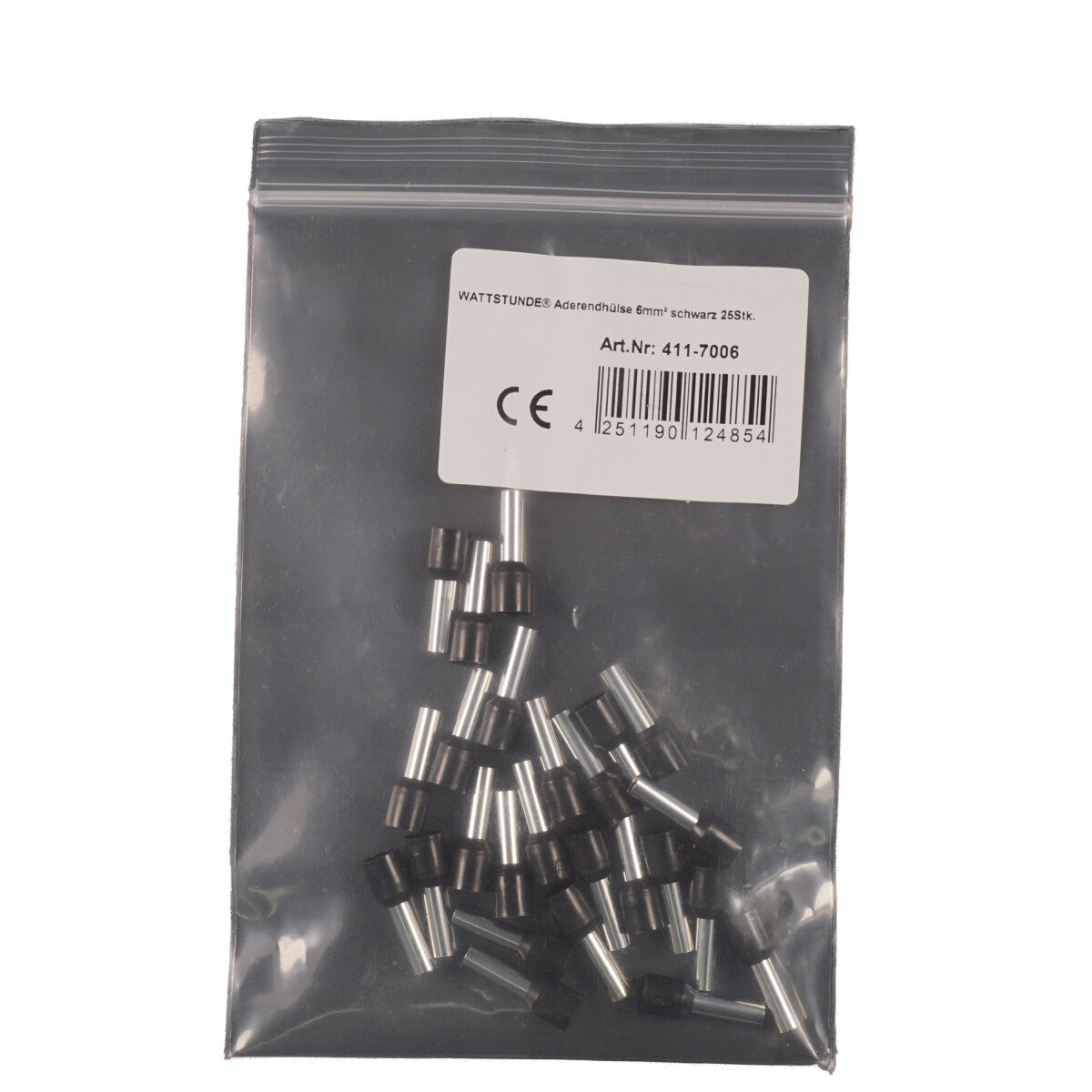

WATTSTUNDE® Ferrule 6 mm² black – 25 pieces

With the WATTSTUNDE® ferrule in 6 mm², you are choosing a particularly robust and durable solution for cleanly and securely terminating strong fine-stranded conductors. The stable copper sleeve with high-quality tin plating is perfectly suited for demanding electrical and solar applications where a reliable connection is essential – whether in an off-grid system, in a caravan, for battery cables, or in professional installations.

Clean & secure terminations for strong cables

Especially for 6 mm² conductors, a precise, firm, and corrosion-protected termination is crucial. This ferrule prevents individual strands from fanning out, allows for easy crimping, and ensures a permanently stable electrical connection. Thanks to the tin plating, the conductor remains protected even in damp conditions and temperature fluctuations.

Technical details at a glance

• Conductor cross-section: 6.0 mm²
• Length (L): 20.5 mm
• Width (B): 8.5 mm
• d2 (inner diameter): 3.5 mm
• F (sleeve length): 12.0 mm
• d: 6.0 mm
• D: 3.9 mm
• Material thickness: 0.14 mm

Material & coating

The sleeve is made of conductive copper and is fully tin-plated. This ensures excellent electrical conductivity while providing optimal protection against oxidation. The material thickness of 0.14 mm also offers additional stability – a clear advantage for stronger conductors exposed to high currents.

Your advantages

• Very robust & reliable conductor terminations
• Corrosion resistance due to high-quality tin plating
• Safe processing thanks to 0.14 mm material thickness
• Ideal for solar systems, battery cables, caravan electrics & DIY projects
• Warranty period: 2 years

Ideal for high-performance electrical projects

Whether in off-grid setups, solar systems, motorhomes, or workshop installations – the WATTSTUNDE® ferrule 6 mm² offers you the reliable quality you need for stable and secure connections with high load capacity.

Documents & Downloads

• Technical Drawing
