WATTSTUNDE® House Roof Mount End Clamps + Caps

WATTSTUNDE® Residential Roof Mounting End Clamps + Caps – Stable & Corrosion-Resistant

The WATTSTUNDE® Residential Roof Mounting End Clamps + Caps are an important component for the secure attachment of photovoltaic modules to pitched tile roofs. With high-quality aluminum and stainless steel components, they ensure durable and corrosion-resistant installation. Thanks to pre-assembled parts, installation is particularly efficient and time-saving.

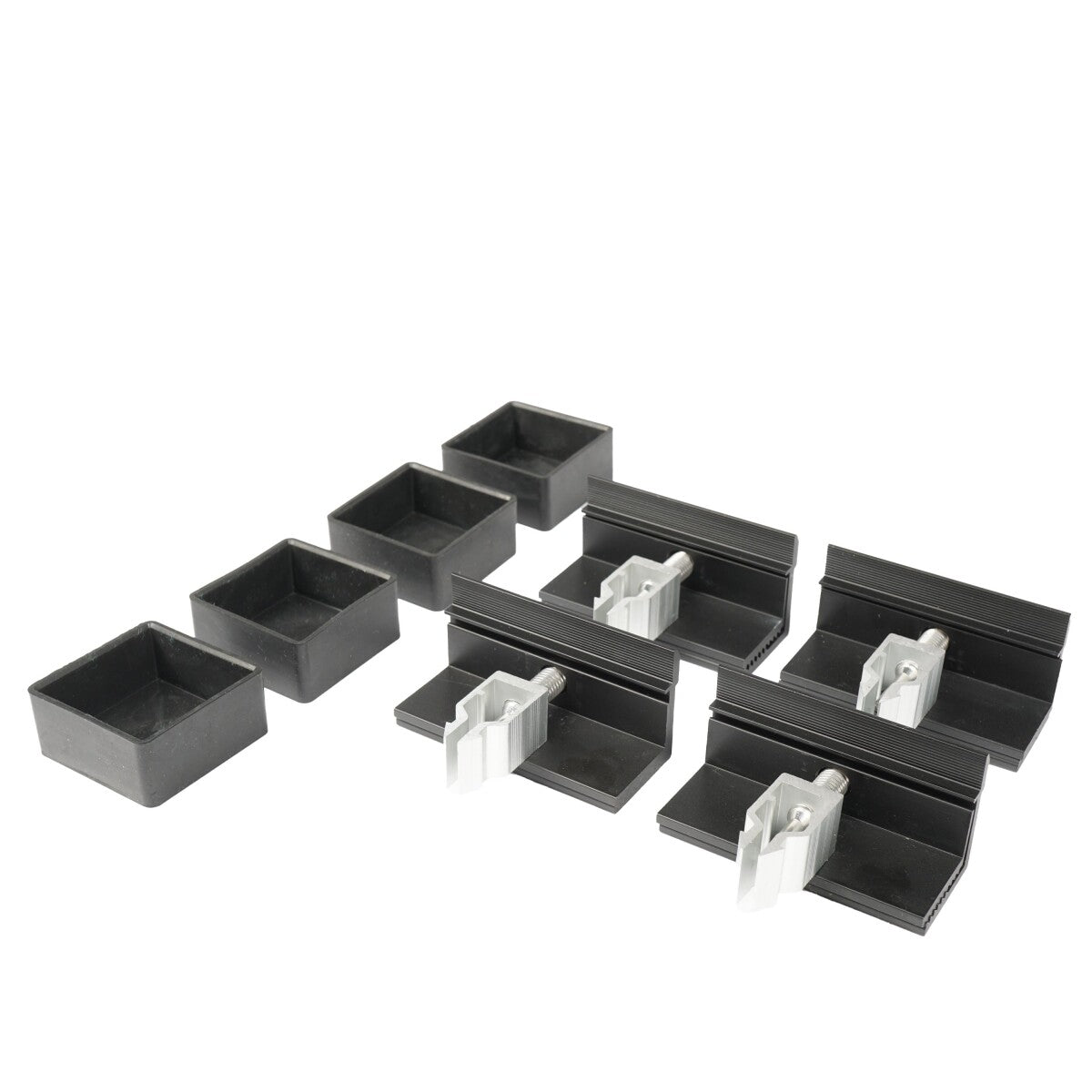

Set Contents

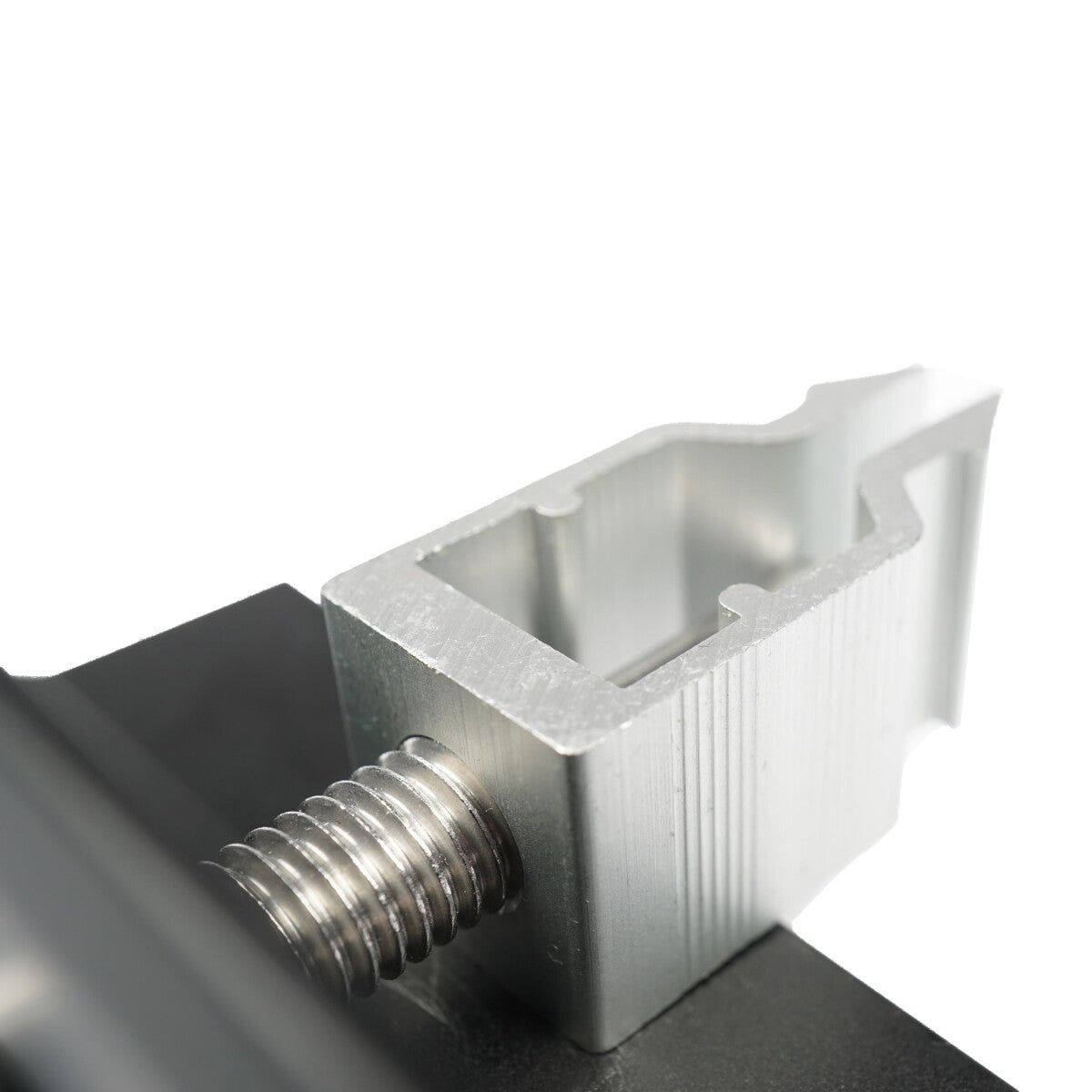

• 4 × End clamps (AL6005-T5, adjustable for 30–35 mm frame height)

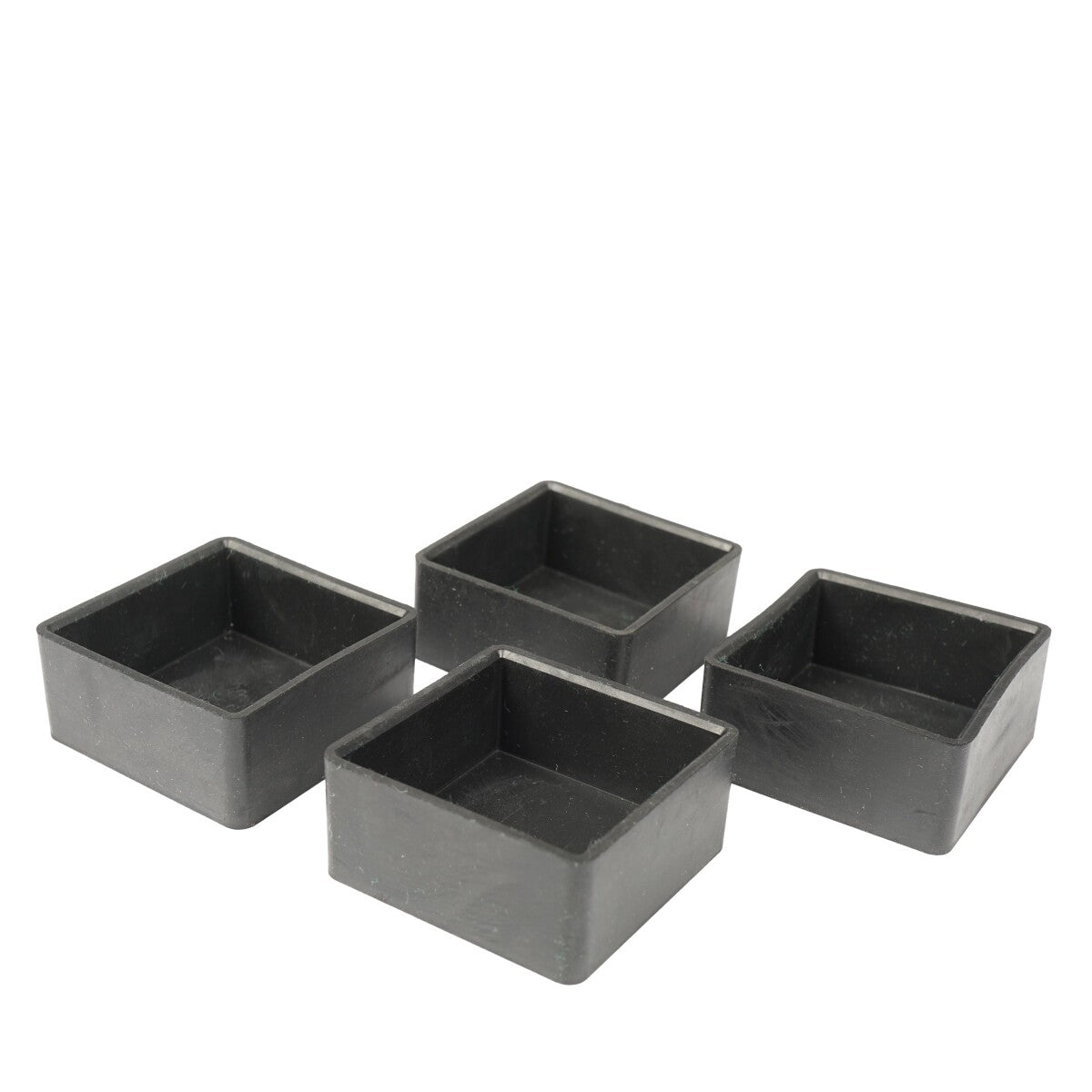

• 2 × End caps 40 × 40 mm (EPDM)
• 1 × Torx screw M8 × 42.5 (V2A / 304)
• 1 × Expansion nut (AL6005-T5)

Features

• Universally applicable for 1, 2, 3 or 4 modules
• Adjustable for frame heights of 30–35 mm
• Corrosion-resistant thanks to aluminum & stainless steel
• End caps made of weather-resistant EPDM
• Pre-assembled parts for faster installation
• Secure module hold in combination with roof hooks & mounting rails
• Manufacturer's warranty: 10 years

System Components & Expansion

The mounting system is modularly expandable and can be flexibly adapted to the desired number of modules:

Your Advantages at a Glance

• Set with 4 end clamps & 2 end caps
• Suitable for mounting 1 to 4 modules
• High corrosion resistance thanks to AL6005-T5 & stainless steel (V2A / 304)
• Quick & easy installation thanks to pre-assembled parts
• Modularly expandable mounting system
• Weather-resistant end caps made of EPDM

With the WATTSTUNDE® Residential Roof Mounting End Clamps + Caps, you get a well-designed set of 4 end clamps and 2 end caps, suitable for up to 4 modules. Corrosion-resistant materials and pre-assembled parts ensure uncomplicated installation and secure hold for your photovoltaic system.

Documents & Downloads

• Residential Roof Mounting Manual
• Technical Drawing End Clamps
• Technical Drawing End Caps
