WATTSTUNDE® Crimp Connectors 1.5–2.5 mm² Blue – 25 Pieces

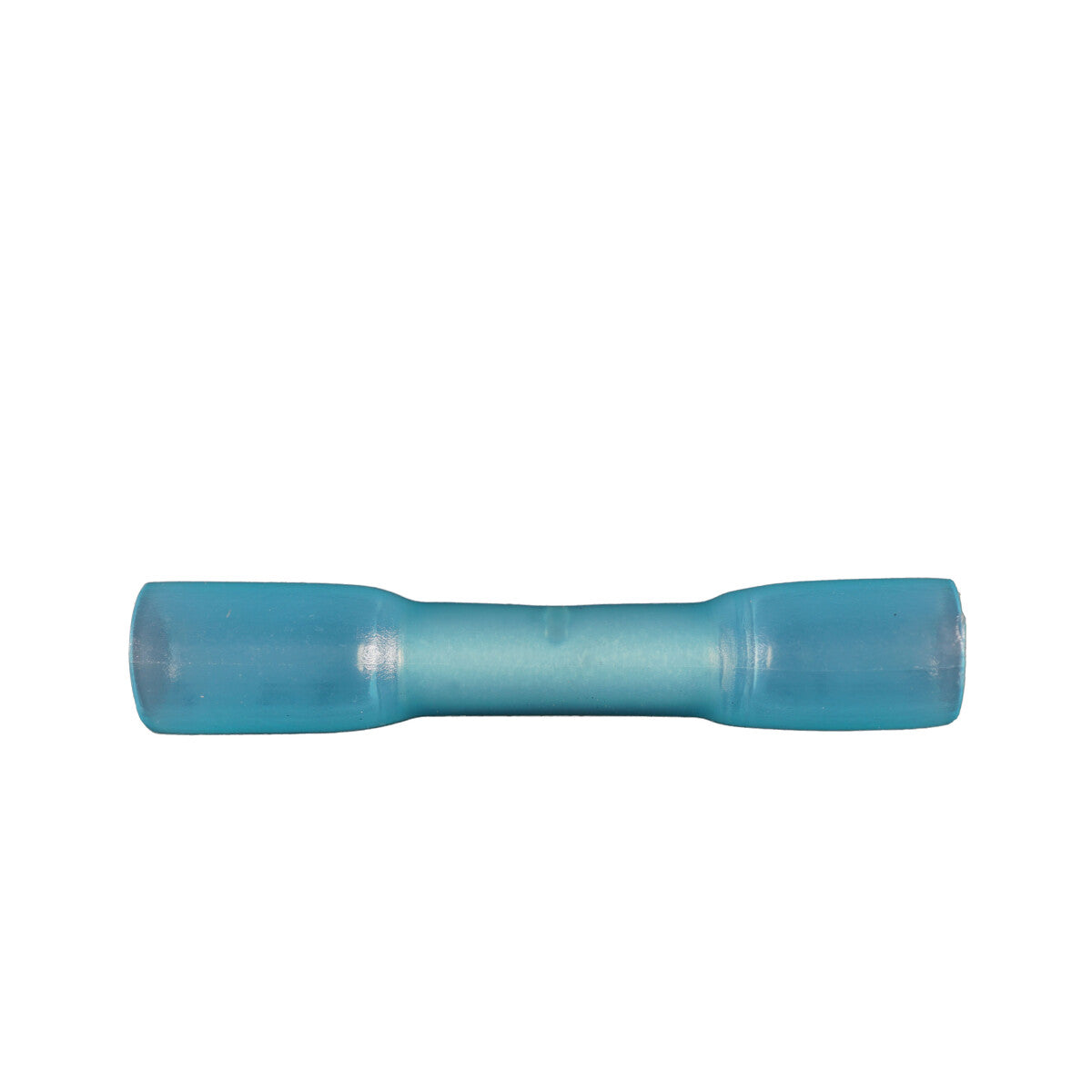

The blue WATTSTUNDE® Crimp Connectors 1.5–2.5 mm² offer you a robust, secure, and durable solution for cable connections in higher conductor cross-sections. They are ideal for installations that require stable power transmission and high mechanical strength.

Key Technical Data at a Glance

• Wire Range: 1.5–2.5 mm²
• Dimensions: d: 2.4 mm, F: 15 mm, D: 5.8 mm, L: 36.5 mm
• Crimp Core Thickness: 0.8 mm
• Rated Voltage: 250 V
• Rated Current: 15 A
• Conductor Cross-Section: 1.5–2.5 mm²
• Operating Temperature: –20 °C to +105 °C
• Insulation Material: PE
• Contact Material: Copper
• Color: blue

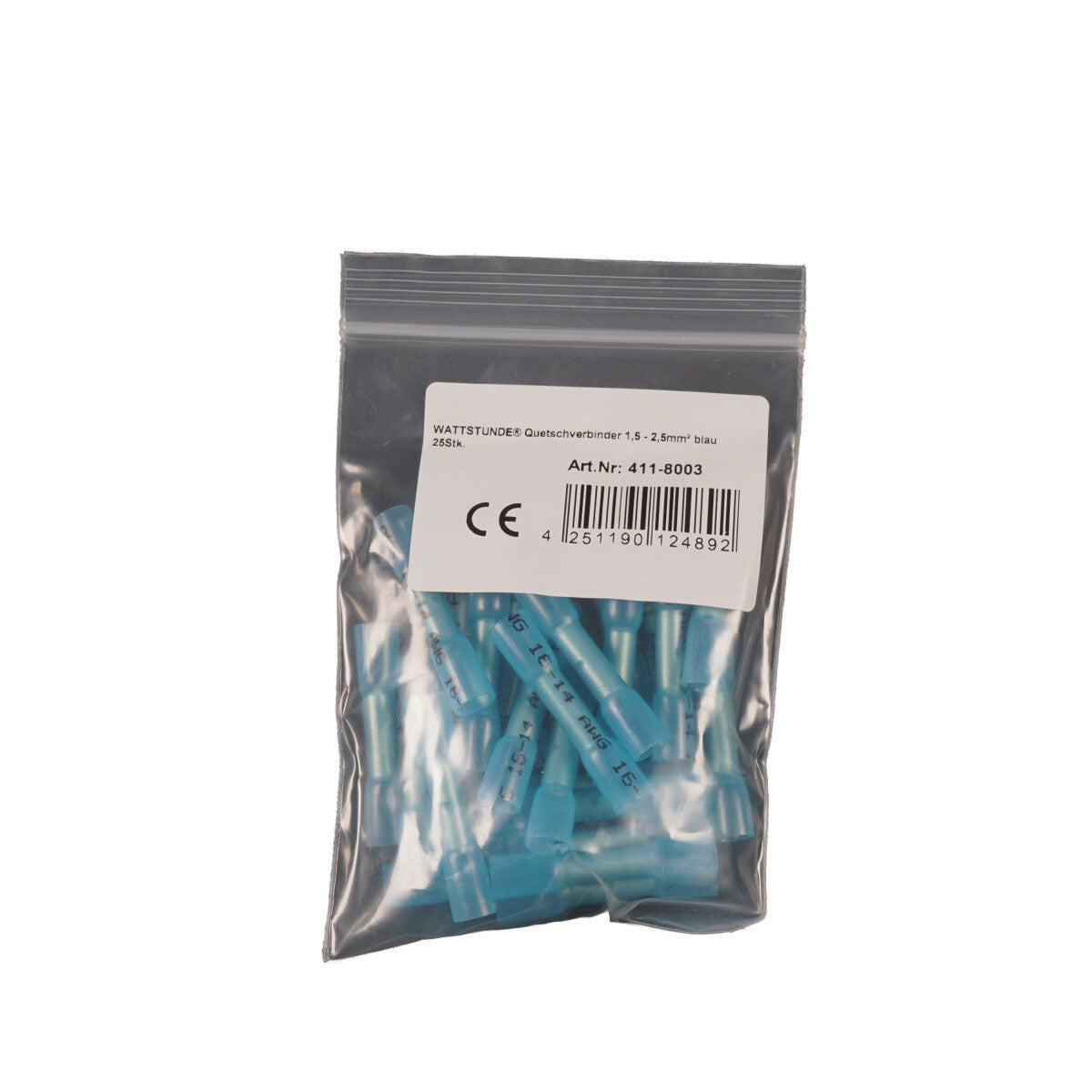

• Scope of Delivery: 25 pieces

High Conductivity

The copper contacts ensure reliable, low-loss energy transmission – ideal for applications up to 15 A.

Stable Crimp Connection

The 0.8 mm crimp core guarantees firm, mechanically robust connections, even under demanding conditions.

Temperature-Resistant Insulation

The PE insulation material provides reliable protection and withstands temperatures from –20 °C to +105 °C.

Your Benefits

• High conductivity
• Robust 0.8 mm crimp core
• Wide temperature range
• Easy to use
• Clear color coding
• Warranty period: 2 years

Reliability for more demanding tasks

The WATTSTUNDE® crimp connectors 1.5–2.5 mm² blue are ideal for both professional and private projects that require secure, high-performance cable connections.

Documents & Downloads

• Technical Drawing
