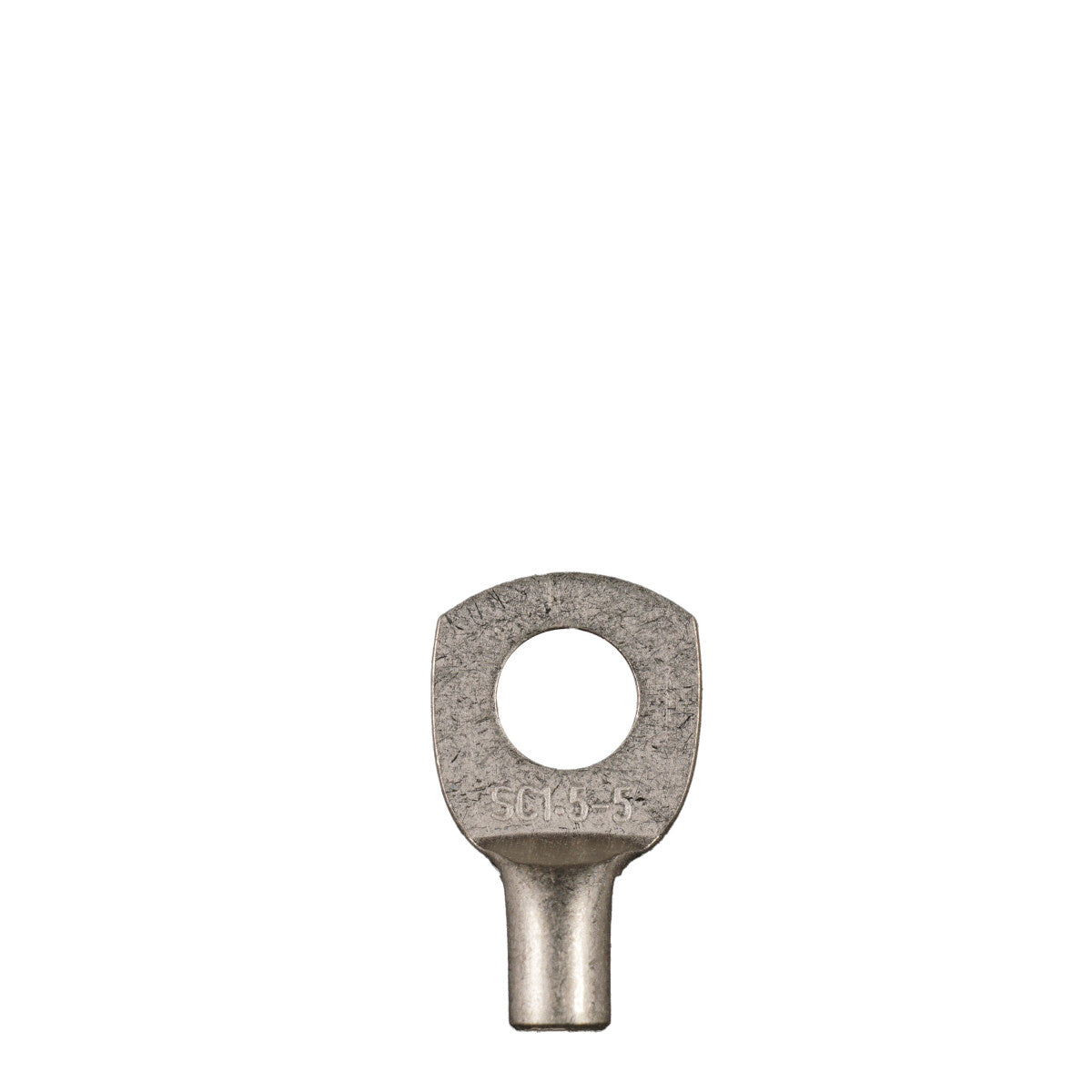

WATTSTUNDE® Tube Cable Lug 0.5 mm² M5 25 pcs.

WATTSTUNDE® Tubular Cable Lug 0.5 mm² M5 – 25 Pieces

The WATTSTUNDE® tubular cable lugs 0.5 mm² M5 are the ideal solution if you want to connect very fine wires safely, cleanly, and permanently. They are perfect for PV control lines, onboard power systems, electronics and DIY projects, as well as for any installation where a reliable connection of small conductors is required. With the set of 25, you have enough material for new installations, expansions, or repairs.

Key Technical Data at a Glance

• For conductor cross-section: 0.5 mm²
• Screw hole: M5

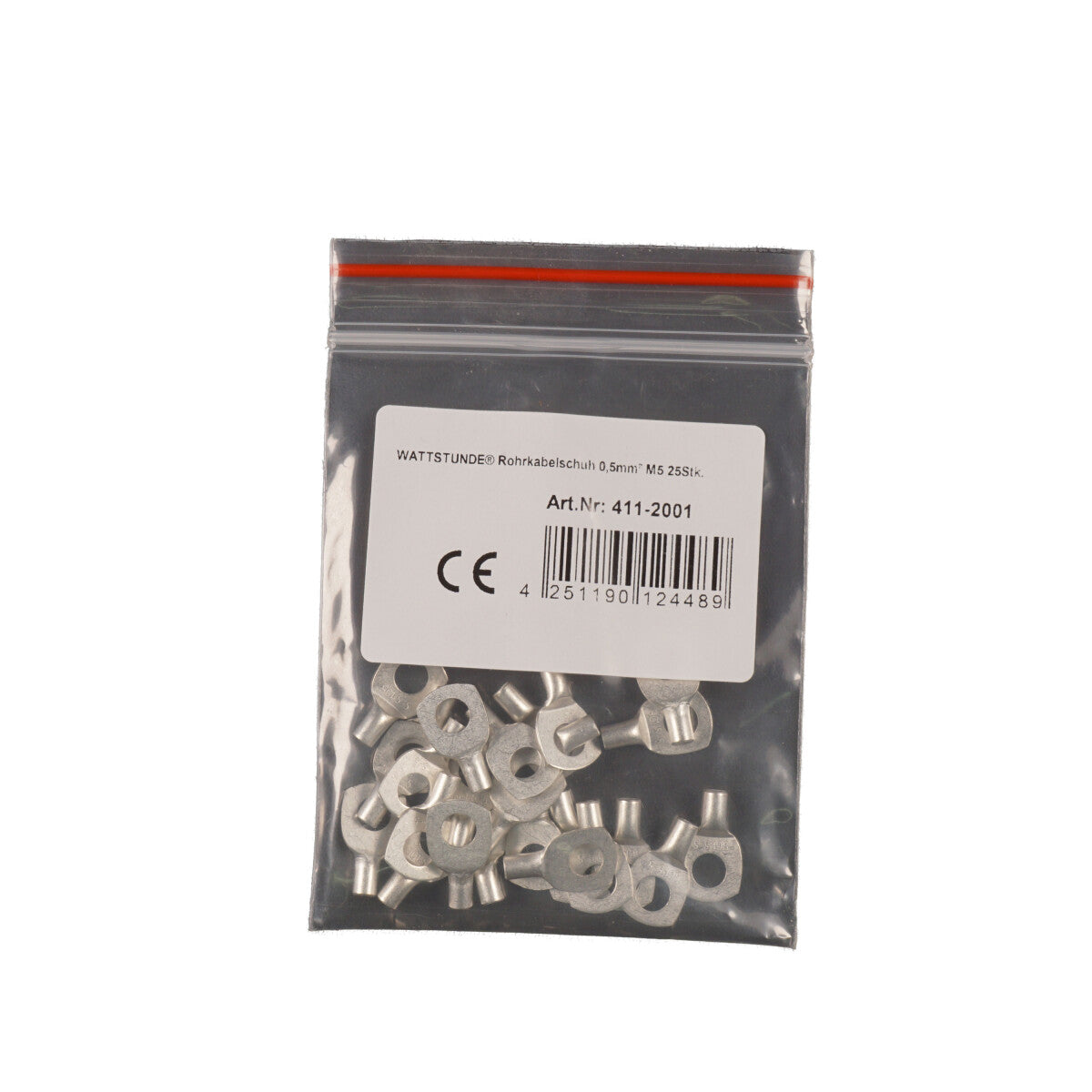

• Quantity: 25 pieces
• Dimensions (in mm): ØE 5.2 / ØD 3.7 / Ød 1.8 / W 10.0 / B 5.0 / L 17.0 / C1 4.6

High-Quality Metal Design

Thanks to the stable metal construction, the cable lugs offer a uniform contact surface, which keeps the contact resistance low. This is particularly important when working with small conductor cross-sections in the range of 0.5 mm².

Suitable for M5 Screw Connections

With ØE 5.2 mm, the cable lugs are precisely matched to M5 screw terminals. The connection remains firm and secure – ideal for busbars, terminal blocks, onboard power modules, or compact PV control boxes.

Clean Crimping for Permanent Hold

The guide (Ød 1.8 mm) is precisely designed for 0.5 mm² conductors. With suitable crimping pliers, the cable can be securely pressed, so that the connection remains stable and mechanically resilient in the long term.

Typical Application Areas

• Fine wiring in PV & DC controls
• Onboard power & electronic systems in vehicles & boats
• DIY projects, small controls & sensor wiring
• Device terminals & distribution systems
• Maintenance & repair work

Your Advantages at a Glance

• Ideal for very fine 0.5 mm² wires
• Exact fit for M5 screw connections
• Robust metal design for durable connections
• Low contact resistance thanks to clean contact surfaces
• 25 pieces – perfect for projects & spare parts
• Warranty period: 2 years

Precise, Safe & Durable

If you value clean, professional connections for fine wires, the WATTSTUNDE® tubular cable lugs 0.5 mm² M5 offer the ideal combination of quality, stability, and ease of processing – perfect for compact electrical installations.

Documents & Downloads

• Technical Drawing
