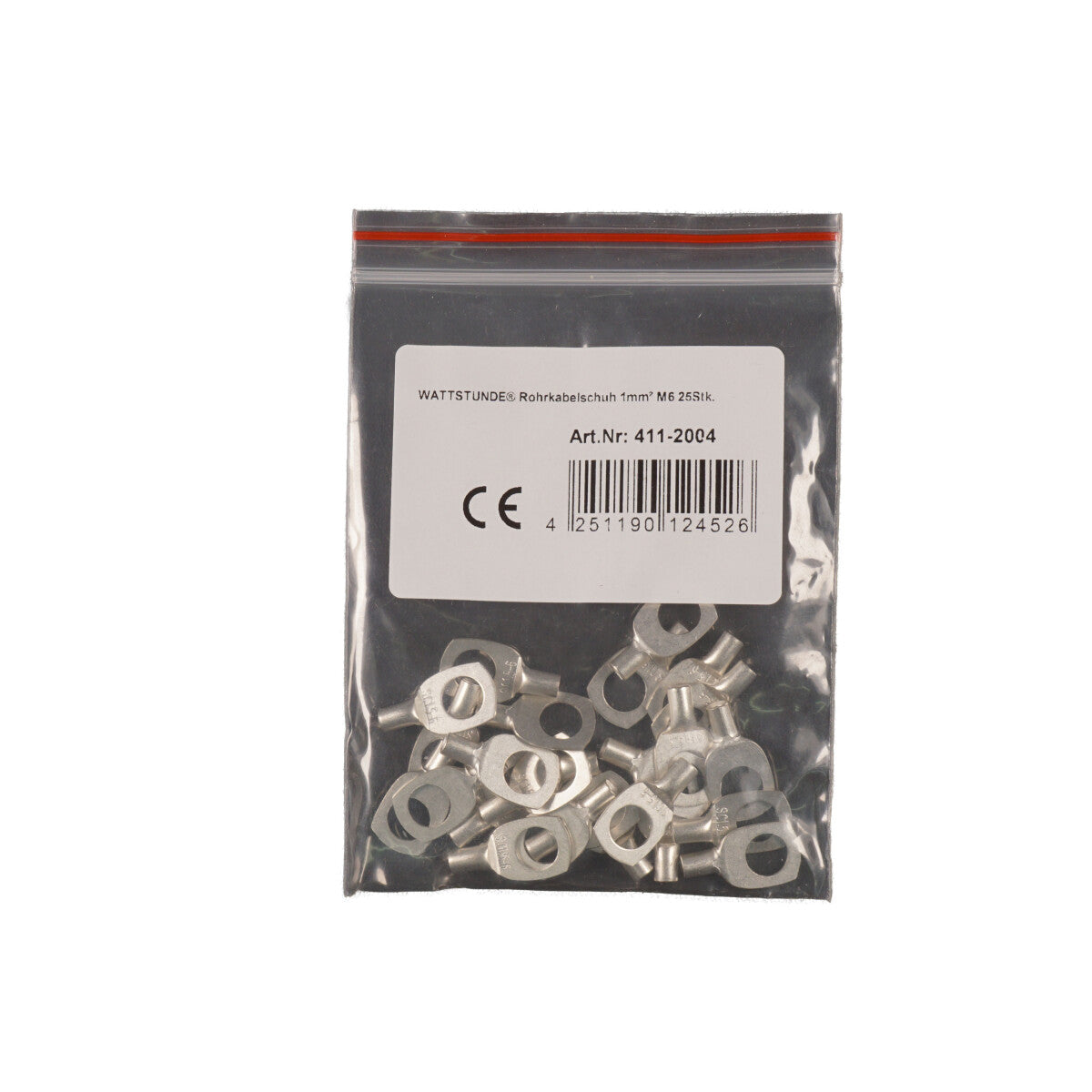

WATTSTUNDE® Tube Cable Lug 1 mm² M6 25 pcs.

WATTSTUNDE® Tubular Cable Lug 1 mm² M6 – 25 Pieces

With WATTSTUNDE® Tubular Cable Lugs 1 mm² M6, you get high-quality connector terminals specially designed for fine-stranded wires. They ensure clean, strong, and durable connections – ideal for PV applications, onboard power systems, electronics projects, and all low-voltage installations. The set of 25 pieces provides you with enough material for new installations, expansions, or repairs.

Key Technical Data at a Glance

• For conductor cross-section: 1 mm²
• Screw hole: M6
• Quantity: 25 pieces
• Dimensions (in mm): ØE 6.5 / ØD 3.7 / Ød 1.8 / W 10.0 / B 5.0 / L 18.0 / C1 5.3

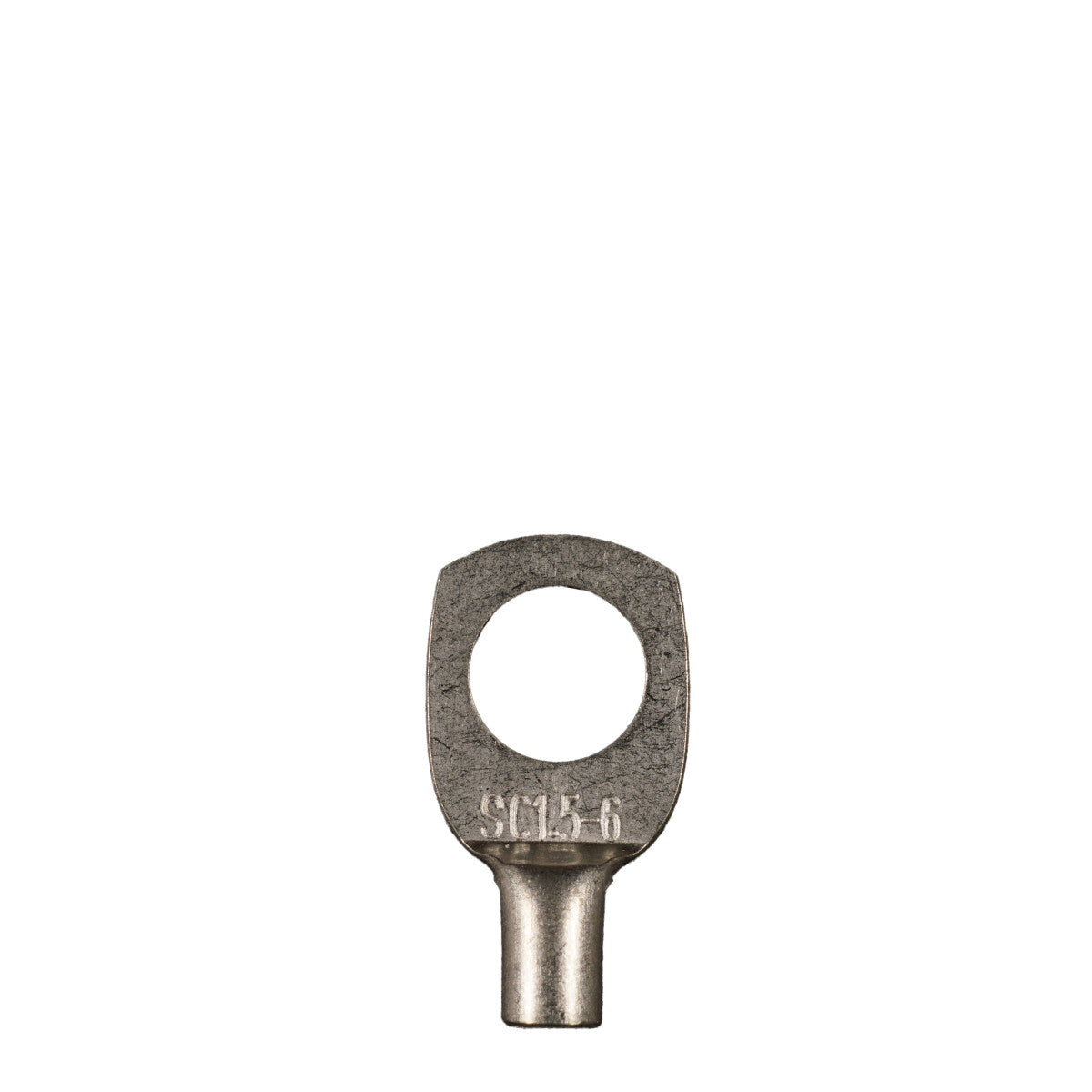

Robust Metal Construction

The tubular cable lugs are made of high-quality metal and offer a uniform, stable contact surface. This ensures that current is transmitted with minimal loss – a crucial point, especially for fine conductors in the 1 mm² range.

Secure Mounting with M6 Screw Hole

With ØE 6.5 mm, the cable lugs are perfectly matched to M6 screw connections. The fastening is firm, secure, and remains stable even with vibrations or regular loads.

Clean Connection Technology

The cable lugs can be crimped quickly and cleanly with a suitable crimping tool. The inner guide (Ød 1.8 mm) is precisely matched to the conductor cross-section of 1 mm², allowing you to achieve a reliable, permanent connection.

Typical Applications

• Fine wires in PV controls & miniature wiring
• Onboard power systems in boats, RVs & vans
• Electronics & DIY projects in the 12V or 24V range
• Distribution systems & device terminals
• Retrofitting and repair work

Your Advantages at a Glance

• Precisely manufactured for 1 mm² wires
• M6 screw hole for stable screw connections
• Robust metal design for durable installations
• Low-loss current transmission through clean contact surfaces
• 25 pieces in a set – ideal for projects & spare parts
• Warranty period: 2 years

Professional Quality for Fine Wires

WATTSTUNDE® Tubular Cable Lugs 1 mm² M6 offer you a secure, clean, and durable connection technology – perfect for demanding electrical installations. Exactly the right choice if you want stability and reliable contacting for fine-stranded wires.

Documents & Downloads

• Technical Drawing
