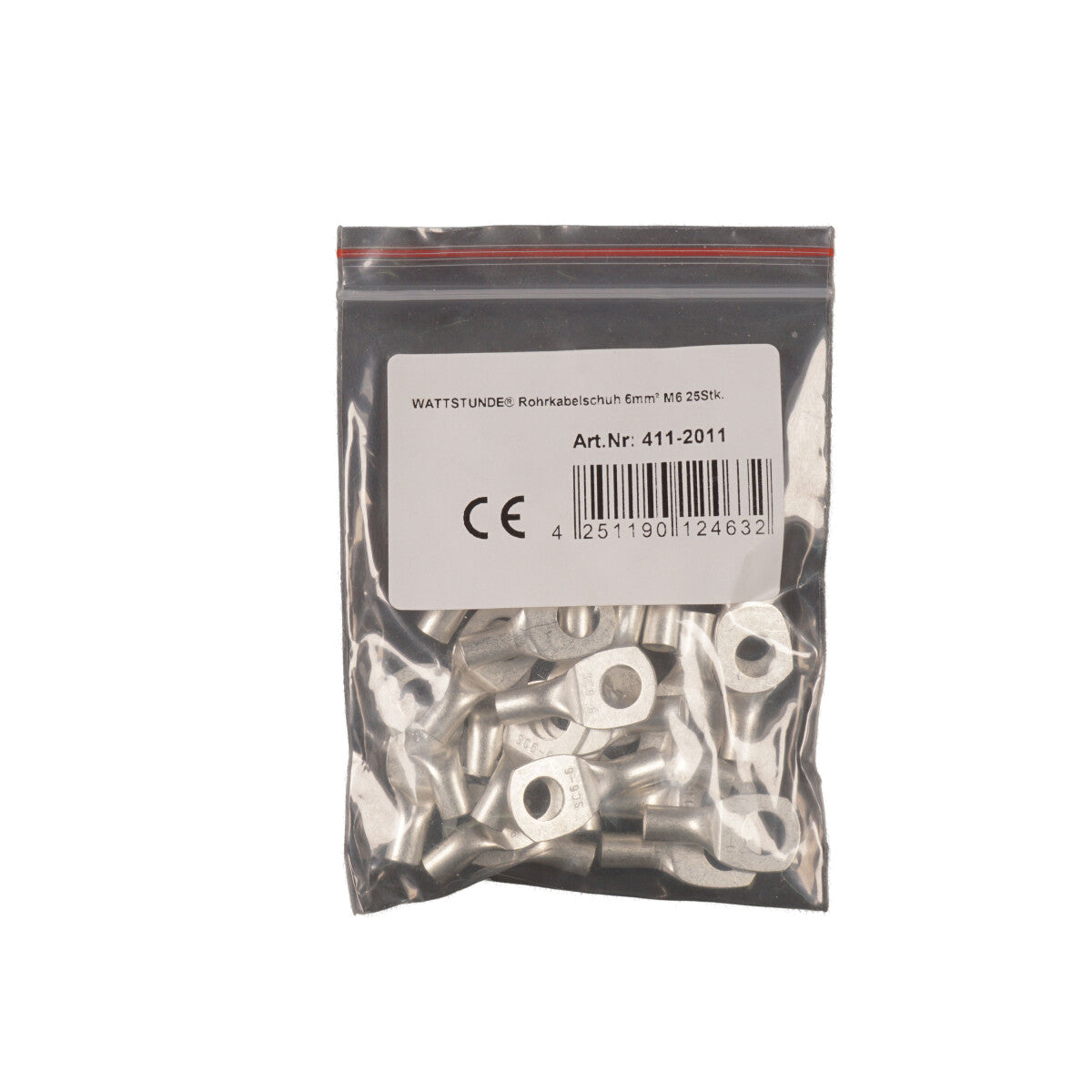

WATTSTUNDE® Tube Cable Lug 6 mm² M6 25 Pcs.

WATTSTUNDE® Tube Cable Lug 6 mm² M6 – 25 pieces

With the WATTSTUNDE® Tube Cable Lugs 6 mm² M6, you are choosing high-quality connection terminals that have been specially developed for heavy-duty cables and demanding electrical systems. They are ideal for PV systems, battery connections, onboard power installations, off-grid setups, or any application where you need a robust and durable cable connection. The set of 25 provides you with enough material for projects, expansions, and repairs.

Key Technical Data at a Glance

• For conductor cross-section: 6 mm²
• Screw hole: M6
• Quantity: 25 pieces
• Dimensions (in mm): ØE 6.5 / ØD 5.5 / Ød 3.8 / W 12.0 / B 9.0 / L 24.0 / C1 5.5

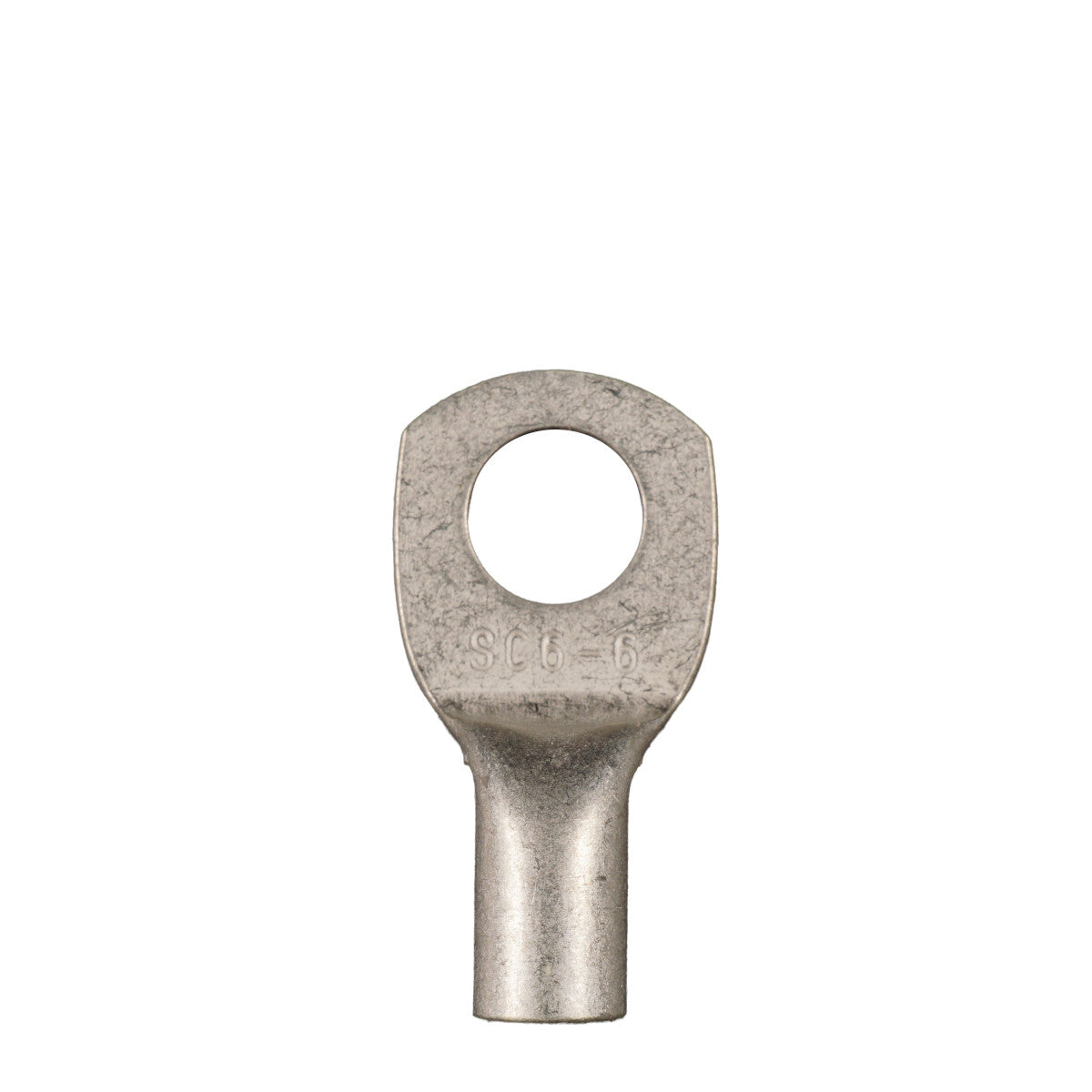

Robust Metal Design

The cable lugs are made of durable metal and are designed to provide a large, stable contact surface. This results in low contact resistance and efficient power transmission – a decisive advantage for 6 mm² cables.

Suitable for M6 Screw Connections

With ØE 6.5 mm, the cable lugs are precisely matched to M6 fastenings. The connection is secure, remains firm even under load, and is ideally suited for battery systems, busbars, or other current-carrying connections.

Clean Crimping for Permanent Connections

The inner guide (Ød 3.8 mm) is precisely designed for 6 mm² conductors. This allows the cable to be securely crimped with a crimping tool and remains permanently fixed. The stable tube shape supports reliable mechanical load capacity.

Typical Applications

• PV systems & DC cabling
• Battery & onboard power systems
• Camping, boat & off-grid installations
• Busbars, device terminals & main cables
• 12V & 24V high-current applications

Your Advantages at a Glance

• Optimized for 6 mm² cables
• Robust, durable metal construction
• Secure hold thanks to M6 screw hole
• Low contact resistance due to large contact surface
• 25 pieces – ideal for installations, modifications & repairs
• Warranty period: 2 years

Stable, resilient & designed for high currents

The WATTSTUNDE® Tube Cable Lugs 6 mm² M6 combine high-quality materials with precise manufacturing. They are ideal if you value permanent safety and reliable power transmission in your PV, battery, or vehicle installation.

Documents & Downloads

• Technical drawing
