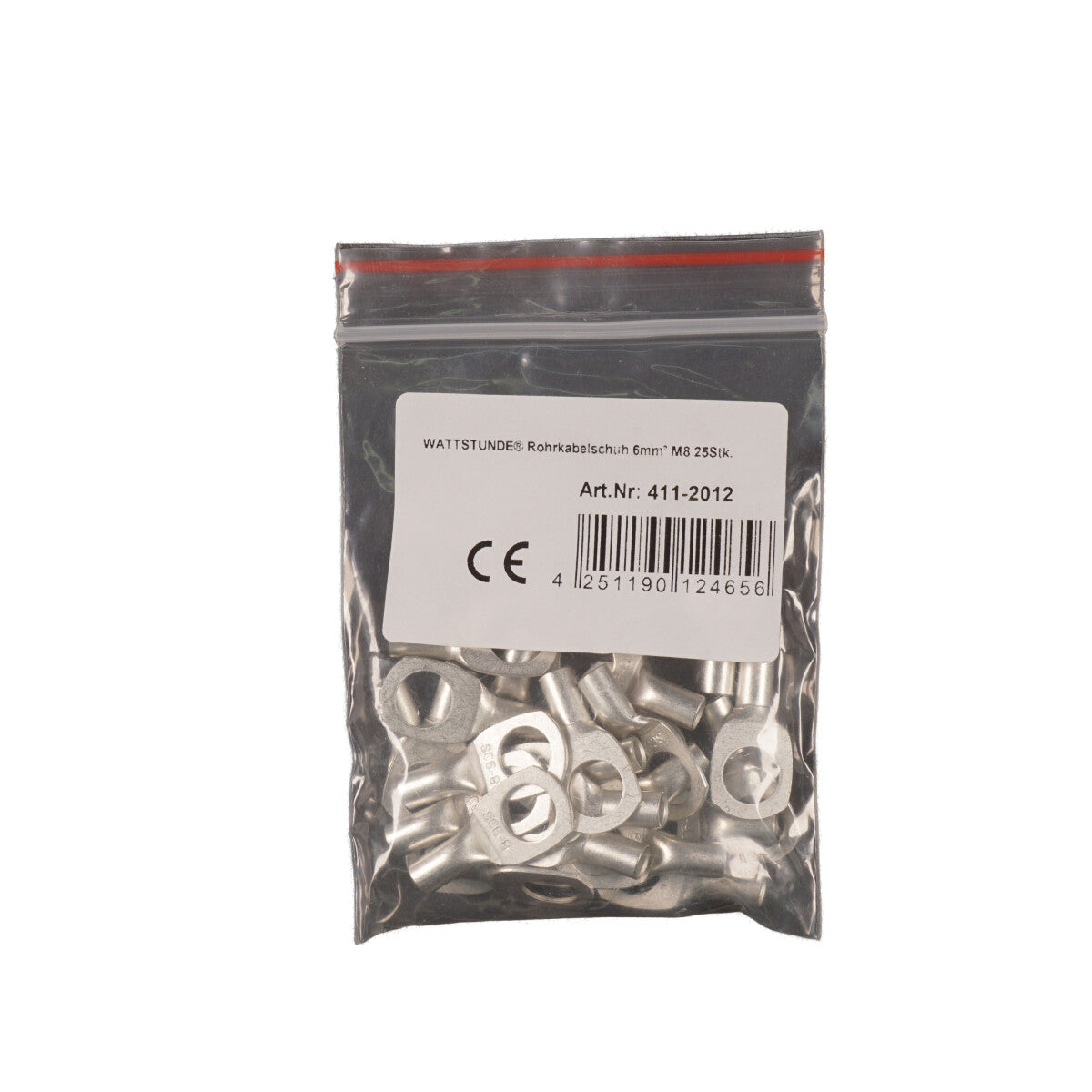

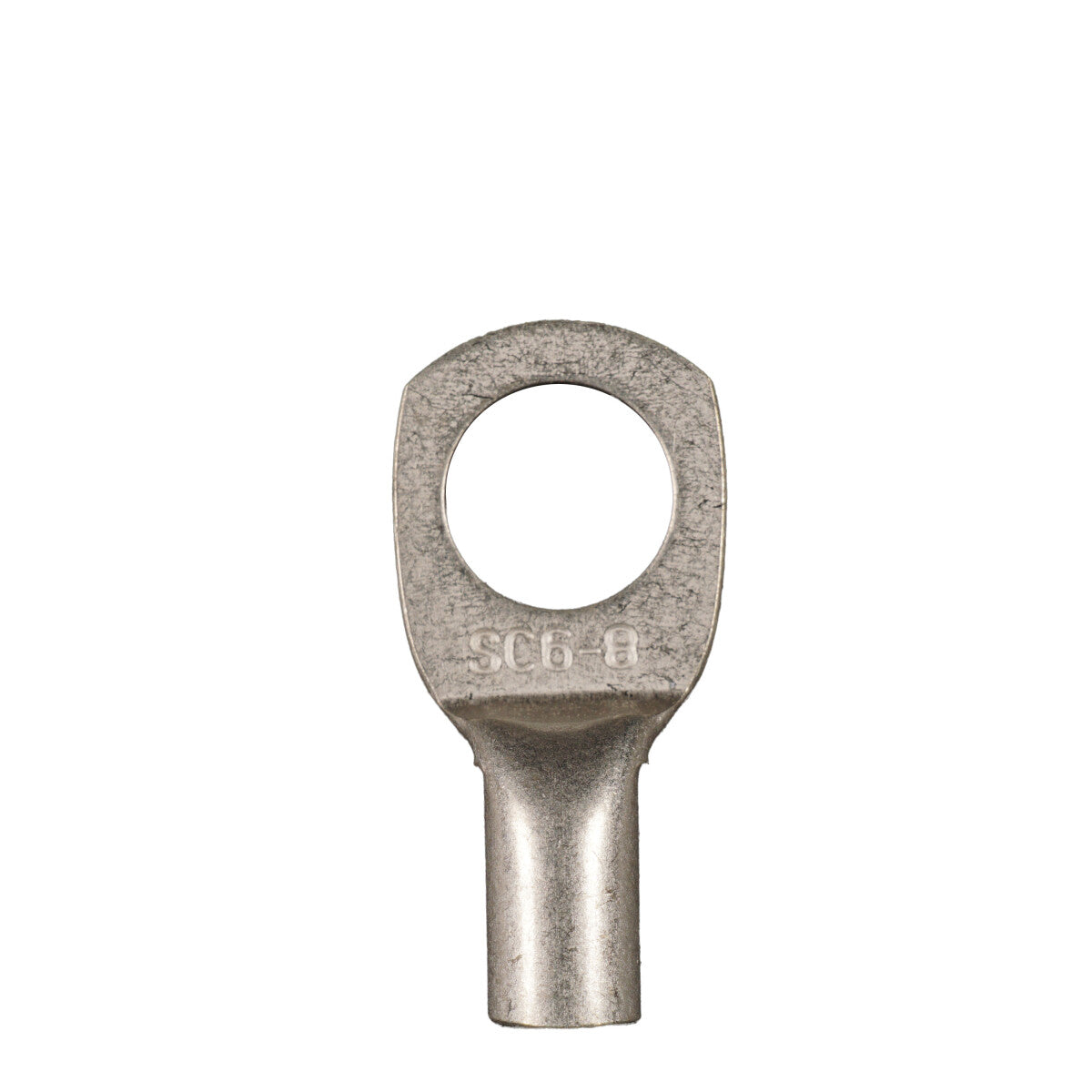

WATTSTUNDE® Tube Cable Lug 6 mm² M8 25 pcs.

WATTSTUNDE® Tubular Cable Lug 6 mm² M8 – 25 Pieces

The WATTSTUNDE® 6 mm² M8 tubular cable lugs are the ideal solution if you want to connect high-performance cables safely, cleanly and permanently. They are perfect for PV systems, battery systems, on-board power installations, inverter connections or demanding 12 V and 24 V applications. The set of 25 pieces provides you with enough material for new installations, modifications or repairs.

Key technical data at a glance

• For conductor cross-section: 6 mm²
• Screw hole: M8
• Quantity: 25 pieces
• Dimensions (in mm): ØE 8.4 / ØD 5.5 / Ød 3.8 / W 12.5 / B 9.0 / L 26.0 / C1 6.5

Robust design for high loads

These tubular cable lugs offer large contact surfaces and are made of durable metal, ensuring a long-lasting, stable connection. The low contact resistance ensures that current flows efficiently and reliably – particularly important for strong cables in the 6 mm² range.

Precision-fit mounting via M8 screw connection

With ØE 8.4 mm, the cable lugs are precisely matched to M8 screw connections. Whether on battery terminals, busbars, inverters or high-current consumers – the mounting sits securely and permanently, remaining firm even under load.

Clean crimp connections

The inner guide (Ød 3.8 mm) is precisely designed for 6 mm² cables. With a suitable crimping tool, you can crimp the cable quickly and reliably. The stable tubular shape ensures that the conductor remains firmly fixed.

Typical applications

• PV systems, charge controller & battery systems
• Off-grid installations & autonomous energy systems
• Boat, vehicle & motorhome electrical systems
• Inverter, starter & supply lines
• 12 V & 24 V high-current wiring

Your advantages at a glance

• Suitable for 6 mm² cables
• Precisely matched M8 screw hole for stable mounting
• Very robust metal design
• Large contact surfaces for minimal contact resistance
• 25 pieces for installations, repairs & extensions
• Warranty period: 2 years

Stability & efficiency for high-performance systems

These WATTSTUNDE® 6 mm² M8 tubular cable lugs offer you the optimal combination of strong conductivity, clean processing and high load capacity. Perfect for anyone who needs safe and durable connections in energy-intensive applications.

Documents & Downloads

• Technical drawing
