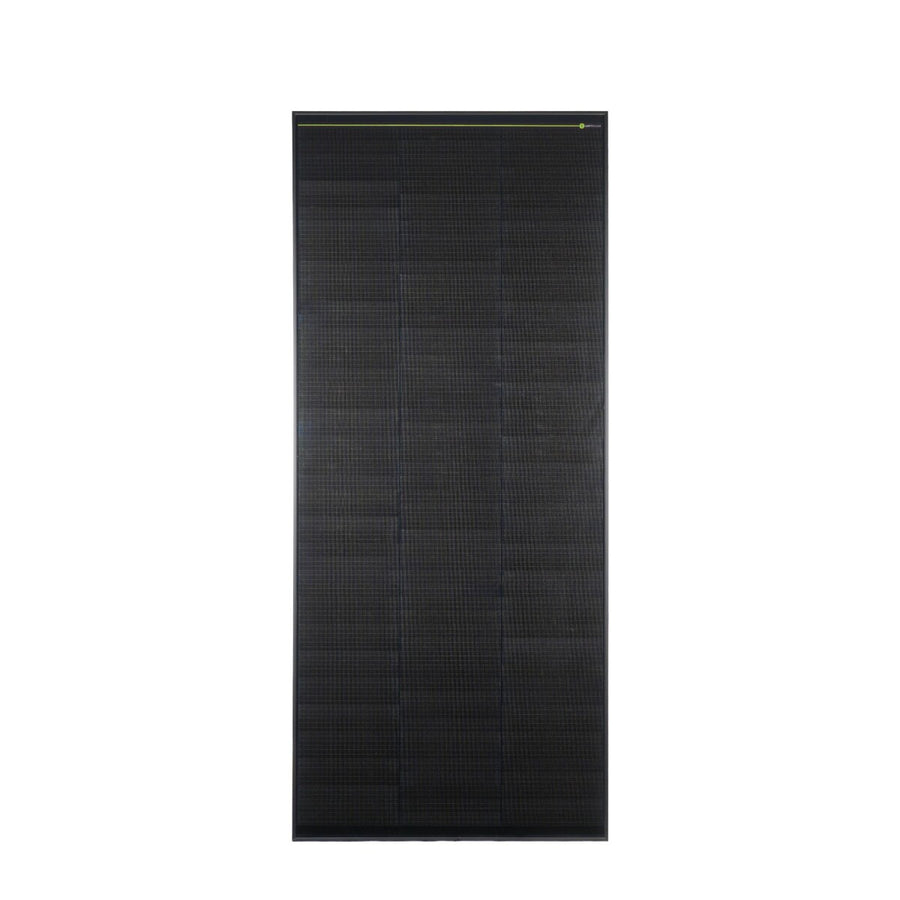

WATTSTUNDE® SOLA Frame Black 205 Wp
WATTSTUNDE® SOLA Frame Black 205 Wp – Compact Solar Panel with Innovative Shingled Cell Technology
With the WATTSTUNDE® SOLA Frame Black 205 Wp, you are choosing a powerful yet lightweight solar panel that utilizes state-of-the-art shingled cell technology. The innovative cell structure ensures maximum efficiency, reliable performance, and optimal aerodynamics – perfect for mobile applications such as RVs, boats, or off-grid systems. Thanks to its elegant all-black appearance, the module blends discreetly and stylishly into any vehicle or system design.
Efficiency & Performance
Thanks to shingled cell technology, the solar cells are connected without traditional connectors. This reduces internal resistance and significantly increases energy yield. Even with partial shading, integrated bypass diodes ensure reliable current flow. With an efficiency of up to 23.8%, the module is one of the most efficient in its class.
Optimized Design for Mobile Applications
The reduced frame height not only leads to lower weight but also improves aerodynamics – a clear advantage for mounting on RVs or boats. The robust hollow-chamber profile frame offers stability, while the black appearance ensures a modern, discreet design.
Durability & Protection
The module is equipped with highly transmissive ESG anti-reflective glass, which protects it from mechanical stress and environmental influences. The IP67 junction box and integrated bypass diodes ensure a long service life and reliable performance – even under challenging conditions.
Easy Installation
With the 90 cm long connection cable and MC4-compatible connectors, installation is quick and easy. Multiple modules can be easily interconnected, allowing you to flexibly expand your system.
Your Advantages at a Glance
- High efficiency of up to 23.8%.
- Lightweight & aerodynamic design – ideal for mobile use.
- Robust & durable thanks to ESG anti-reflective glass.
- Flexible installation thanks to pre-assembled cables.
- This module is tested according to IEC 61215 and IEC 61730.
- 10-year product warranty & 25-year performance warranty.
Your Reliable Companion for Independent Energy
The WATTSTUNDE® SOLA Frame Black 205 Wp is the ideal choice for anyone looking for a compact, robust, and highly efficient solar panel. Whether for self-sufficient travel, your boat, or your off-grid system – with this module, you secure reliable solar energy for many years to come.
| Technical Data | SOLA Frame Black 205 Wp |
| Rated Power | 205 W |
| Max. Daily Yield (Summer) | 920 Wh/d |
| Voltage (Umpp) | 25.20 V |
| Current (Impp) | 8.14 A |
| Open Circuit Voltage (Voc) | 28.80 V |
| Short Circuit Current (Isc) | 8.63 A |
| Cell Efficiency | ≥ 22 % |
| Cell Material | Mono Shingled Cells |
| Bypass Diode | Integrated |
| Weight | 10.30 kg |
| Dimensions | 1546 x 658 x 30 mm |
