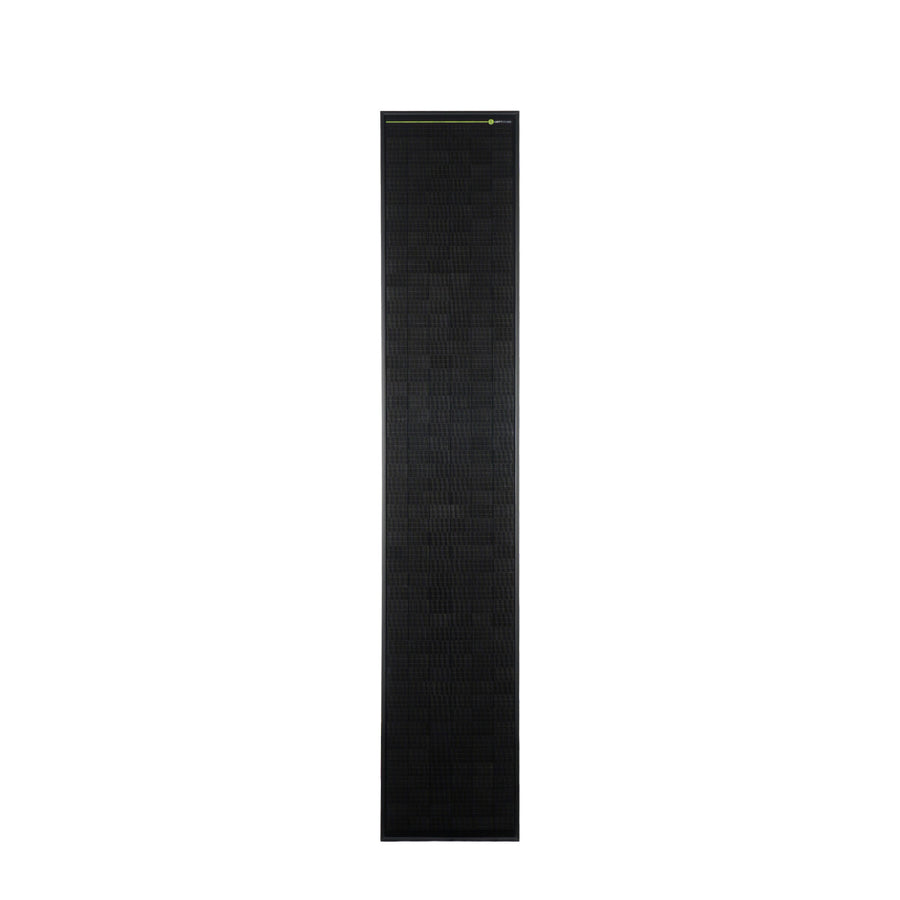

WATTSTUNDE® SOLA Frame Black 80 Wp
WATTSTUNDE® SOLA Frame Black 80 Wp – Compact Solar Module with Innovative Shingled Cell Technology
With the WATTSTUNDE® SOLA Frame Black 80 Wp, you are choosing a powerful yet lightweight solar module that utilizes state-of-the-art shingled cell technology. The innovative cell structure ensures maximum efficiency, reliable performance, and optimal aerodynamics – perfect for mobile applications such as motorhomes, boats, or off-grid systems.
Efficiency & Performance
Thanks to shingled cell technology, the solar cells are interconnected without traditional connectors. This reduces internal resistances and significantly increases energy yield. Even with partial shading, integrated bypass diodes ensure reliable current flow. With an efficiency of up to 23.8%, the module is among the most efficient in its class.
Optimized Design for Mobile Applications
The reduced frame height not only ensures lower weight but also improves aerodynamics – a clear advantage for mounting on motorhomes or boats. The robust hollow-chamber profile frame provides stability, while the black appearance creates a modern, discreet design.
Durability & Protection
The module is equipped with highly transmissive ESG anti-reflective glass, which protects it from mechanical stress and environmental influences. The IP67 junction box and integrated bypass diodes ensure a long lifespan and reliable performance – even under challenging conditions.
Easy Installation
With the 90 cm connection cable and MC4-compatible connectors, installation is quick and uncomplicated. Multiple modules can be easily interconnected, allowing you to flexibly expand your system.
Your Advantages at a Glance
- High efficiency of up to 23.8%.
- Lightweight & aerodynamic design – ideal for mobile use.
- Robust & durable thanks to ESG anti-reflective glass.
- Flexible installation thanks to pre-assembled cables.
- This module is tested according to IEC 61215 and IEC 61730.
- 10-year product warranty & 25-year performance warranty.
Your Reliable Companion for Independent Energy
The WATTSTUNDE® SOLA Frame Black 80 Wp is the ideal choice for anyone looking for a compact, robust, and highly efficient solar module. Whether for autonomous travel, your boat, or your off-grid system – with this module, you are guaranteed reliable solar energy for many years to come.
| Technical Data | SOLA Frame Black 80 Wp |
| Nominal Power | 80 W |
| Max. Daily Yield (Summer) | 360 Wh/d |
| Voltage (Umpp) | 24.64 V |
| Current (Impp) | 3.25 A |
| Open Circuit Voltage (Voc) | 28.16 V |
| Short Circuit Current (Isc) | 3.45 A |
| Cell Efficiency | ≥ 22 % |
| Cell Material | Mono-Shingle Cells |
| Bypass Diode | Integrated |
| Weight | 4.60 kg |
| Dimensions | 1530 x 275 x 30 mm |
