WATTSTUNDE® SOLA Frame Daylight 100 Wp Long

WATTSTUNDE® SOLA Frame Daylight 100 Wp Long

WS101-23100

€320,11 EUR
€320,11 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

WATTSTUNDE® SOLA Frame DAYLIGHT 100 Wp L – High-Performance Module with SunPower® Back-Contact Technology

The WATTSTUNDE® SOLA Frame DAYLIGHT solar modules are made of high-quality individual components and are built with innovative Back-Contact SunPower® Maxeon cells, which stand out with a cell efficiency of over 24%. Thanks to the increased efficiency of the solar cells, solar energy is guaranteed at all times. This advanced technology ensures optimal energy utilization, making this module particularly suitable for mobile use – whether in a motorhome, garden shed, or any other off-grid system.

Product Advantages at a Glance

  • High Performance: Equipped with SunPower® Back-Contact cells for a cell efficiency of over 24%.
  • Compact and Lightweight Design: Compared to conventional 125 W modules, it requires less weight and surface area.
  • Robust Construction: Anodized, scratch-resistant aluminum hollow chamber profile and tempered glass with lotus effect for maximum durability and longevity.
  • High Compatibility and Easy Installation: Pre-configured with MC4-compatible connectors and a cable connection (IP65), simplifying the installation and wiring of multiple modules.
  • This module is tested according to IEC 61215 and IEC 61730.
  • Extensive Guarantees: 25-year performance warranty on 80% of the output and 10-year product warranty.

Technological Innovations

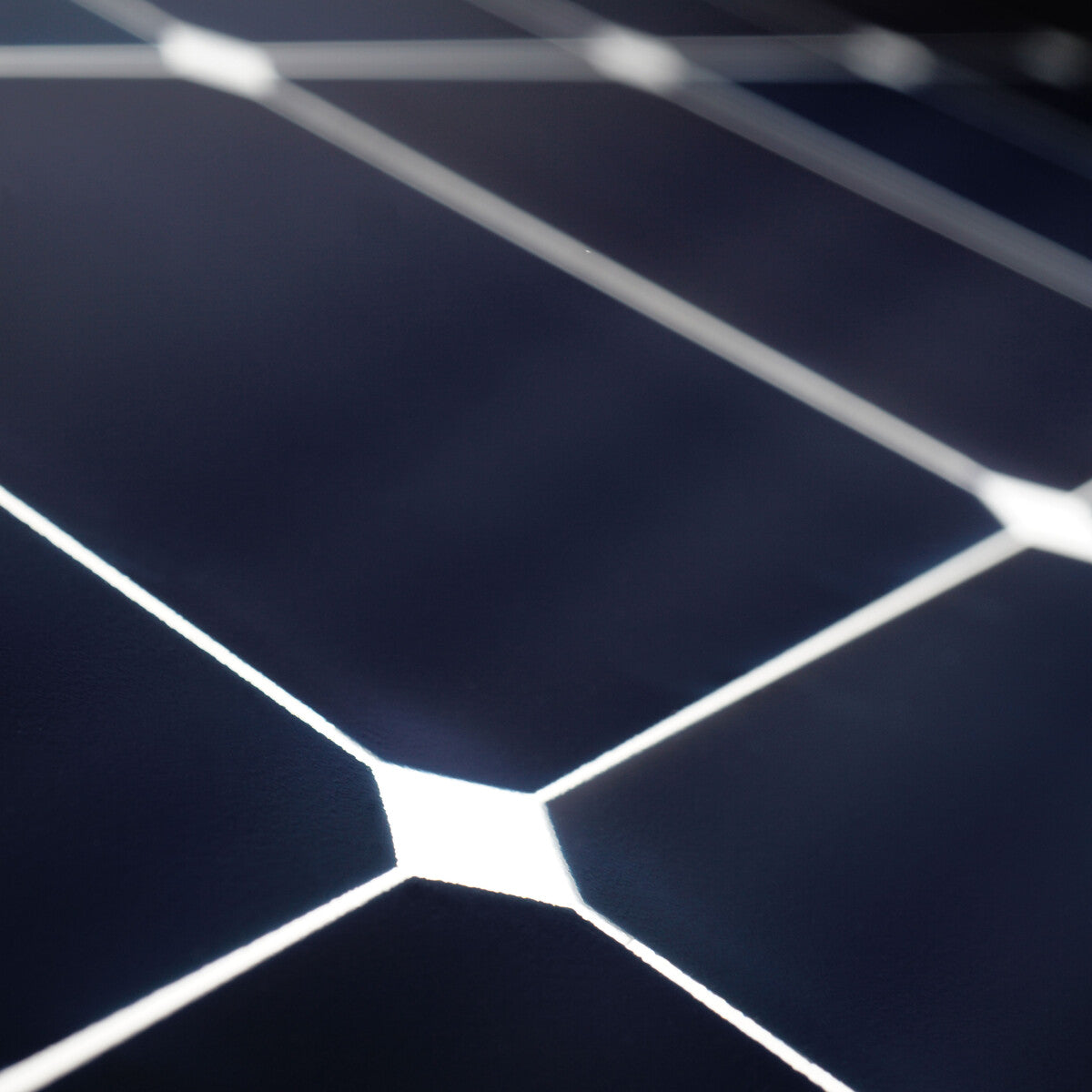

Back-Contact technology eliminates front contacts, reduces shadowing on the cells, and thus increases light absorption and power generation. This innovative configuration ensures reliable energy production even under difficult lighting conditions or partial shading. The integrated bypass diodes play an additional role in optimizing performance under varying lighting conditions.

Your High-Performance Module for Maximum Independence

The WATTSTUNDE® SOLA Frame DAYLIGHT 100 Wp L combines cutting-edge technology, robust construction, and certified safety in a compact, lightweight module. Whether on the roof of your motorhome, in the garden shed, or as part of a larger off-grid system – with SunPower® Maxeon cells and a 25-year performance warranty, you are investing in a module that will provide you with reliable and efficient solar energy in the long term.





Technical Data SOLA Frame Daylight 100 Wp L
Rated Power 100 W
Max. Daily Yield (Summer) 500 Wh/d
Voltage (Umpp) 33.00 V
Current (Impp) 3.03 A
Open Circuit Voltage (Voc) 39.00 V
Short Circuit Current (Isc) 3.22 A
Cell Efficiency ≥ 24 %
Cell Material SunPower Maxeon Cells
Bypass Diode Integrated
Weight 5.45 kg
Dimensions 1185 x 397 x 30 mm
