WATTSTUNDE® SOLA Frame Mono 130 Wp HV

Reliability and Energy Independence with the WATTSTUNDE® SOLA Frame Mono 130 Wp HV Solar Module

The WATTSTUNDE® SOLA Frame Mono 130 Wp HV solar module is the revised successor model with optimized frame dimensions of 1370 × 510 × 30 mm. It impresses with improved compatibility and consistently high performance. Ideal for off-grid solar systems in motorhomes, gardens, or on boats – for anyone looking for a reliable and self-sufficient energy supply.

Product Features in Detail

• Monocrystalline solar module with 130 Wp and a high cell efficiency of 20%.

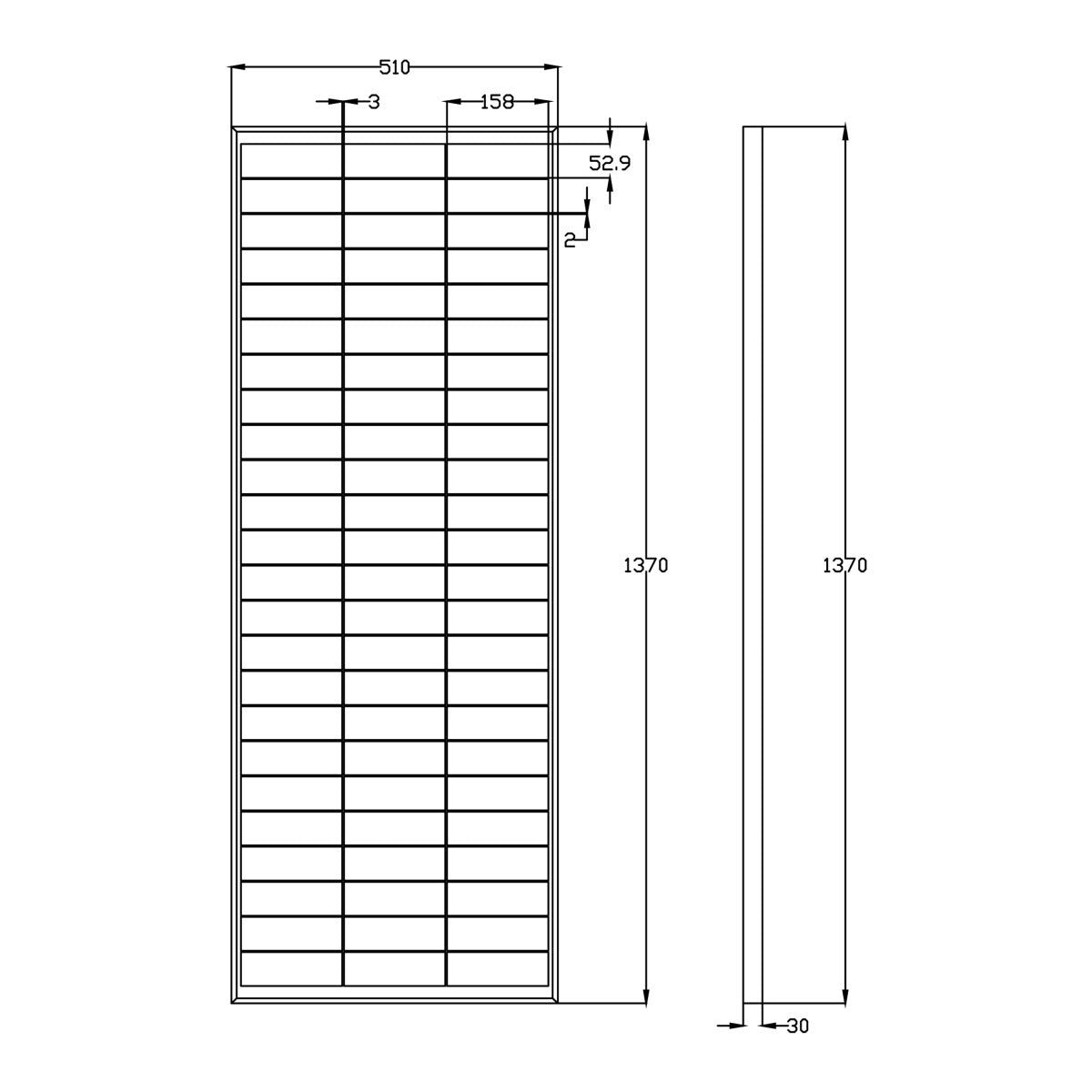

• Revised dimensions: 1370 × 510 × 30 mm for even more flexible application possibilities.
• Equipped with MC4-compatible connectors for easy wiring of multiple modules.
• Integrated bypass diodes ensure yield even with partial shading or low light.

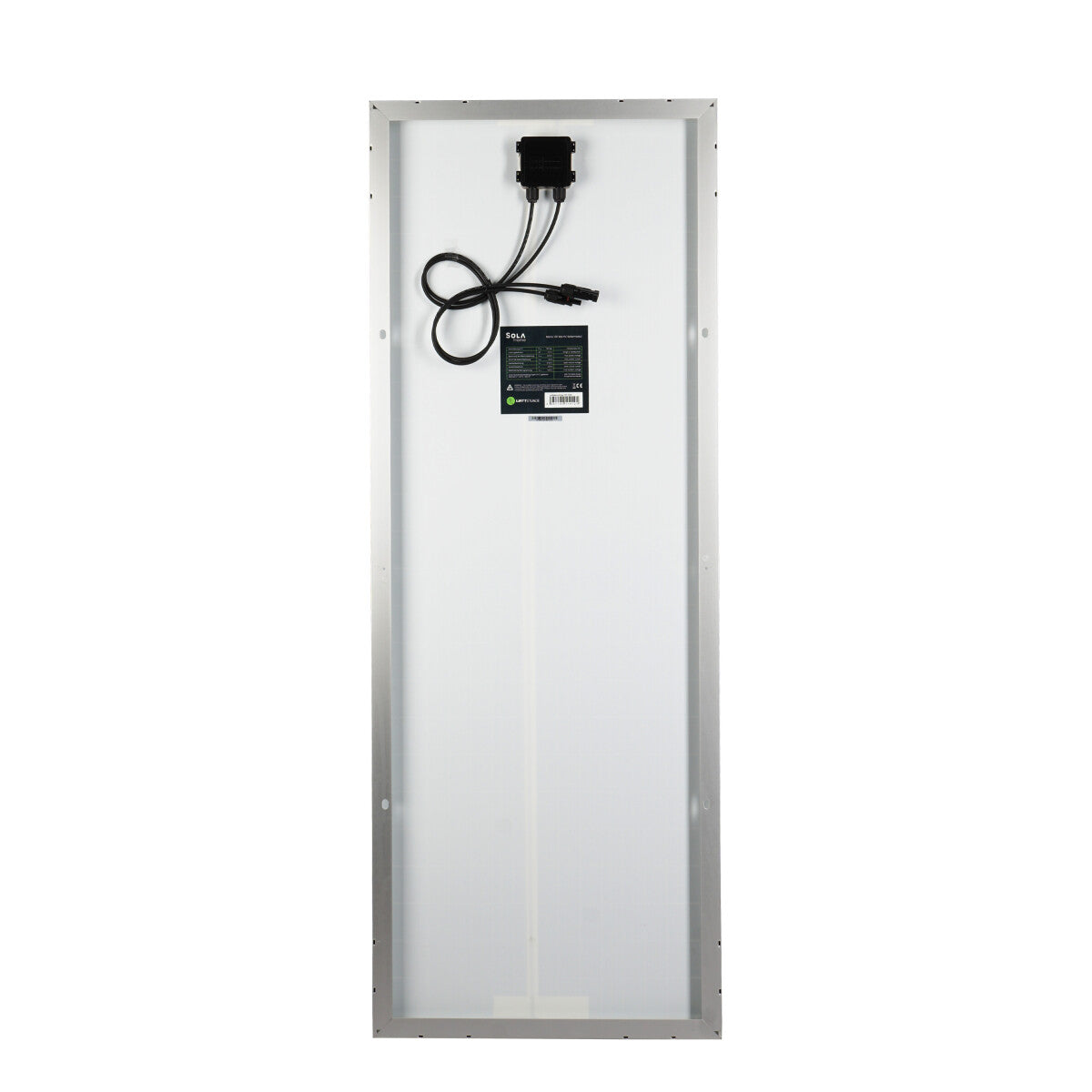

• IP68 junction box – resistant to dust and water.
• 90 cm pre-assembled solar cable – ready for immediate use.
• Stable frame construction with hollow chamber profile for extreme conditions.
• Anti-reflective glass ensures maximum light transmission and yield even in diffuse light.
• This module is tested according to IEC 61215 and IEC 61730.
• Warranty period: 10 years | Performance guarantee: 25 years on 80% of capacity.

Thanks to the improved dimensions and slim design, the module is even easier to install – without compromising stability and performance. Whether on the roof of your camper or in your garden shed: This module reliably provides you with energy, even in less optimal lighting conditions, and minimizes cable losses thanks to high voltage.

Documents & Downloads

• Datasheet SOLA Frame Mono
• Technical Drawing
• Certificate
