WATTSTUNDE® Solar Connection Cable 2x6 mm² Type-MC4/Wire End Ferrule 5 m Black

WATTSTUNDE® Solar Connection Cable 2x6 mm² Type MC4/Ferrule 5 m Black

Professional Solar Special Cable 4mm² - Ready to connect

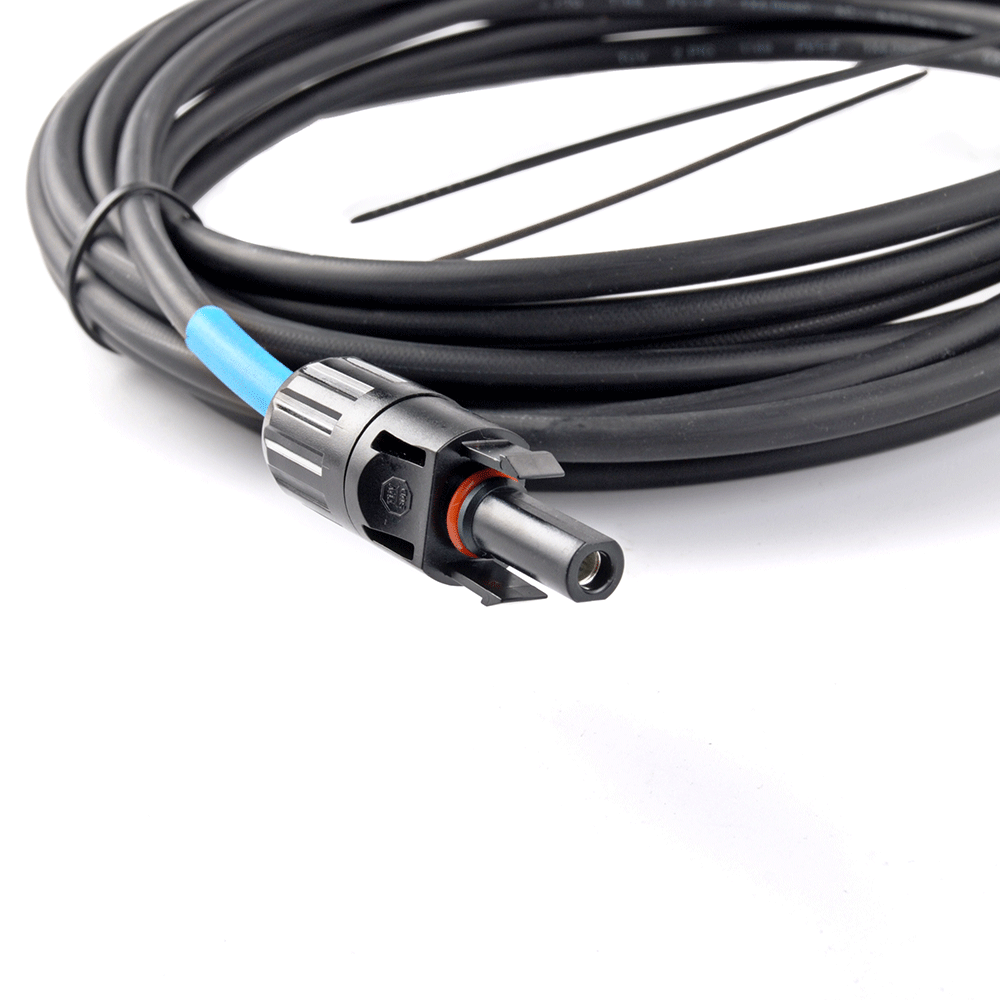

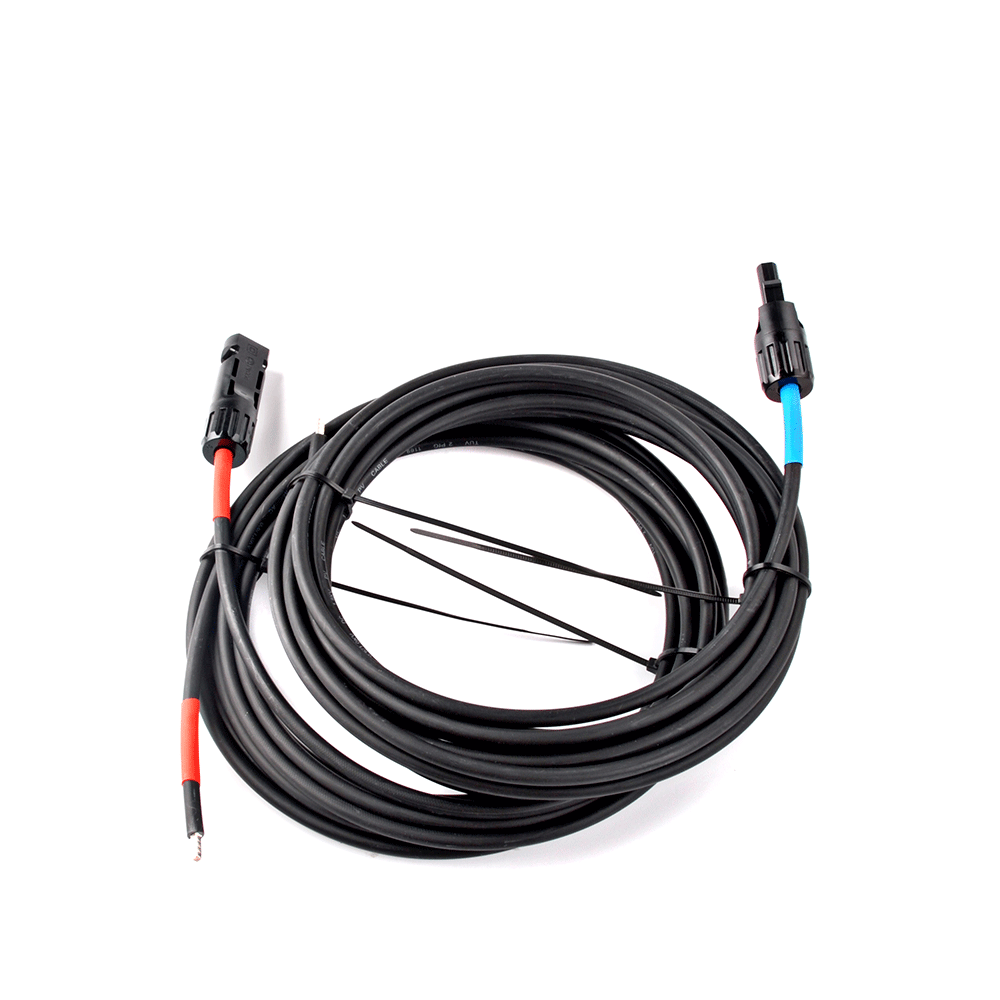

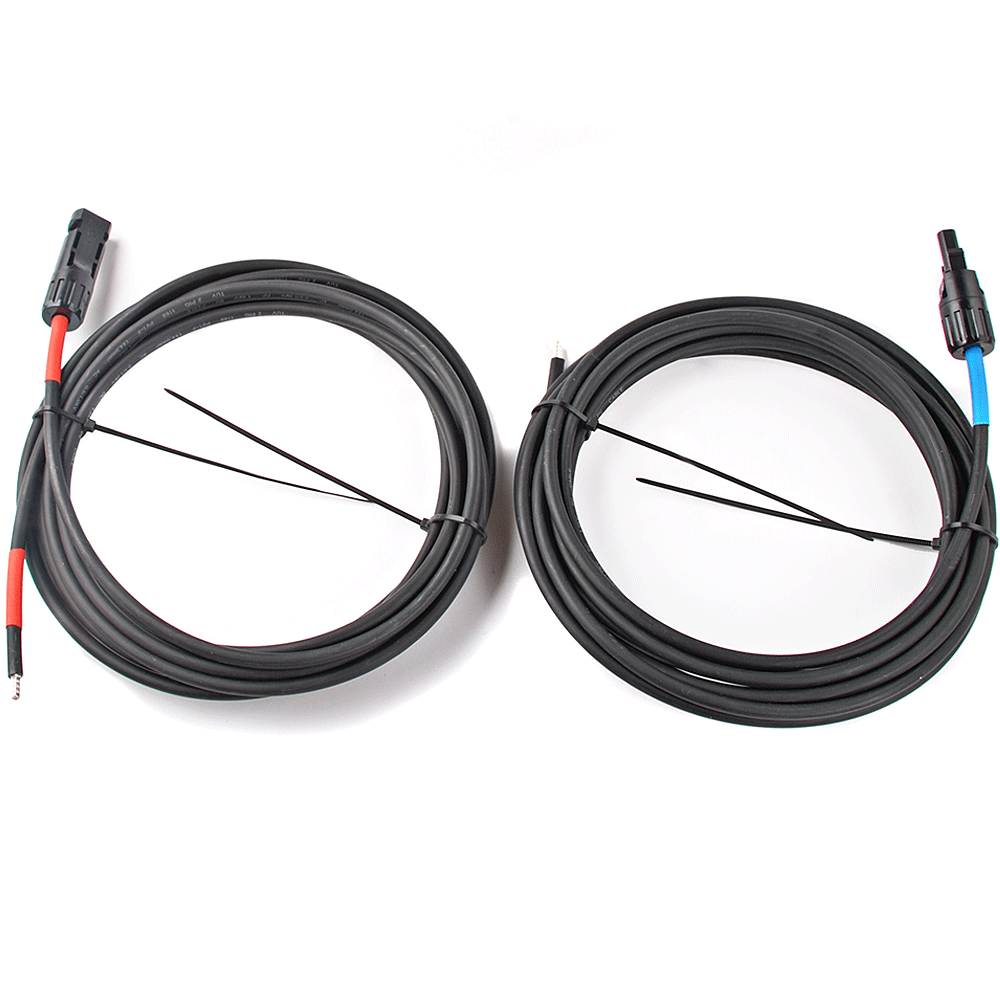

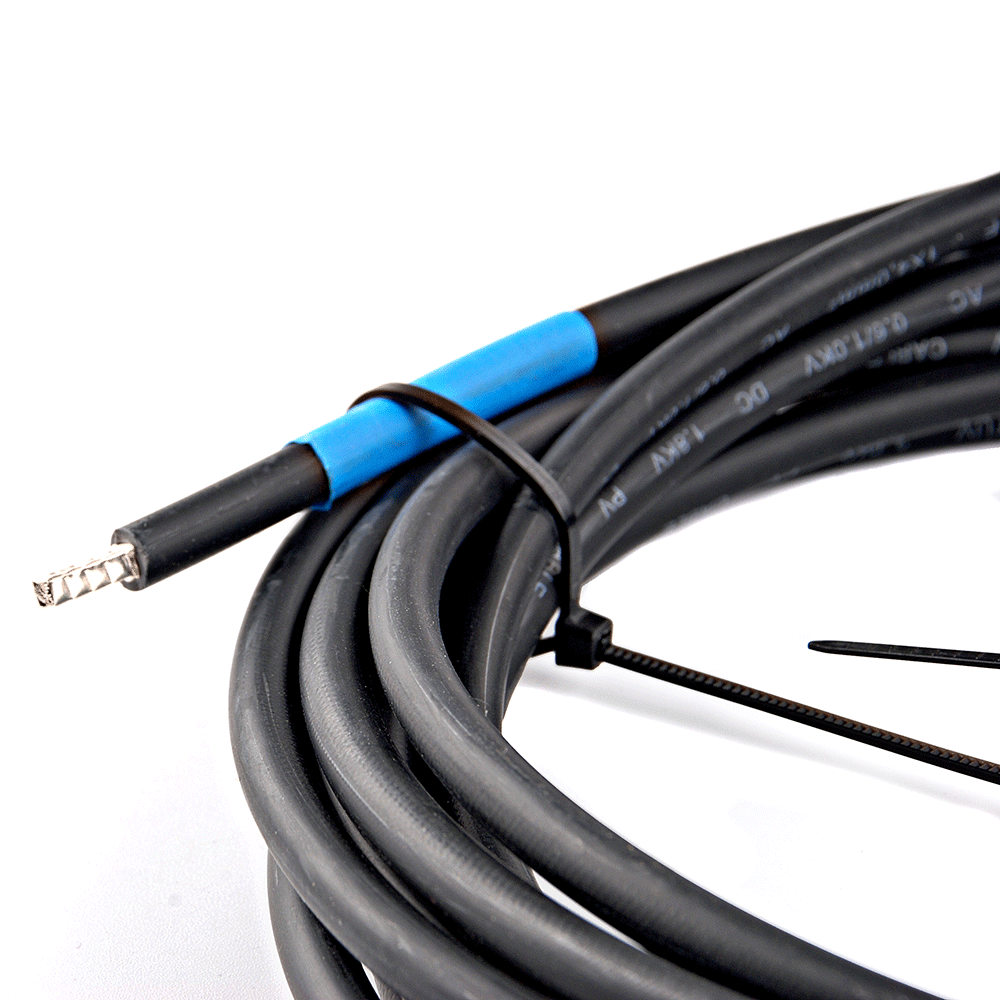

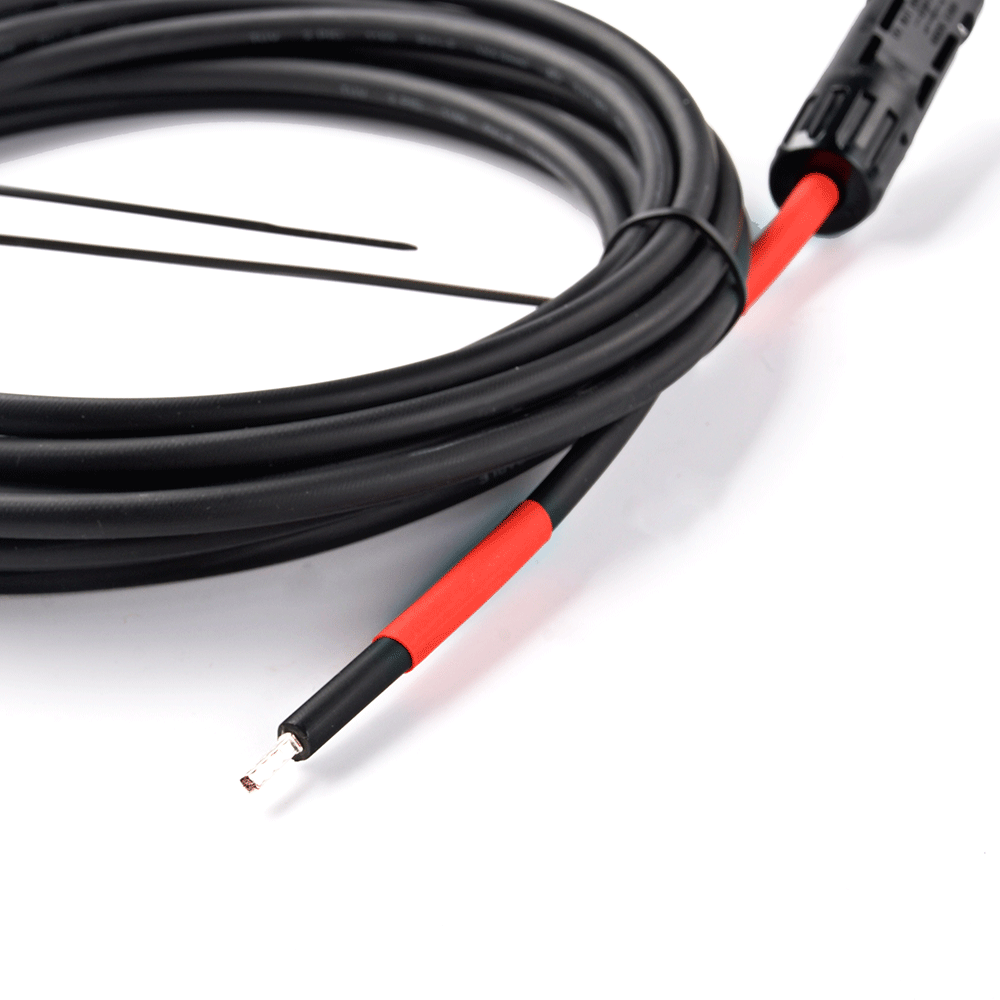

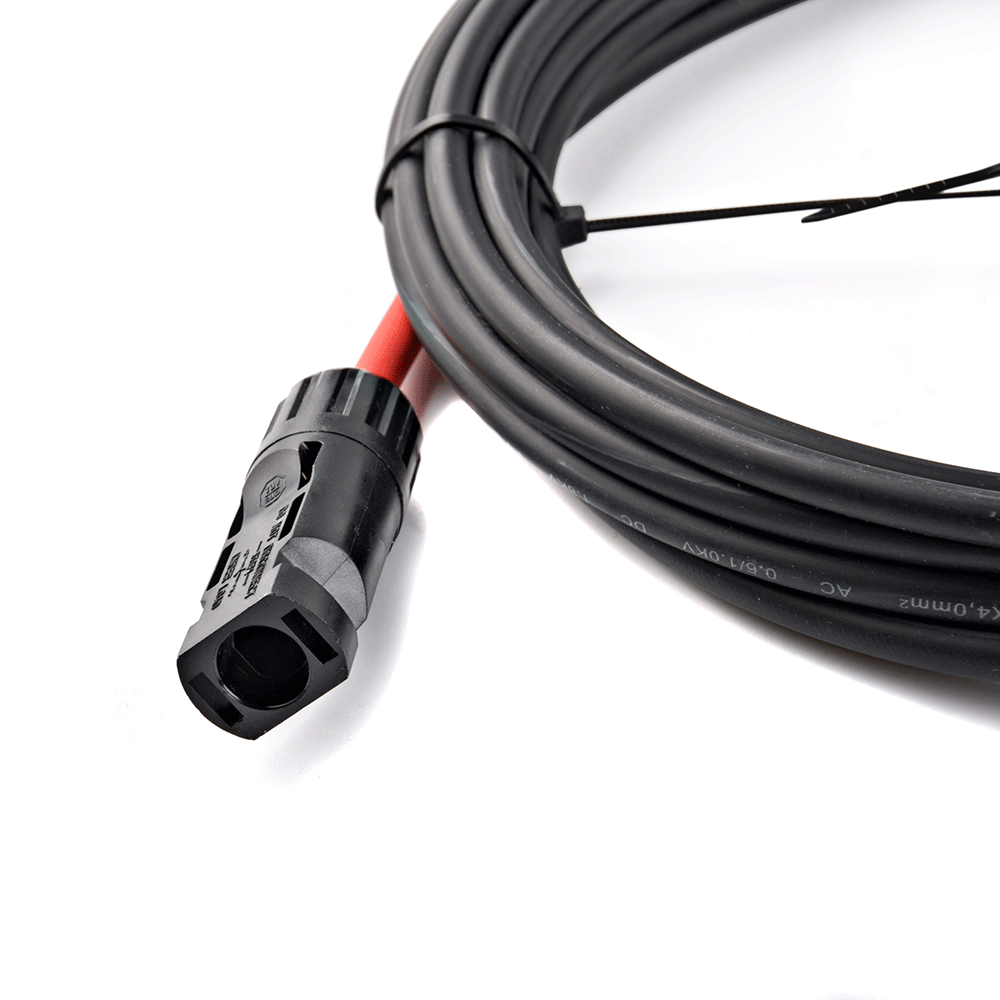

The WATTSTUNDE® solar special cable is equipped with MC4-compatible connectors on the module side and ferrules on the charge controller side. The cable is always supplied in pairs.

The cable is supplied as a connection cable with pre-installed MC4-compatible connectors. These connectors are professionally pre-assembled. We use high-quality special tools to ensure an extremely tensile connection that remains strong even under extreme conditions and is impervious to weather over a very long period.

In the area of cables and wires, we also offer you the highest quality with our extensive product range. Especially in the field of solar energy, the use of special cables with particular properties is crucial. The cables must above all withstand external influences as well as mechanical stress, which requires high quality as an indispensable feature. Solar cables must not only be resistant to ozone, acids and alkalis, UV radiation and ammonia, but also robust, abrasion-resistant and have a flame-retardant sheath.

Our cables ensure reliable and long-lasting functionality. They are characterized by their particularly easy handling, are quick to install and minimize the risk of system failures, which can save valuable budget in the long term. For us as Solarkontor, it is therefore important to pay attention to quality even in the smallest components of your system.

Product Features

• UV and ozone resistant
• Heat resistant up to +90°
• Voltage resistant up to 500 V (depending on application)
• Weather resistant
• Conductor material: Copper
• Insulation material: XLPE (Cross-linked Polyethylene)
• Short-circuit resistant even at high temperatures
• Outer diameter: 5.2 mm
• Manufacturer's warranty: 5 years

Documents & Downloads

• Technical Drawing
