WATTSTUNDE® Solar Panel Mount HSA55/W Aluminum Silver

WATTSTUNDE® Solar Mounting Spoiler Set HSA55/W

WATTSTUNDE® solar module mounts allow you to securely, efficiently, and elegantly attach your modules to your vehicle roof.

Product features of the WATTSTUNDE® Solar Mounting Spoiler Set:

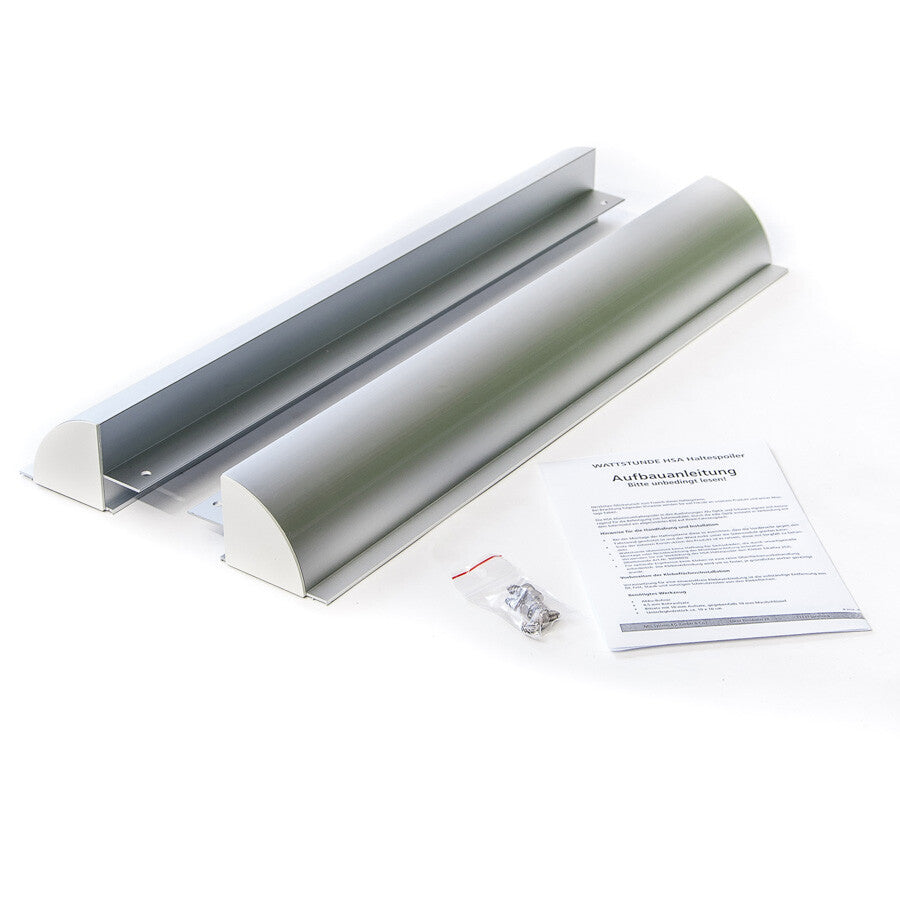

• 2 spoilers in the set
• Length 55 cm
• Aluminum look
• Easy installation
• Anodized surface
• UV and ozone resistant
• Aerodynamic shape prevents driving noise
• Can be mounted with A-J215 L&L MS Polymer construction adhesive
• Extremely weather resistant
• Aluminum

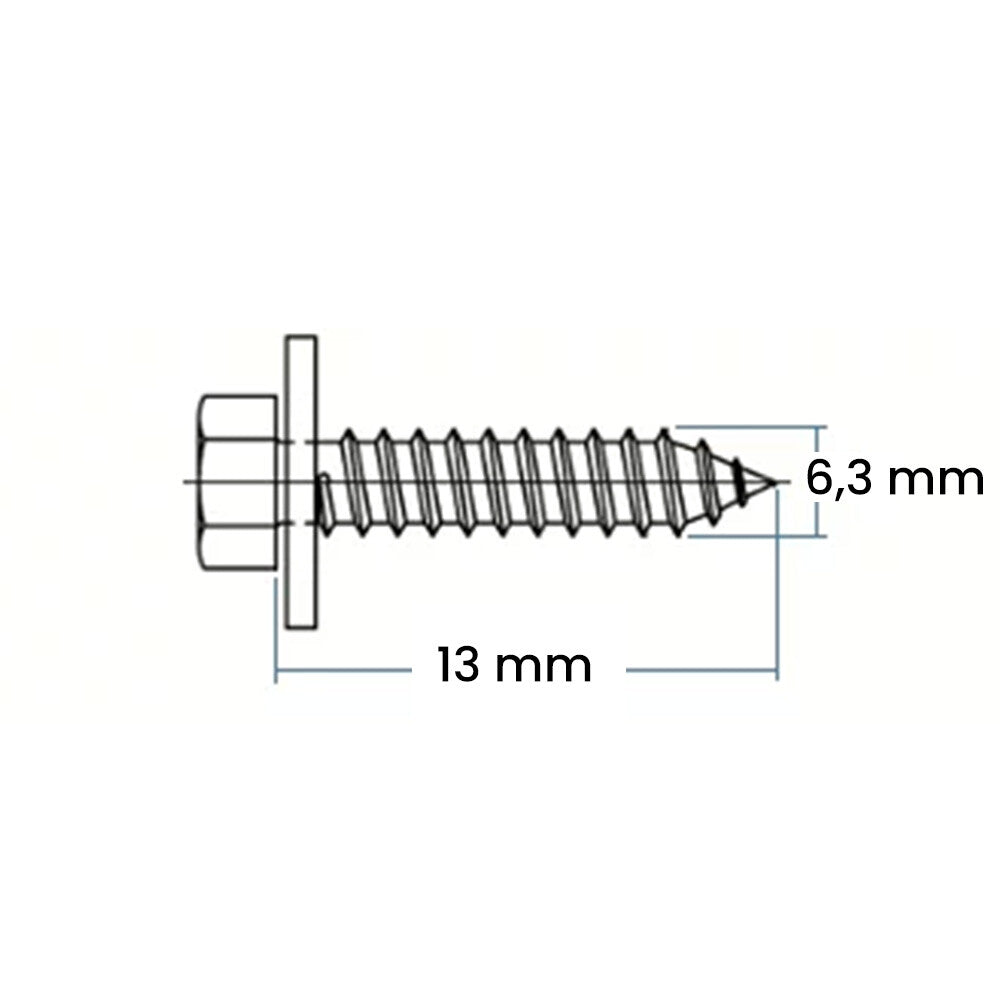

• Incl. DIN stainless steel screw set
• Manufacturer's warranty 10 years

With these aerodynamic mounts, you can attach your solar modules absolutely securely and easily, even without prior knowledge. The mounts have drill holes on both sides of the contact surfaces. The modules can be glued to the mounting spoilers or screwed on. When screwing on the modules, they can be easily removed again if necessary.

For gluing, we recommend the strong A-J215 L&L MS Polymer construction adhesive for a strong adhesive result. We explicitly advise against any sealants for bonding! We explicitly advise against any sealants for bonding!

The profiles provide better wind resistance when driving and, due to the distance between the solar module and the mounting surface, ensure optimal rear ventilation of the module. Thus, compared to direct mounting, a significant increase in performance can be achieved through the cooling of the solar panel. An investment that pays off!

Quality makes the difference, which is why we give a 10-year manufacturer's warranty on these mounting spoilers!

The WATTSTUNDE® mounting spoiler systems and roof feed-throughs differ from many others due to their very high load capacity and their UV and weather-resistant surface sealing. The elegant appearance of the mounting spoilers, in combination with the module, creates a harmonious overall picture on your vehicle roof.

Further information:
To complete your solar island system for your motorhome, in addition to the solar modules, the charge controller, and the mounting spoilers, you also need a roof feed-through to route the cables from the outside of the roof into the living cabin. Here, the connection to the charge controller is then made. Our roof feed-throughs have a PG safety screw connection (IP68) and are UV, weather, and water resistant. All products for this can be found in our shop category Mounting Systems.

Documents & Downloads

• Assembly instructions

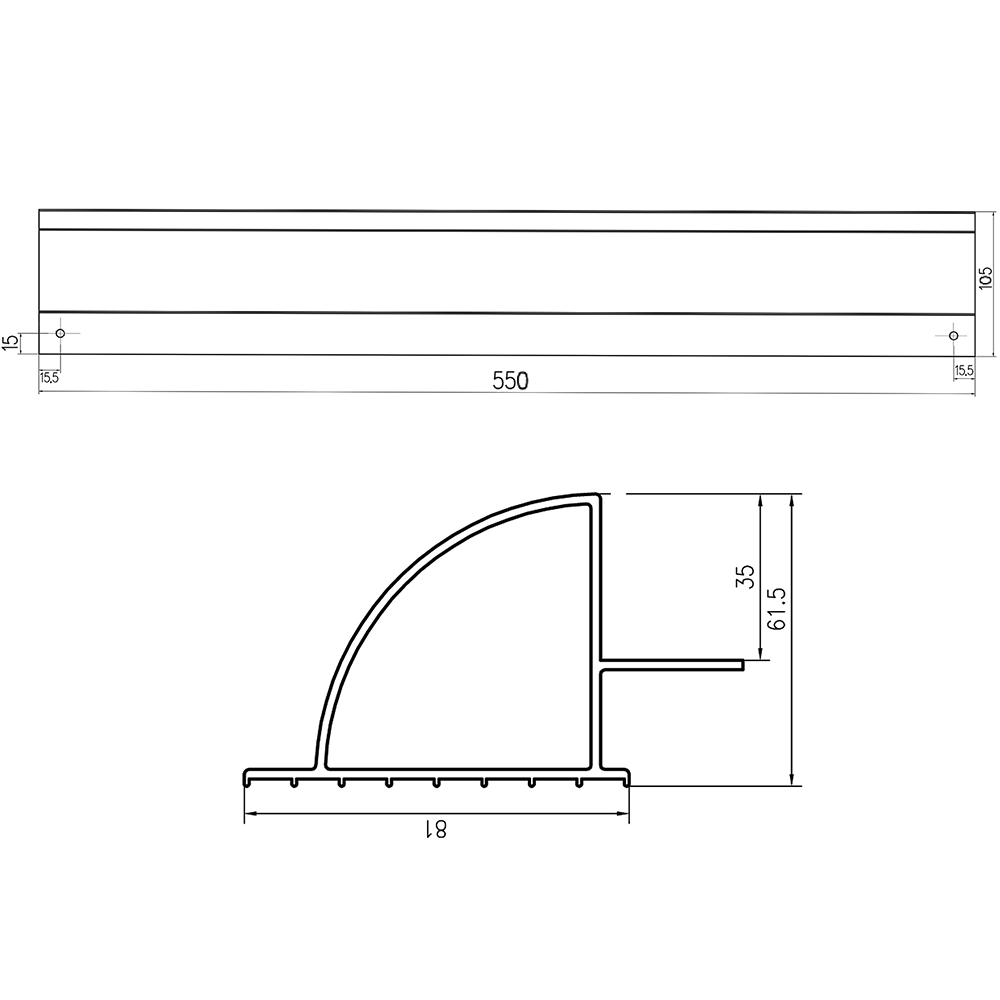

• Technical drawing
