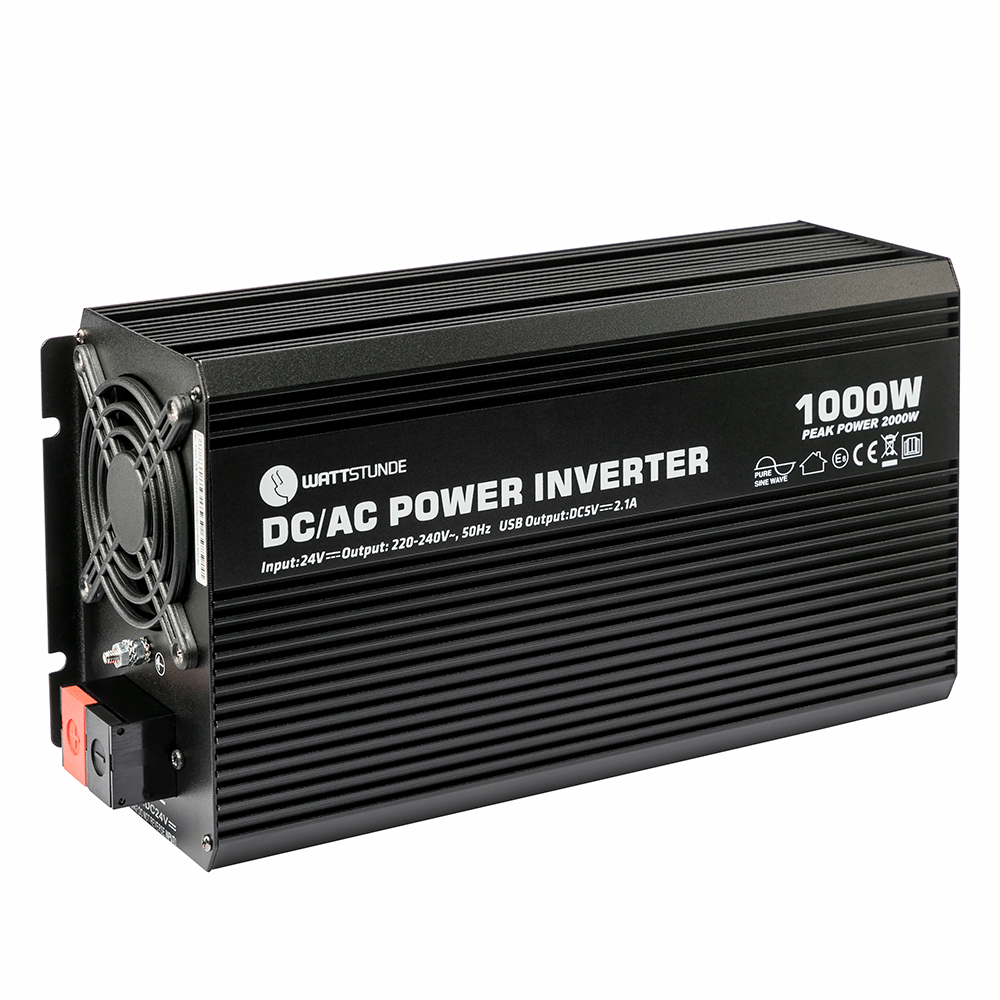

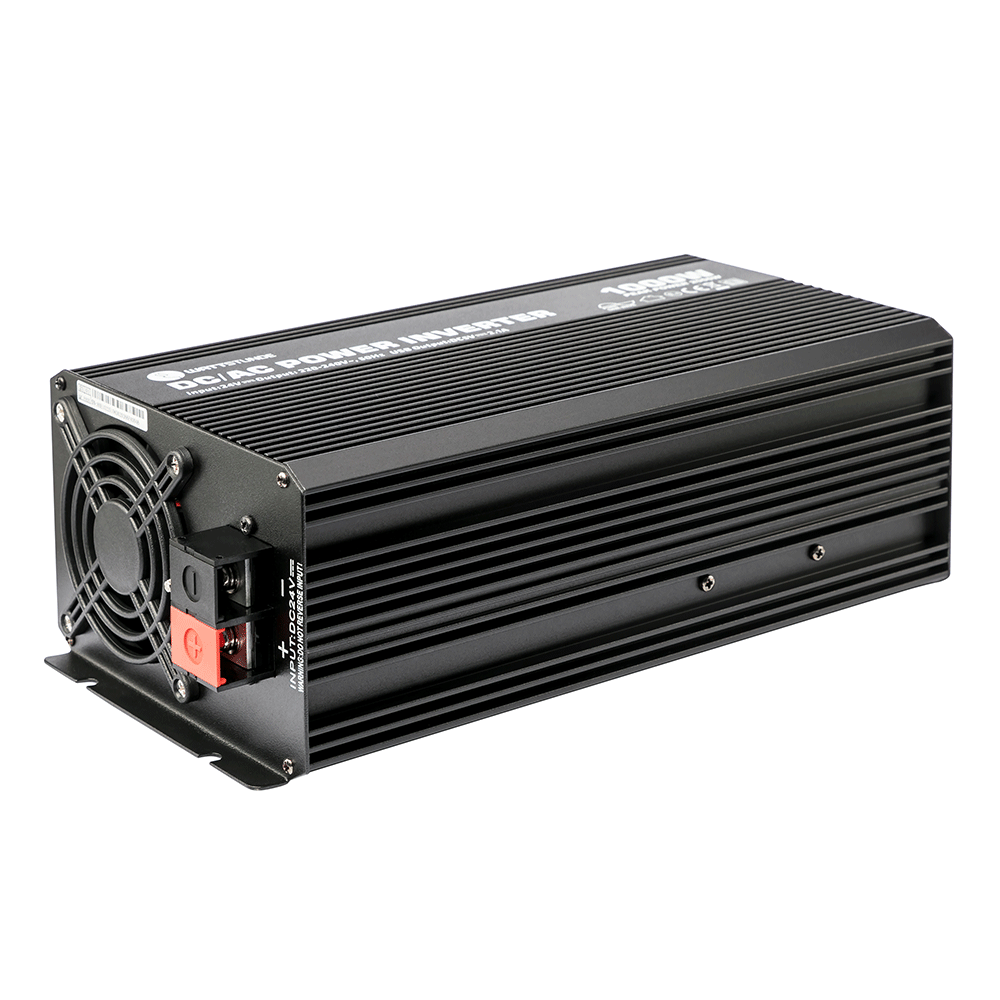

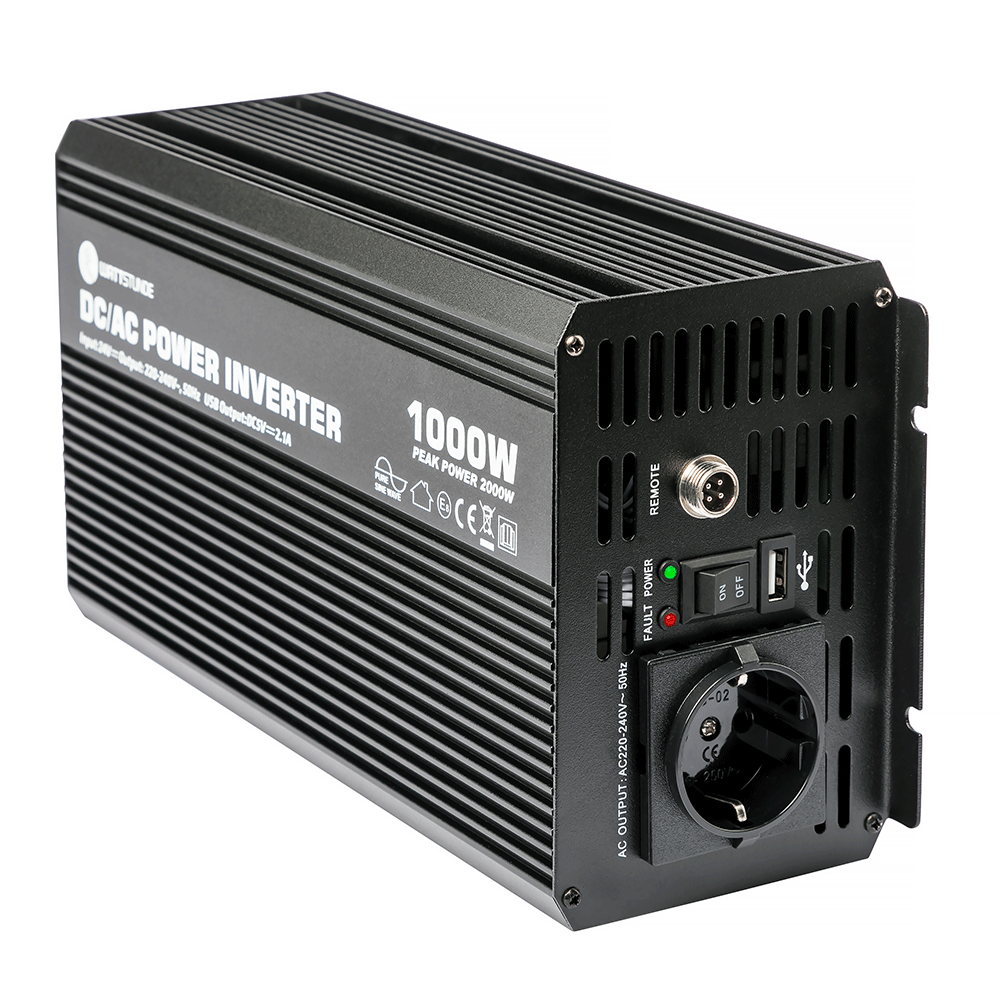

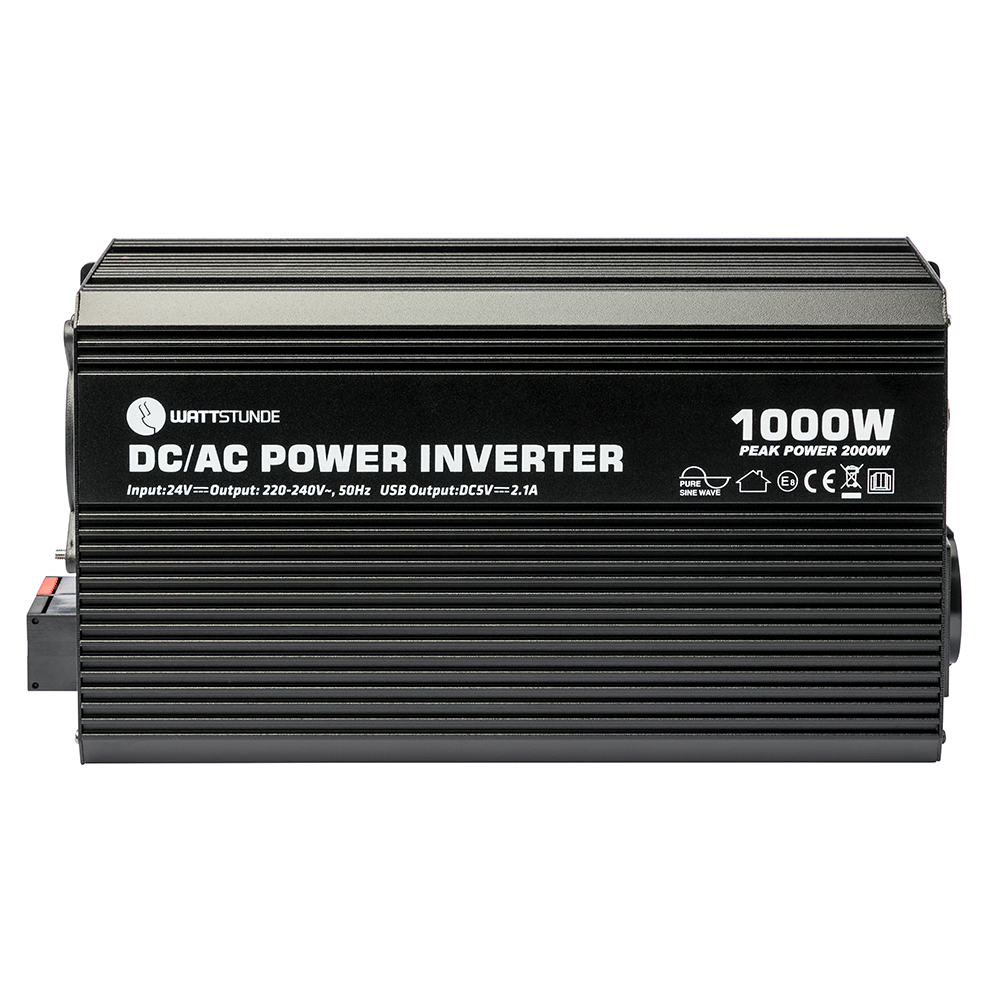

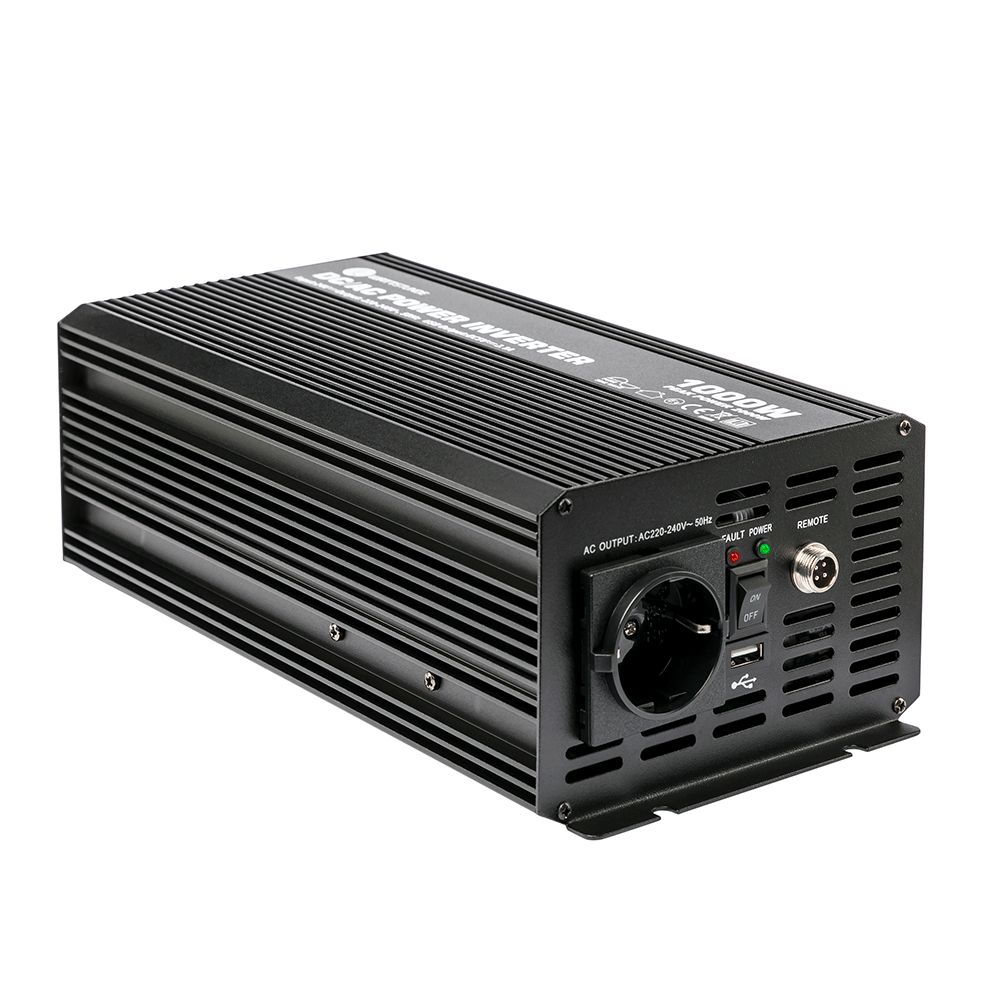

WATTSTUNDE® 1000 W / 2000 W 24 V Sine Wave Inverter WS24/1000SI

WATTSTUNDE® Sine Wave Inverter 1000 W - WS24/1000SI

Compact and reliable inverter with pure sine wave for powering 230 V AC consumers.

Efficient conversion from 24 V (DC) to 230 V (AC)

The WS24/1000SI inverter generates a 230 V AC voltage from the DC voltage of the connected battery, which is ideal for operating 230V household appliances, chargers or other consumers.
Commercial devices such as computers, pumps and fans can be operated just as easily as other small consumers.

The low standby consumption makes it an economical entry-level device when a clean sine wave voltage is required.
Since the fan operates load-controlled, further valuable energy is saved.
The practical USB port allows mobile phones and tablets to be charged directly without an additional power supply unit.

Comfortable all-rounder

The integrated LEDs show the operating status, so that the device's status is always visible.
If the battery capacity runs low, an audible signal warns the user so that the load can be switched off in time.
If the battery voltage falls below a critical level, the inverter switches itself off automatically to prevent deep discharge of the battery.

The integrated fan runs quietly and cools the microelectronics, so that even large loads can be operated safely.
All cables required for connection are included with the device, so that installation can begin immediately.

The device is characterized by the following:

• Pure sine wave
• Converts 24V to 230V

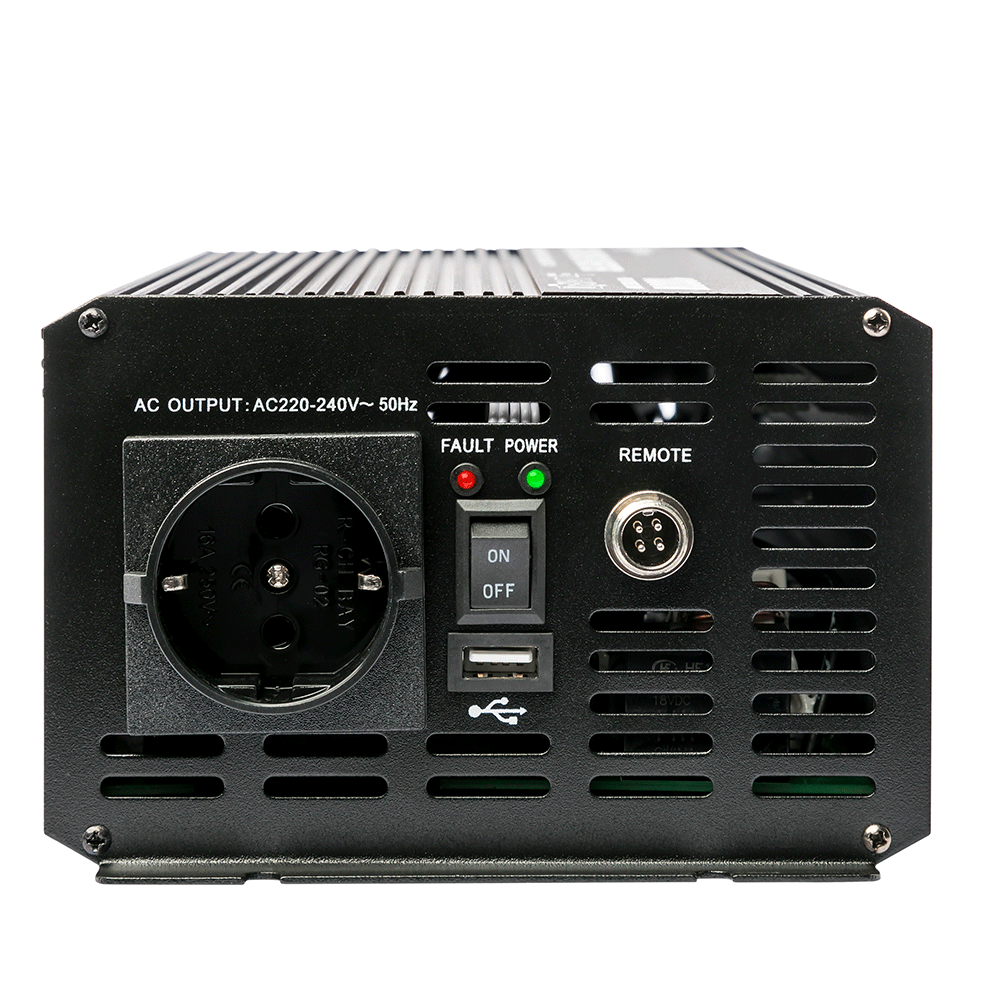

• 1 x Schuko socket on the device
• 1 x USB socket on the device
• Manual on/off switch
• Overheat protection functions
• Automatic shutdown in case of too low battery capacity (deep discharge protection)
• Intelligent SoftStart function also enables the operation of inductive consumers
• Load-controlled fans
• Power like at home (AC voltage and Schuko socket)
• Warranty period: 2 years

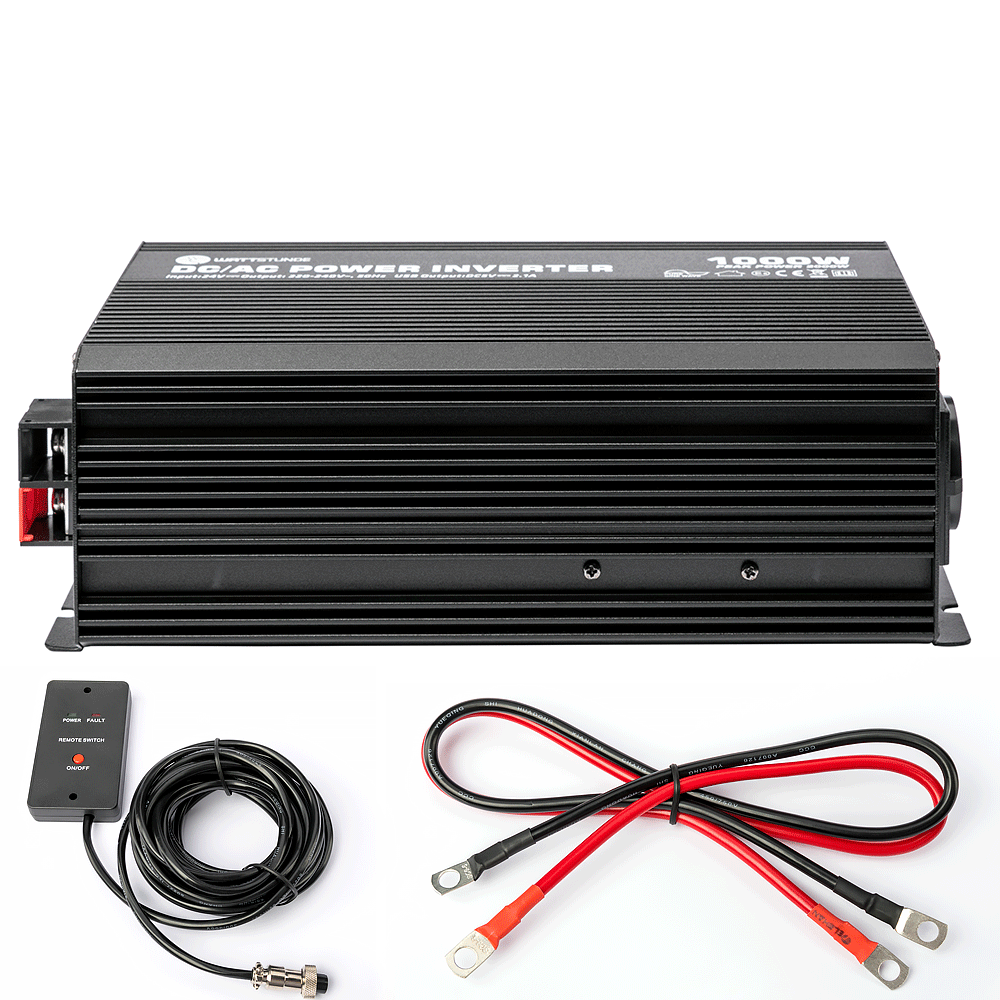

Scope of delivery

• 1x WATTSTUNDE® Sine Wave Inverter 1000 W WS24/1000SI
• 1x Battery connection cable 6 mm² 53 cm (with M8 ring terminals)
• 4x Flat fuse
• User manual (German / English)

Note:

Observe starting currents!
When connecting inductive devices (hotplate, drill, refrigerator, etc.), note that these often require 3–10 times higher power for a short time to start up than indicated on the type plate.
The maximum short-term power demand must not exceed the maximum power of the inverter!


Documents & Downloads

• Manual WS24/1000SI
• Certificate
