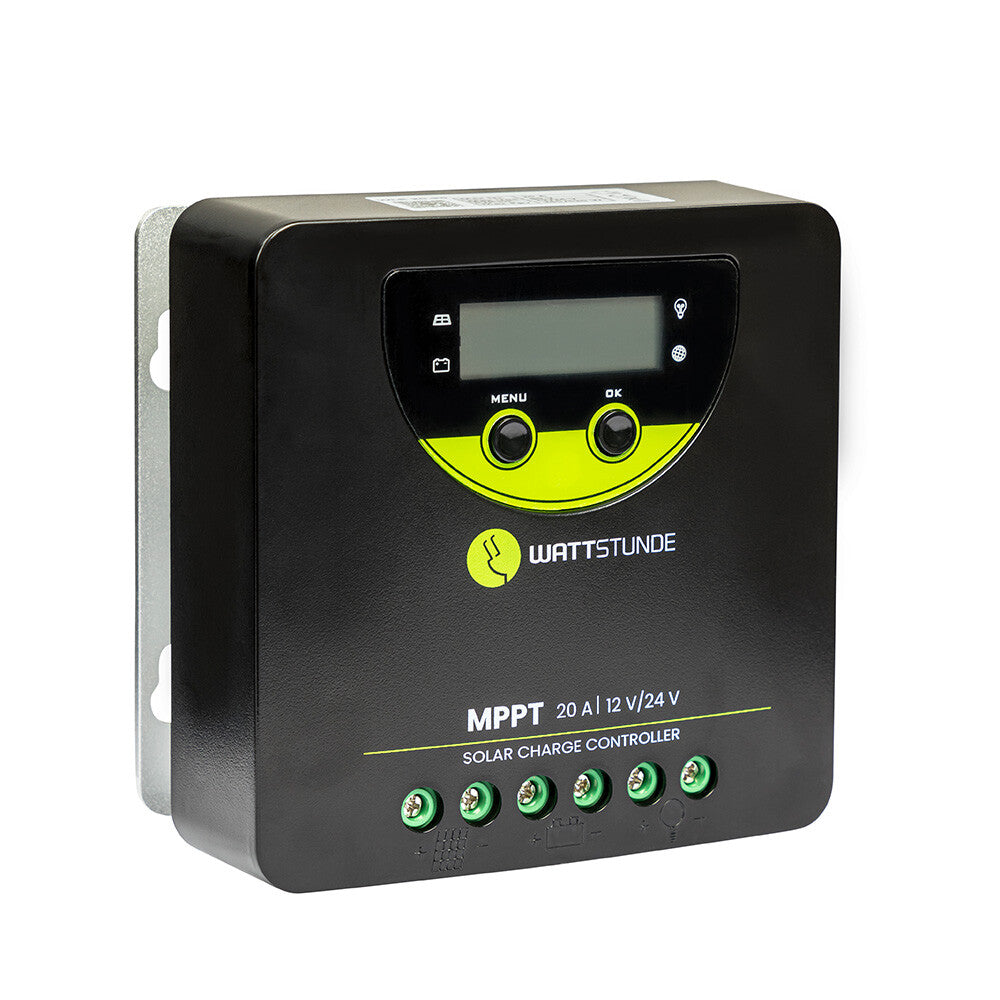

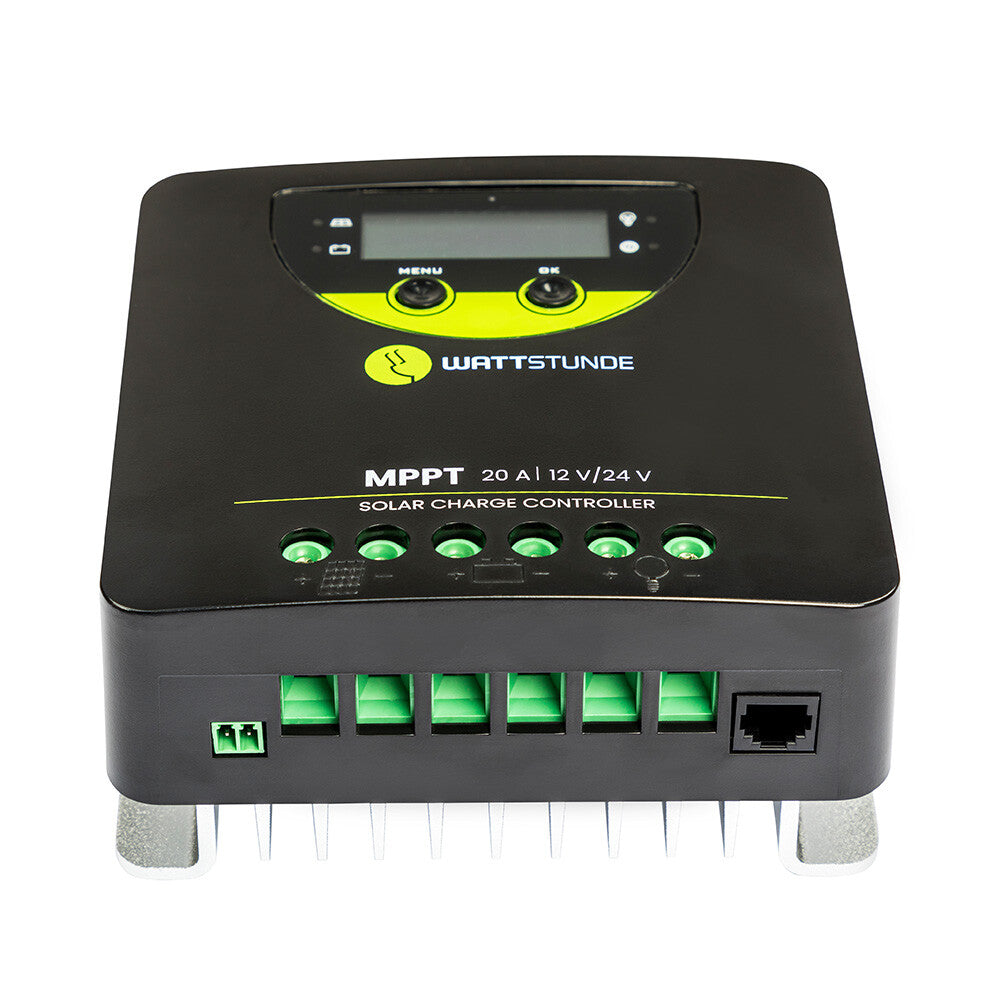

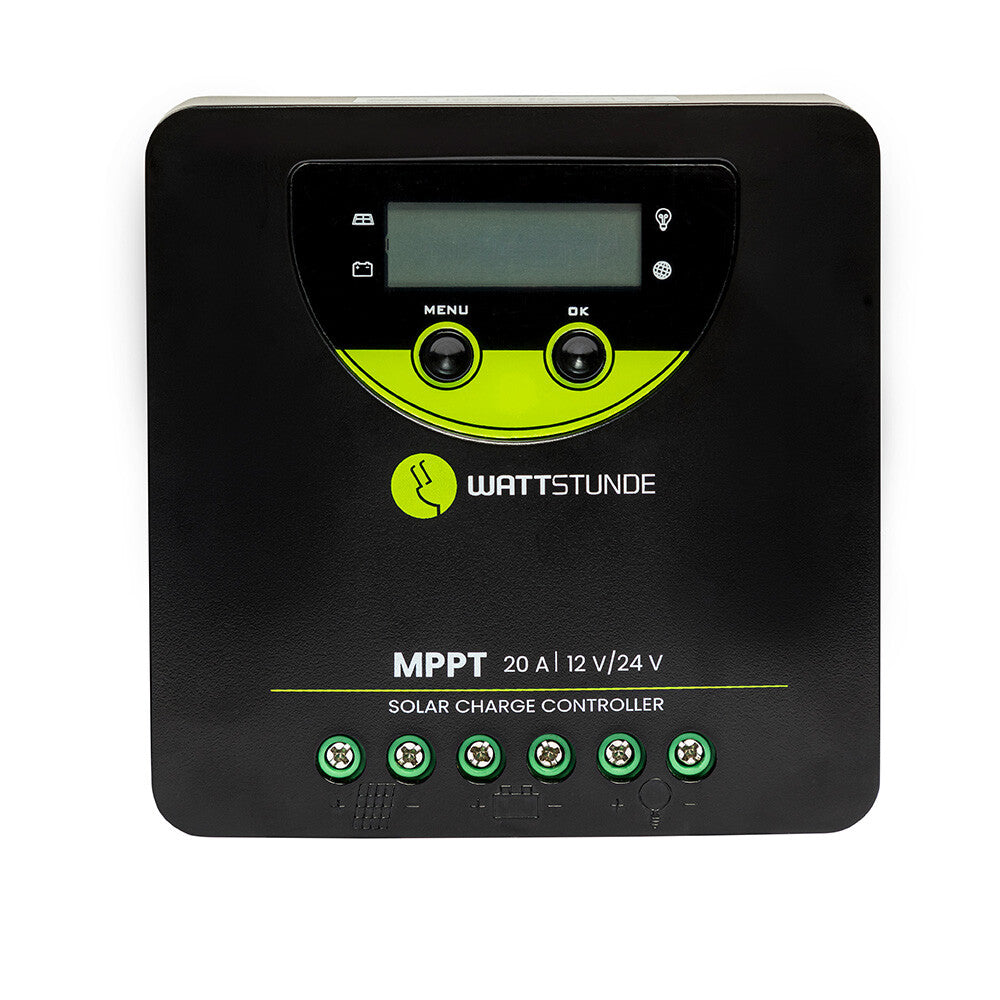

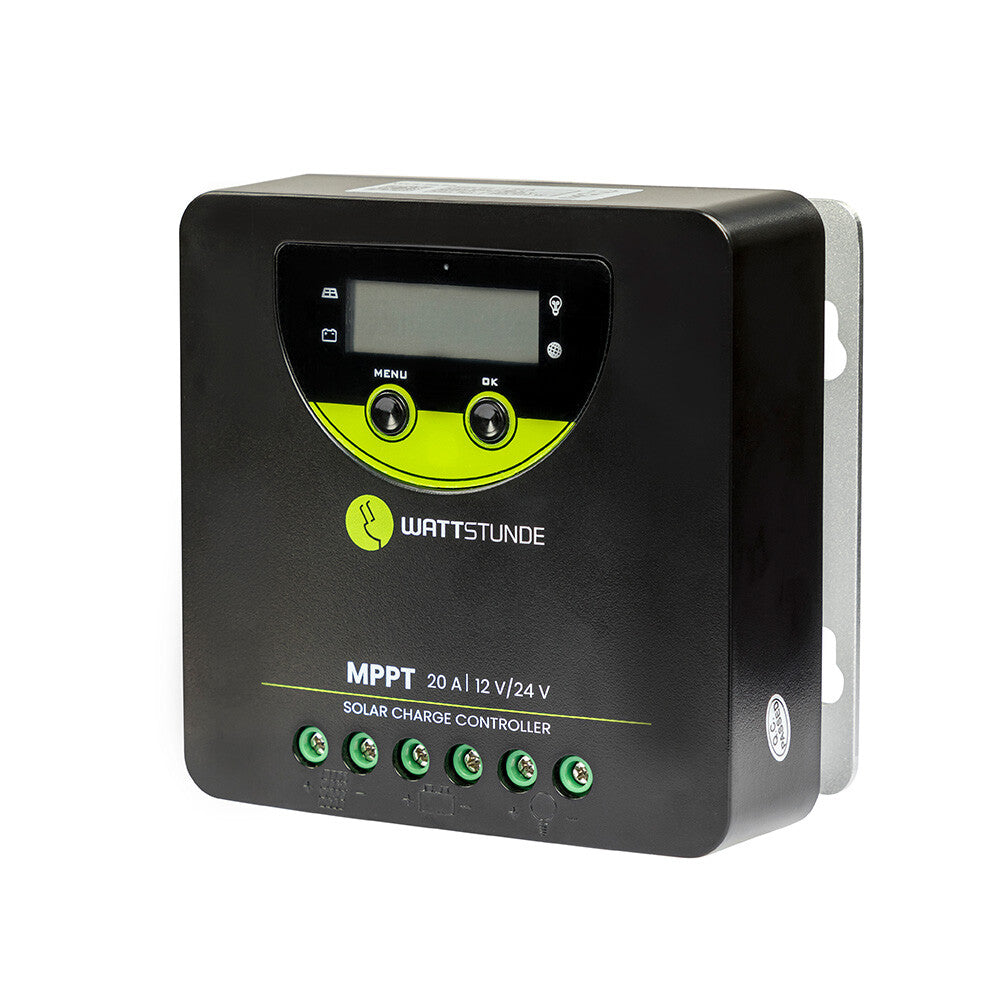

WATTSTUNDE® 20 A 90 V MPPT Solar Charge Controller WLR-BT 20.90 MPPT 12 / 24 V

MPPT Solar Charge Controller with LCD and Bluetooth Function from WATTSTUNDE®

Generate Your Own Power with the Advanced MPPT Solar Charge Controller from WATTSTUNDE® – Perfect for Your Motorhome, Caravan, Boat, and Any Off-Grid Solar System!

The MPPT solar charge controller from WATTSTUNDE® is the central element of any solar system, connecting PV modules, consumers, and the solar battery. With innovative MPPT (Maximum Power Point Tracking) technology, the variable voltage of the solar modules is converted into a constant voltage to efficiently and gently charge your battery. Even in less optimal light conditions, energy generation remains efficient.

The WLR-BT 20.90 from the MPPT series stands out with its new LCD display, which clearly presents a variety of information and measured values. Get precise data on the battery charge level or load current to always have a comprehensive overview of your solar system. This allows you to check your system at any time and make adjustments if necessary.

Real-time display of energy flows and a statistics function for viewing total solar yields make the charge controller particularly user-friendly.

The charge controller charges all common battery types (lead-acid, AGM, gel, lithium) quickly and gently. The integrated undervoltage protection prevents dangerous deep discharges of the battery, while the intelligent load cut-off disconnects connected consumers when the battery's charge status is critical.

Maximize your solar yields with the smart MPPT technology of the WLR 20.90 from WATTSTUNDE®. This technology optimizes the operating point of the solar modules several times per second and efficiently converts voltage surpluses into increased charging current. This leads to shorter charging times and maximum power output – with up to 30% more yield compared to conventional PWM charge controllers.

Even in unfavorable light conditions, such as overcast skies or diffuse light, the MPPT charge controller achieves remarkable energy yields. Automatic recognition of the system voltage (12 or 24 V) and an external temperature sensor, which adjusts the charging voltage to the ambient temperature, ensure optimized charging performance. Overload and overcharge protection as well as reverse current protection for the solar modules provide additional safety for your system.

Highlight:

View data live on your smartphone! With a Bluetooth-enabled smartphone, you can view many data in real time. Use the wireless connection to easily set up, monitor, and update your controller – all conveniently from your Apple or Android smartphone, tablet, or other devices.
