WATTSTUNDE® 300 W / 600 W 12 V Sine Wave Inverter WS12/300SI

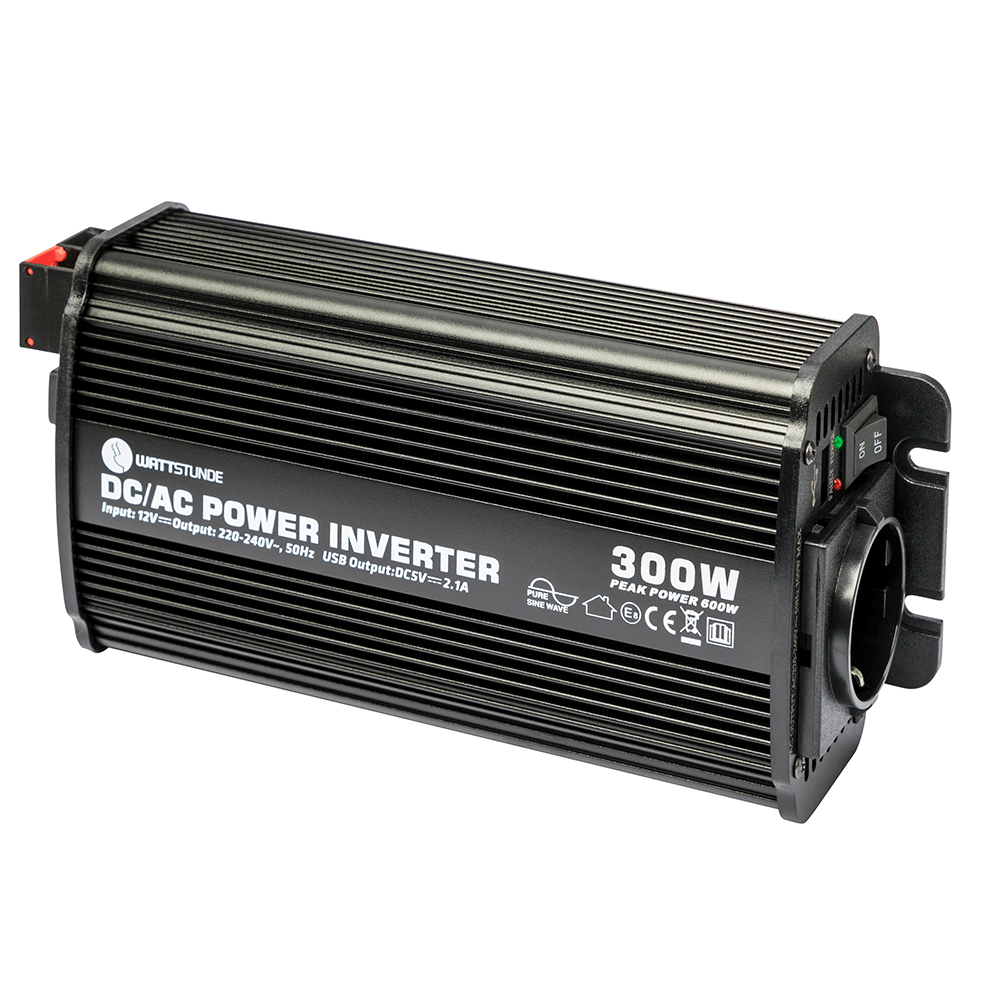

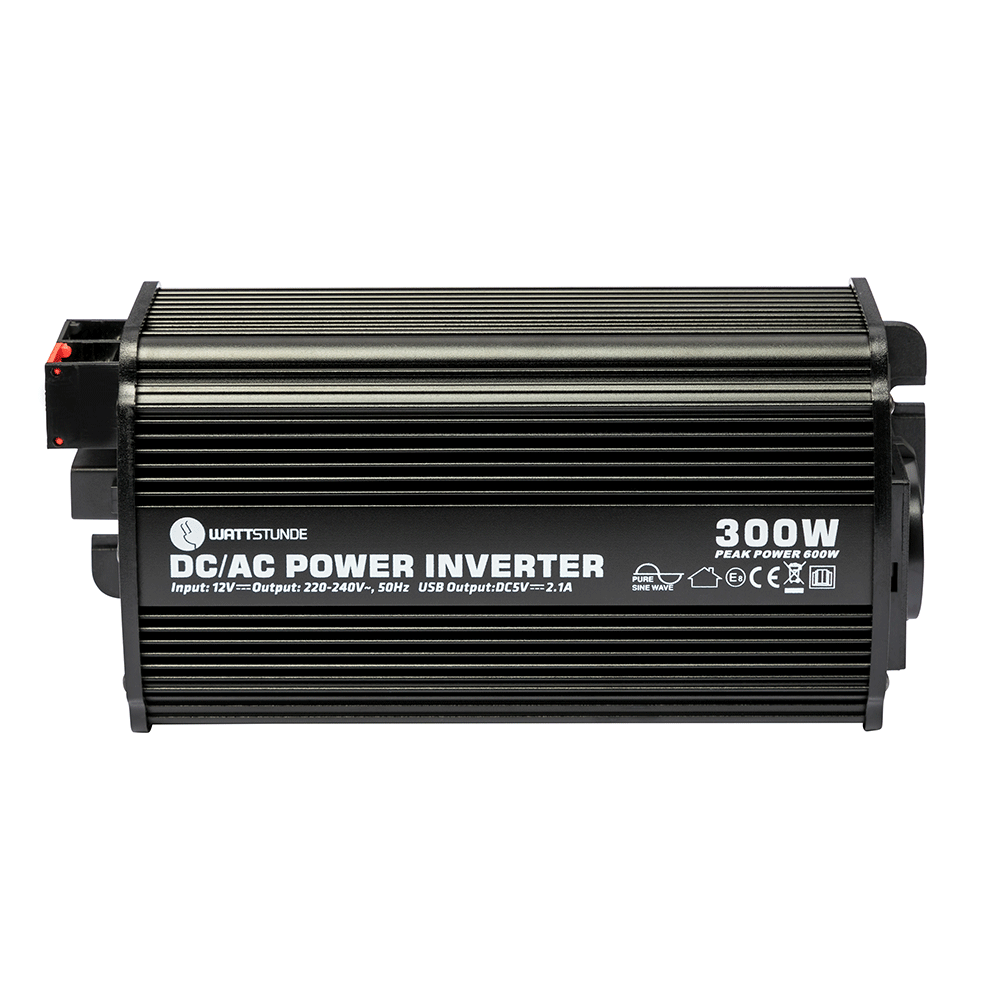

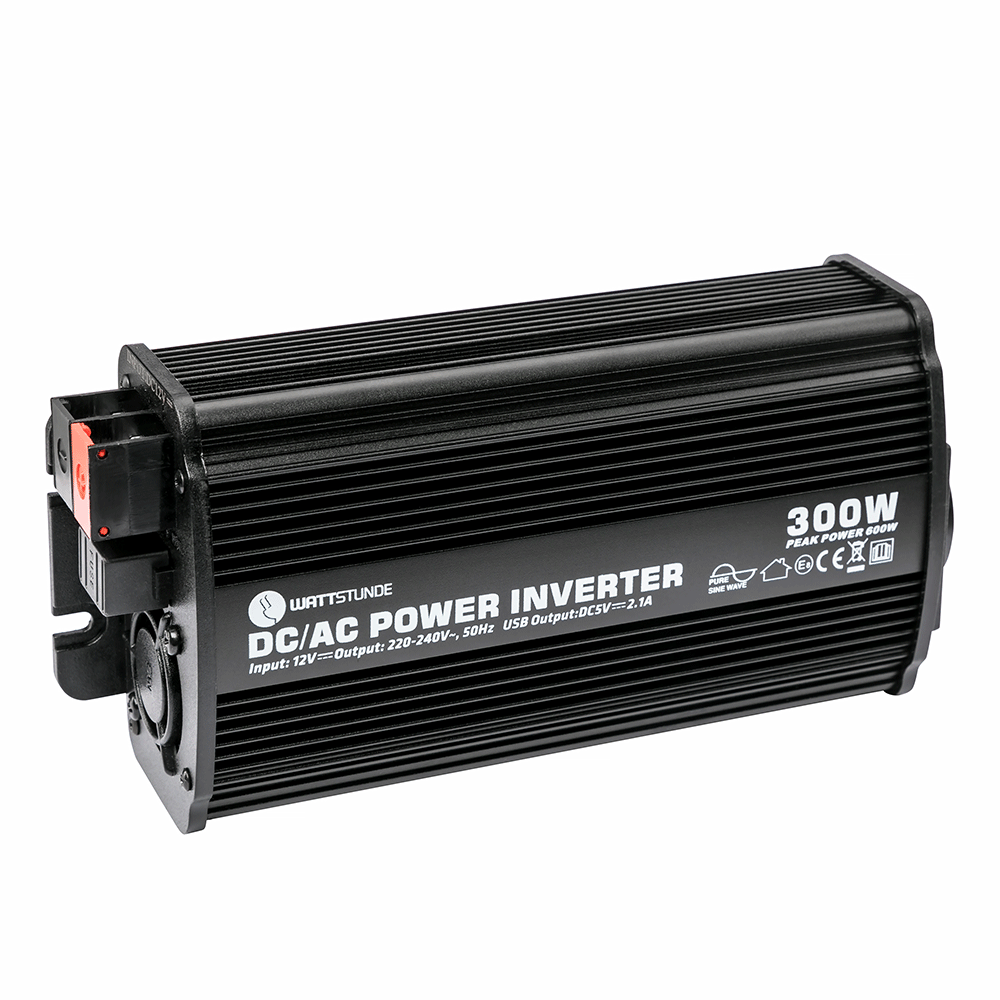

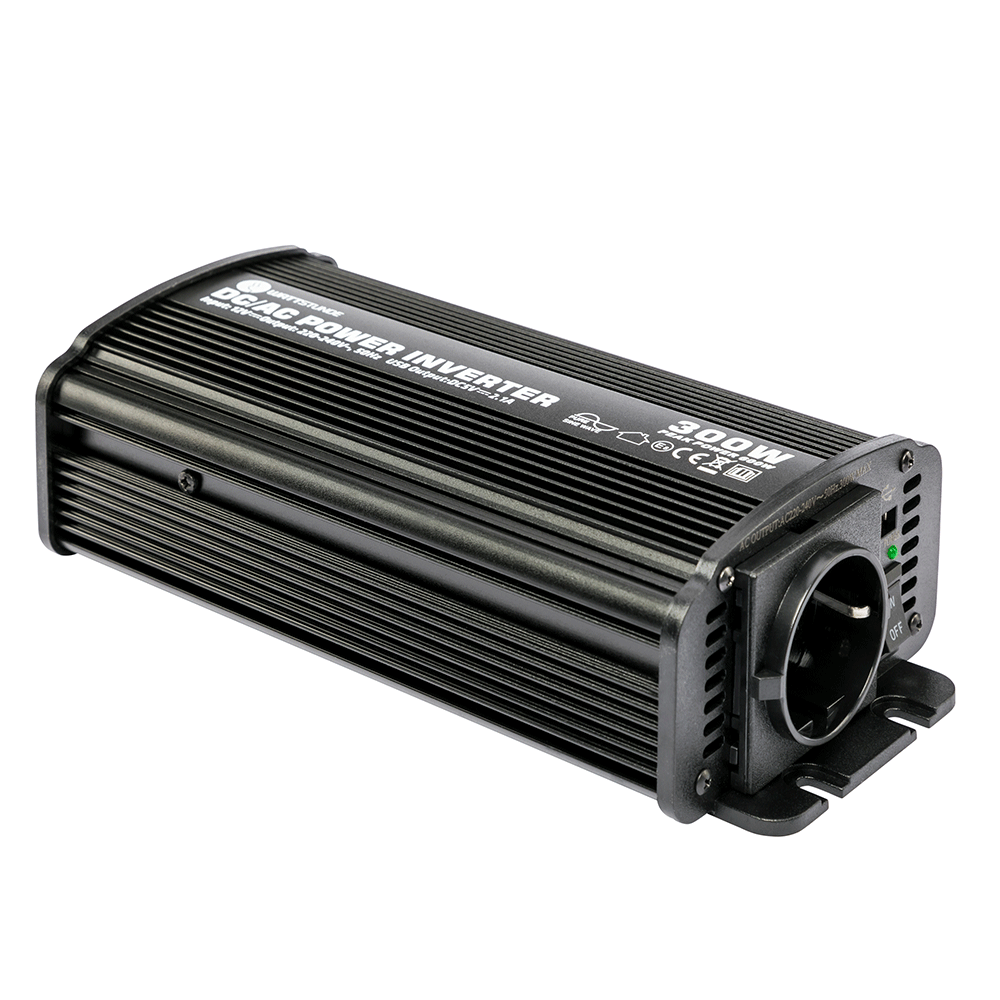

WATTSTUNDE® Sine Wave Inverter 300 W - WS12/300SI

Compact and reliable inverter with pure sine wave for powering 230 V AC consumers.

Efficient conversion of 12 V (DC) to 230 V (AC)

The WS12/300SI inverter converts the DC voltage of the connected battery into 230 V AC voltage, which is ideal for operating 230 V household appliances, chargers, or other consumers.
Common devices such as computers, pumps, and fans can be operated just as easily as other small consumers.

The low standby consumption makes it an economical entry-level device when a clean sine wave voltage is required.
Since the fan is load-controlled, further valuable energy is saved.
The practical USB port allows charging cell phones and tablets directly without an additional power supply.

Comfortable all-rounder

The integrated LEDs indicate the operating status, so the device's status is always visible.
If the battery capacity runs low, an acoustic signal warns the user so that the load can be switched off in time.
If the battery voltage falls below a critical level, the inverter switches itself off automatically to prevent deep discharge of the battery.

The integrated fan runs quietly and cools the microelectronics, so even large loads can be operated safely.
All cables required for connection are included with the device, so installation can begin immediately.

The device is characterized by the following:

• Pure sine wave
• Converts 12 V to 230 V

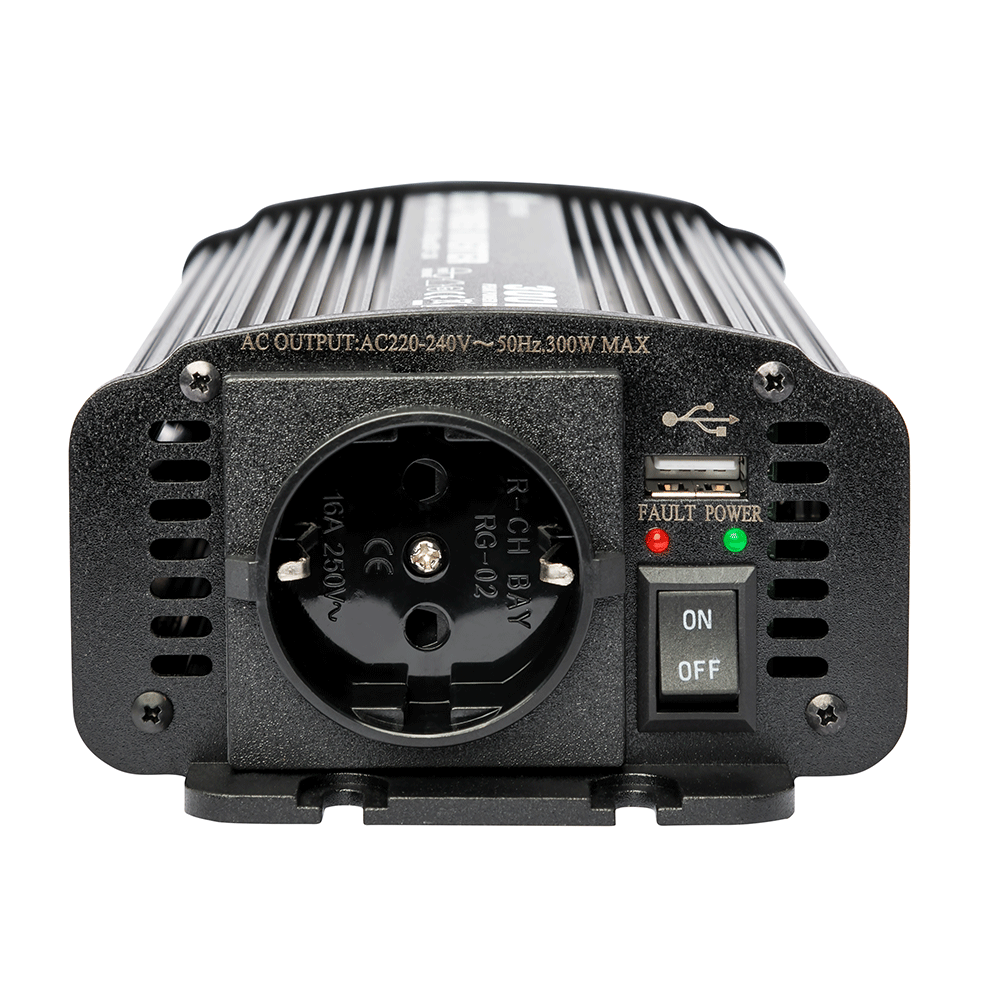

• 1 x Schuko socket on the device
• 1 x USB
• Manual on/off switch
• Overheat protection functions
• Automatic shutdown when battery capacity is too low (deep discharge protection)
• Intelligent SoftStart function also allows operating inductive consumers

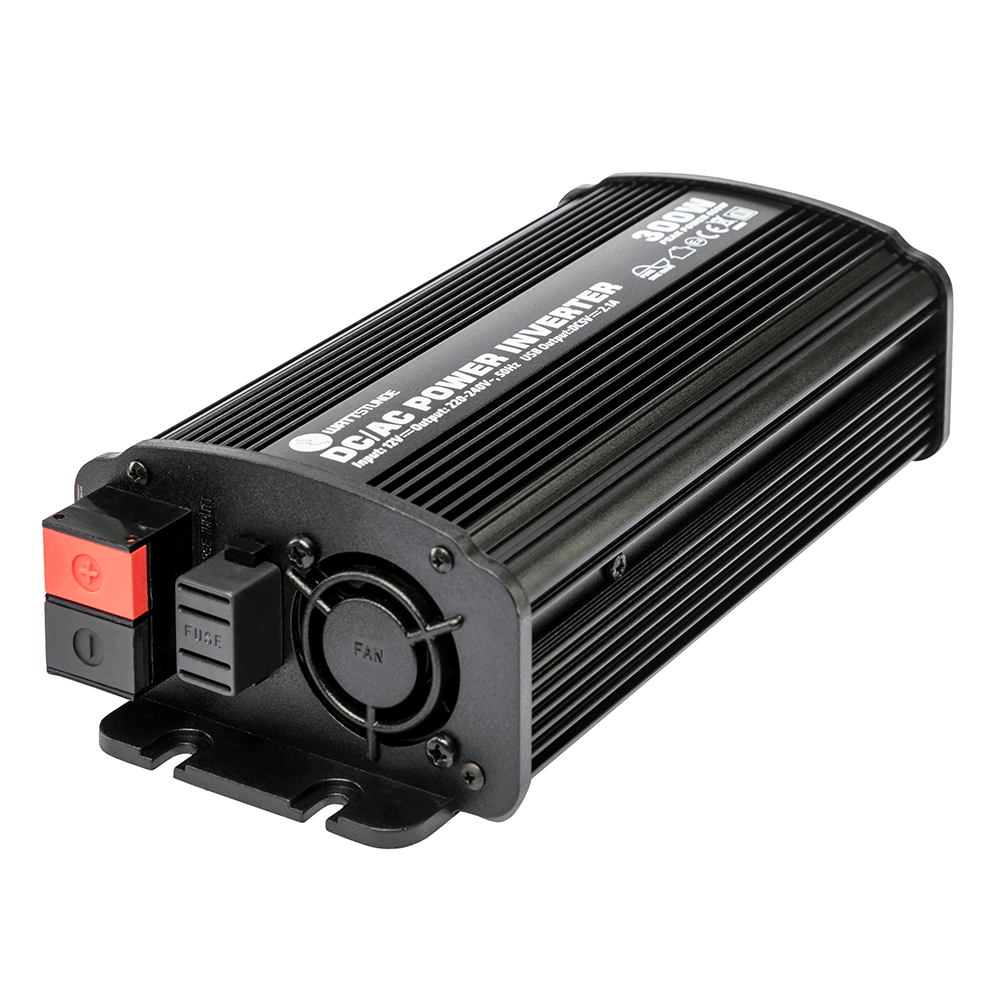

• Load-controlled fan
• Power like at home (AC voltage and Schuko socket)
• Warranty period: 2 years

Scope of delivery

• 1x WATTSTUNDE® Sine Wave Inverter 300 W WS12/300SI

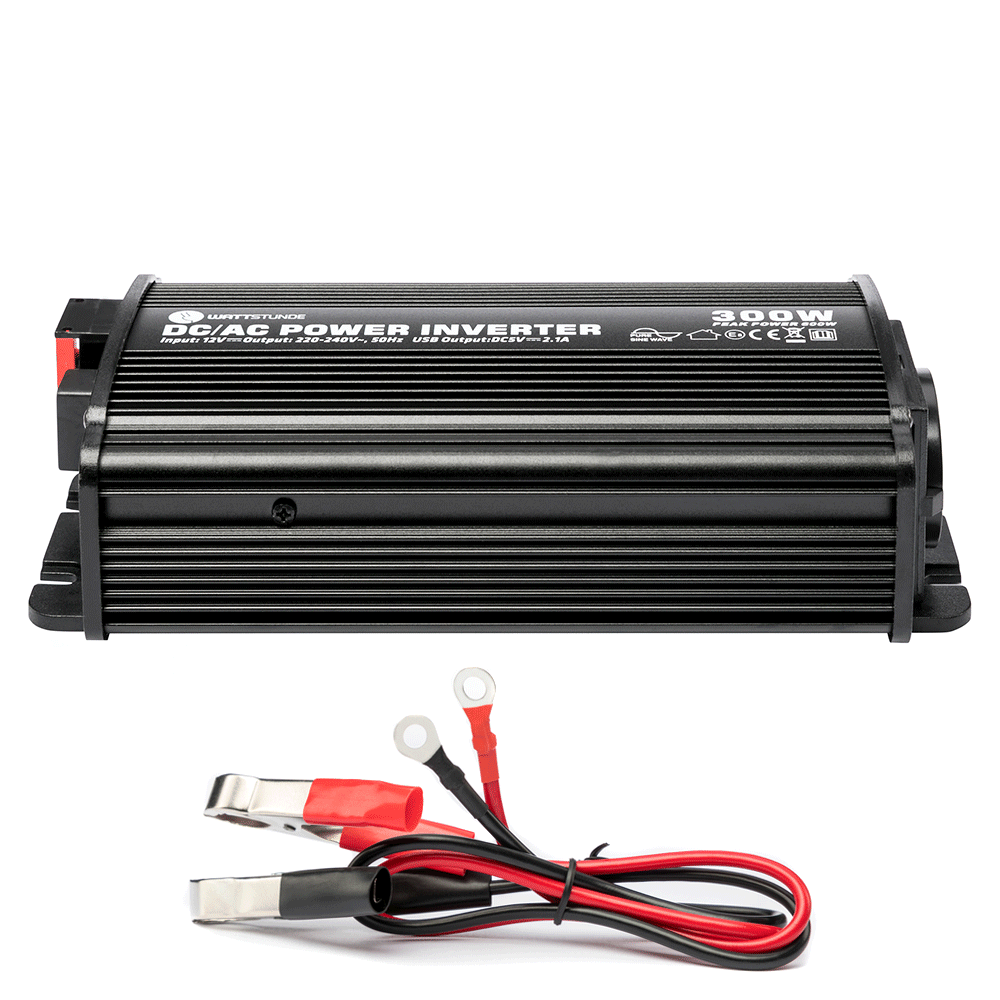

• 1x Battery connection cable 4mm² 53cm (with M8 ring terminals & crocodile clips)
• 2x Flat fuse
• User manual (German / English)

Note:

Observe starting currents!
When connecting inductive devices (hot plate, drill, refrigerator, etc.), please note that they often require a 3-10 times higher power for a short time to start up than indicated on the type plate.
The maximum short-term power consumption must not exceed the maximum power of the inverter!
