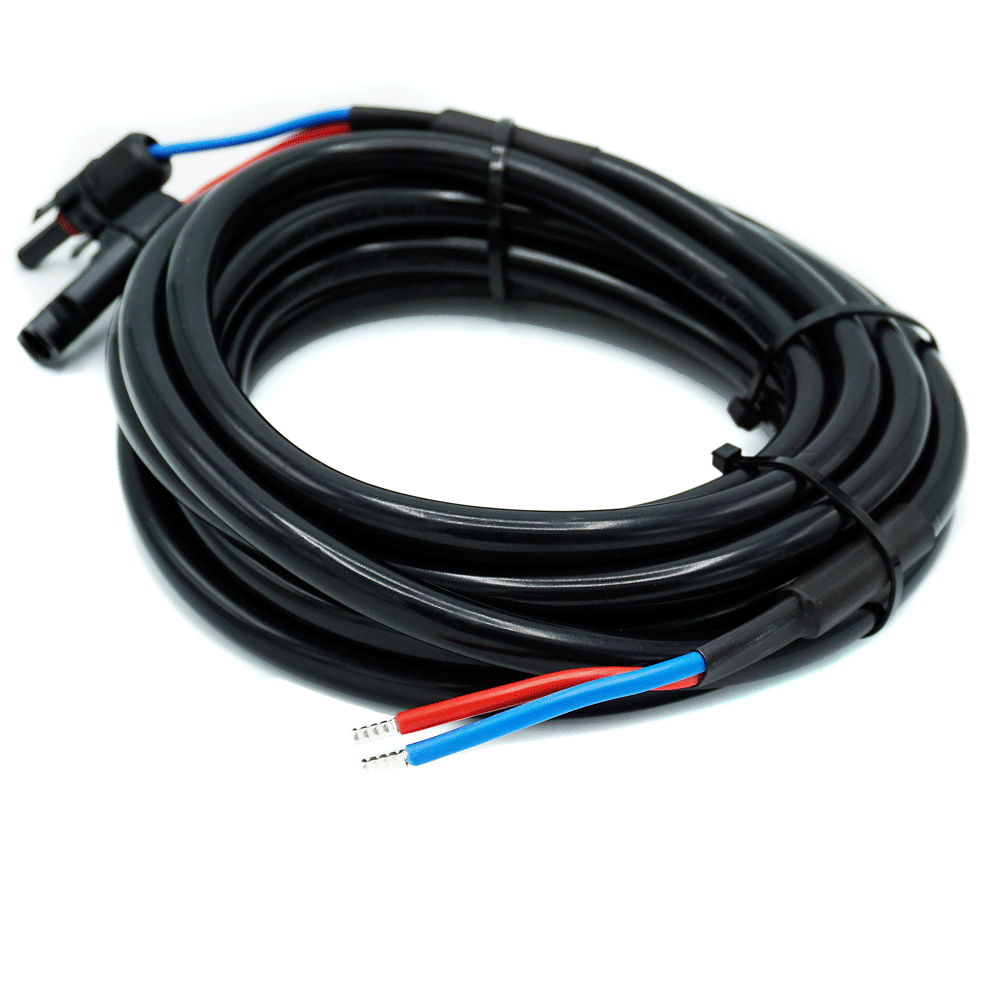

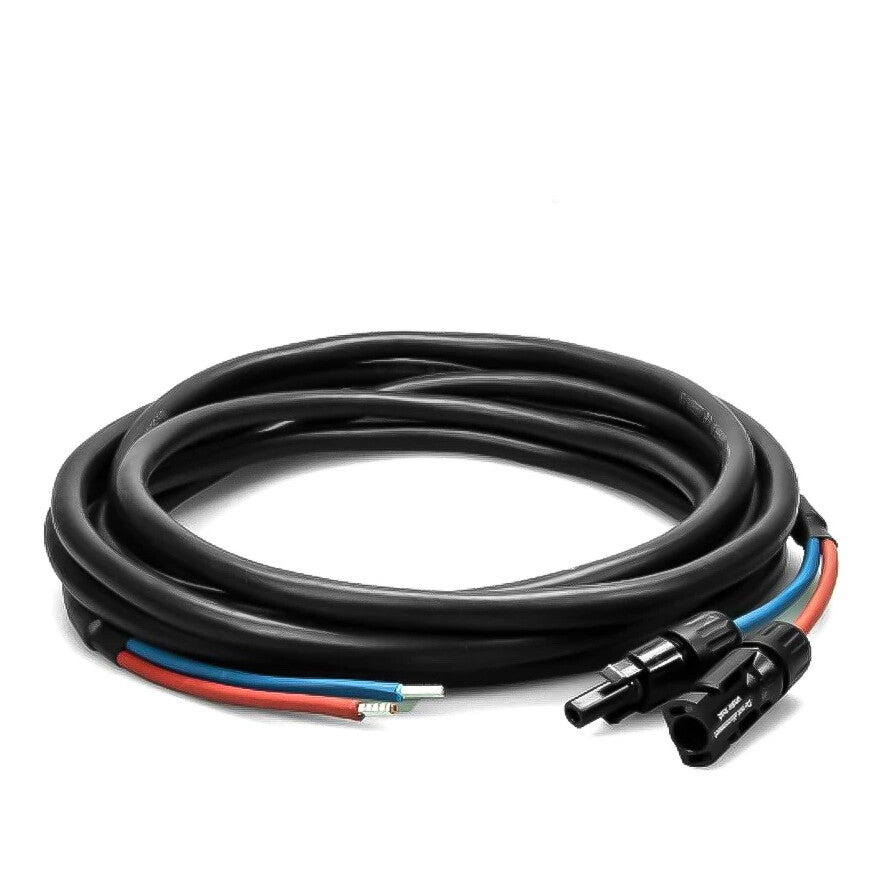

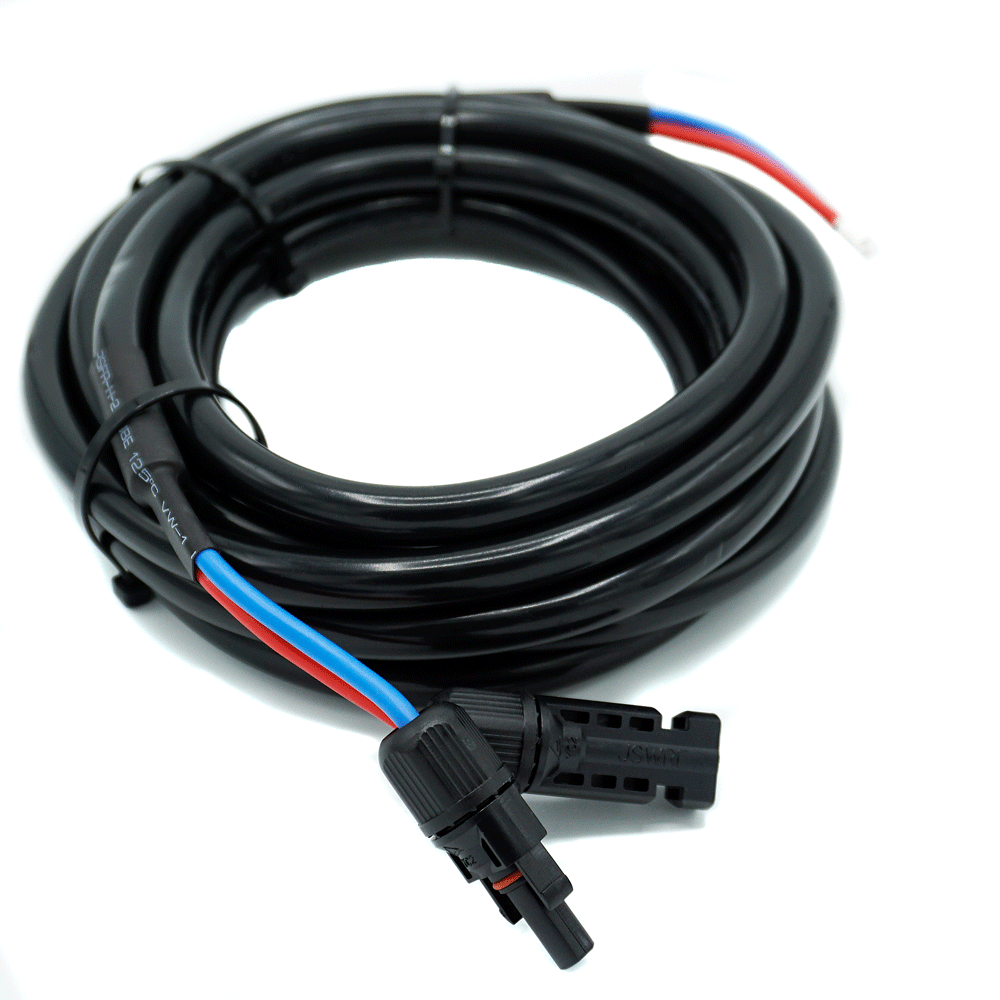

WATTSTUNDE® Connection cable (2x) 6 mm² type MC4/wire end ferrule 1 m black

Solar Cable Special Cable 2 x 6 mm² with MC4-compatible Connectors

Solar Special Cable for Professional Use

The solar cables are flexible 2-core cables, which are specially suited for wiring solar systems inside and outside buildings.

The cables are extremely robust, highly resistant to mechanical stress, and have very good weather resistance. These properties guarantee a long service life.

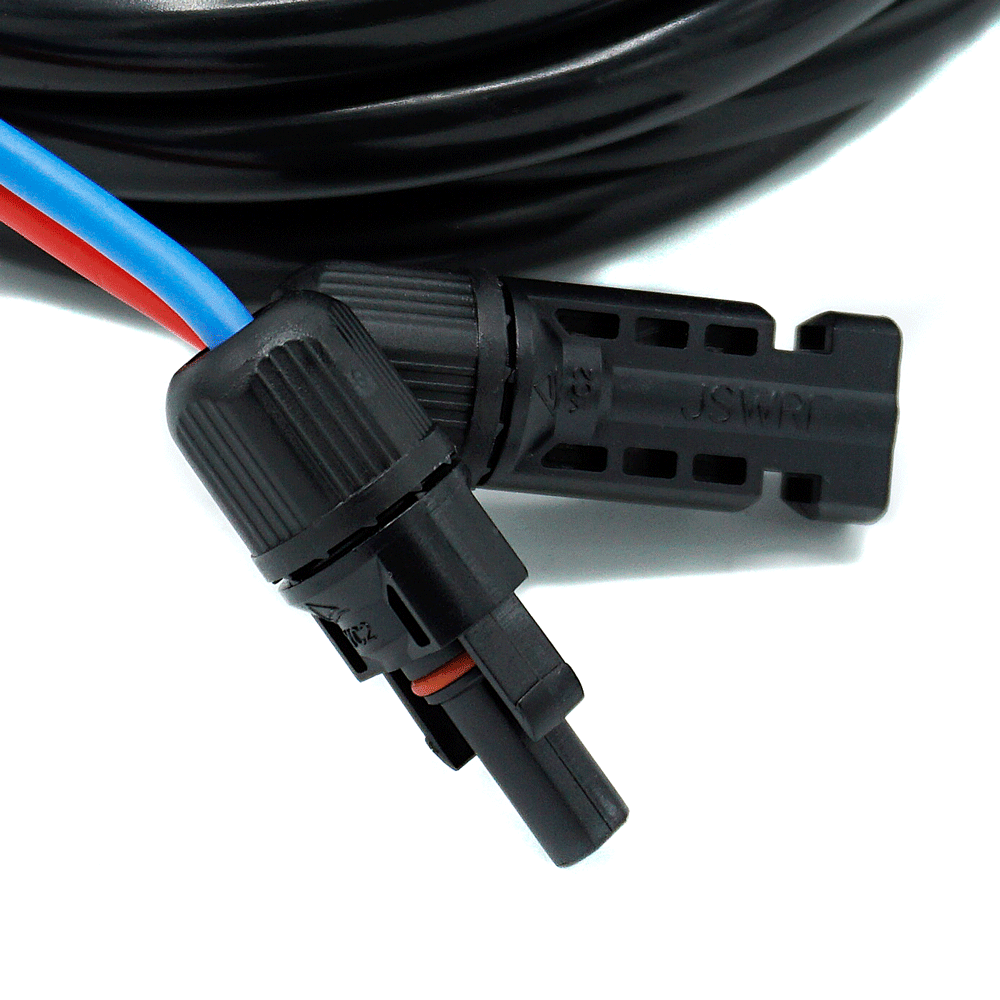

The cable is supplied as a connecting cable with pre-installed MC4-compatible connectors. These connectors are professionally pre-assembled with special tools and enable easy and smooth handling during installation and commissioning.

Solar Cable 2 x 6 mm²

• MC4-compatible connectors professionally pre-assembled
• Ozone resistant & weather resistant
• Heat resistant up to +75°C
• Voltage loadable up to 500 V (depending on application)
• 2-core
• Conductor material: Copper
• Insulation material: PVC
• Short-circuit proof even at high temperatures
• Outer diameter: ~14 mm
• Warranty period: 2 years

Documents & Downloads

• Technical Drawing
