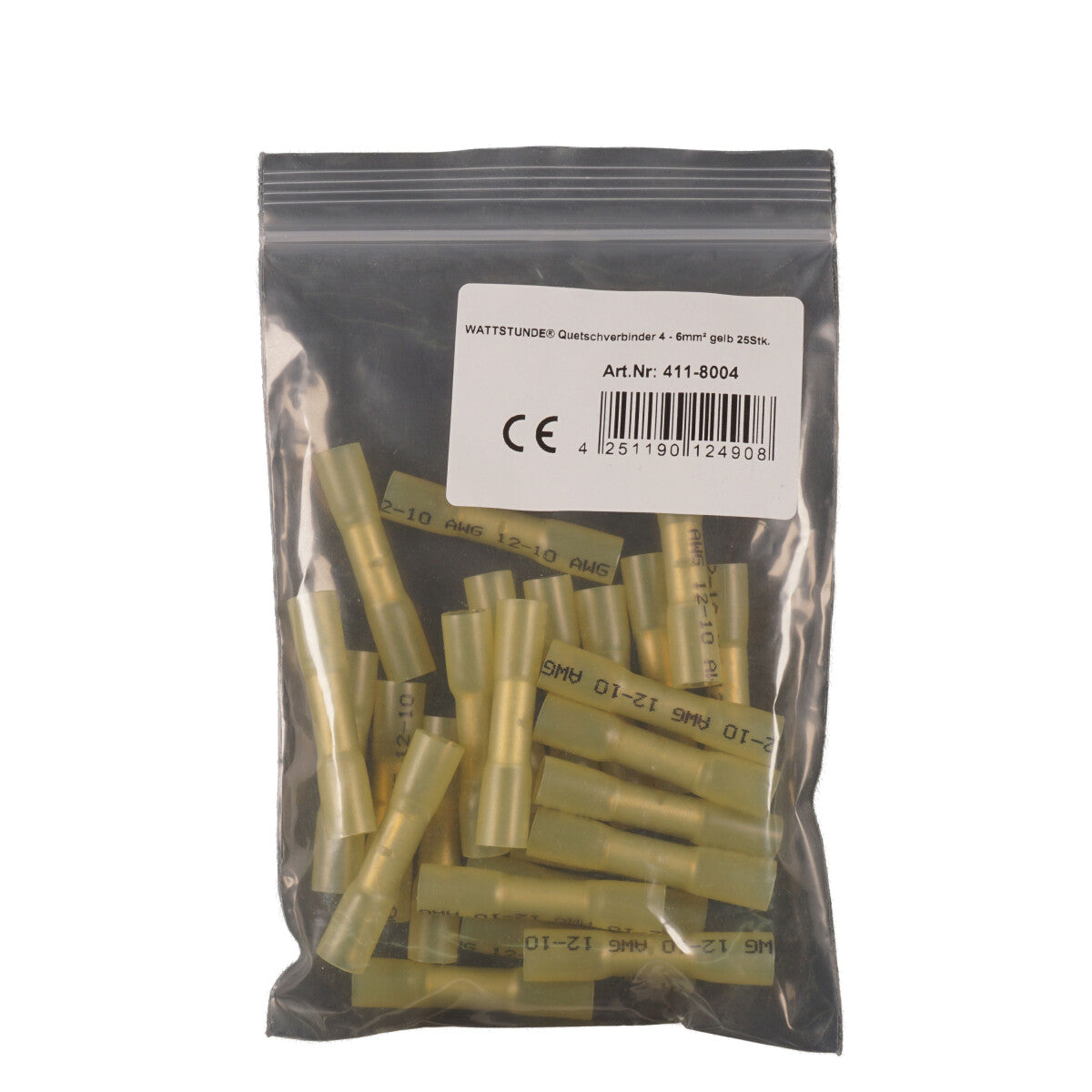

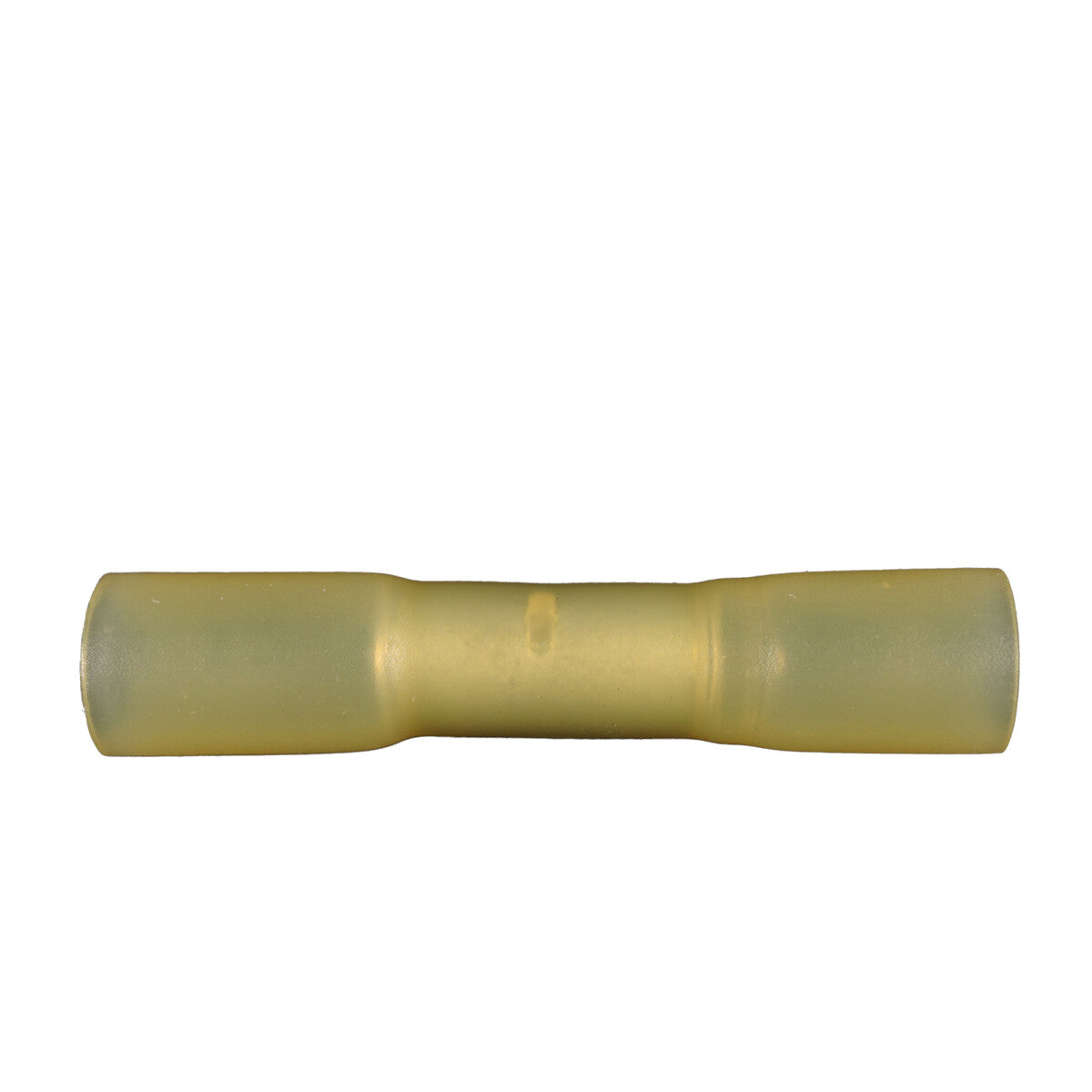

WATTSTUNDE® Crimp Connectors 4 - 6 mm² yellow 25 pcs.

WATTSTUNDE® Crimp Connectors 4–6 mm² Yellow – 25 Pieces

The yellow WATTSTUNDE® Crimp Connectors 4–6 mm² offer you an extremely durable, safe and long-lasting solution for strong cable connections. They are ideal for applications with high currents and demanding environments.

Technical Data at a Glance

• Wire range: 4.0–6.0 mm²
• Dimensions: d: 3.6 mm, F: 15 mm, D: 6.8 mm, L: 41.5 mm
• Crimp core thickness: 1.0 mm
• Rated voltage: 250 V
• Rated current: 32 A
• Conductor cross-section: 4.0–6.0 mm²
• Operating temperature: –20 °C to +105 °C
• Insulation material: PE
• Contact material: Copper
• Colour: yellow
• Scope of delivery: 25 pieces

Maximum Stability

The 1.0 mm thick crimp core ensures secure and robust connections – even under heavy loads or vibrations.

High Conductivity

The copper contacts ensure low-loss and reliable energy transfer.

Temperature-Resistant & Protected

The PE insulation provides reliable protection and withstands temperatures from –20 °C to +105 °C.

Your Advantages

• High current carrying capacity up to 32 A
• Robust crimp core
• Efficient conductivity
• Temperature-resistant
• Yellow colour coding
• Warranty period: 2 years

Professional Quality

The WATTSTUNDE® Crimp Connectors 4–6 mm² yellow are ideal for energy-intensive and demanding installations.

Documents & Downloads

• Technical Drawing
