WATTSTUNDE® SOLA Flex Mono 220 Wp HV
Item no.: WS101-71220
€581,95
🇩🇪 Ships from Germany
↺ 14-day returns
💬 Advice

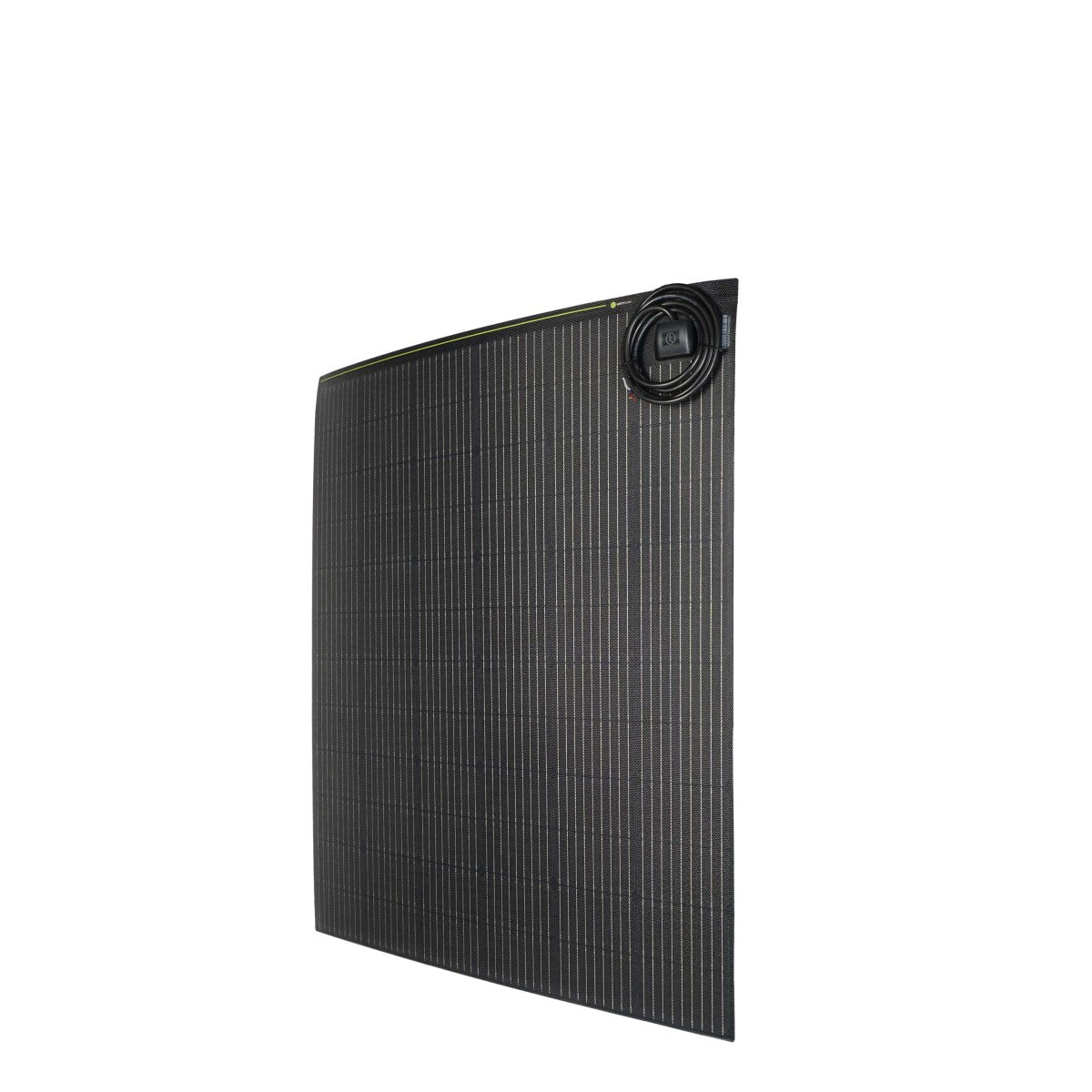

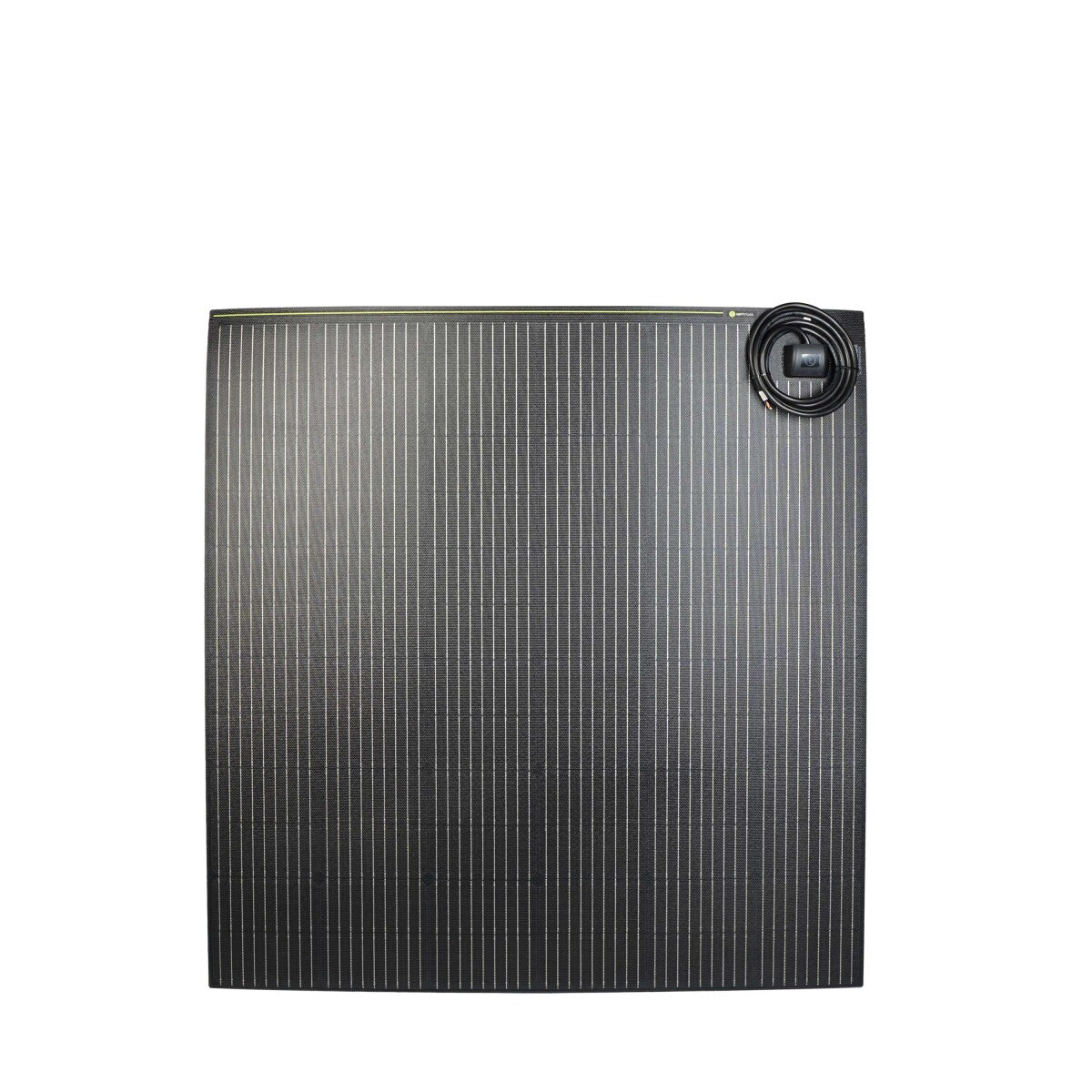

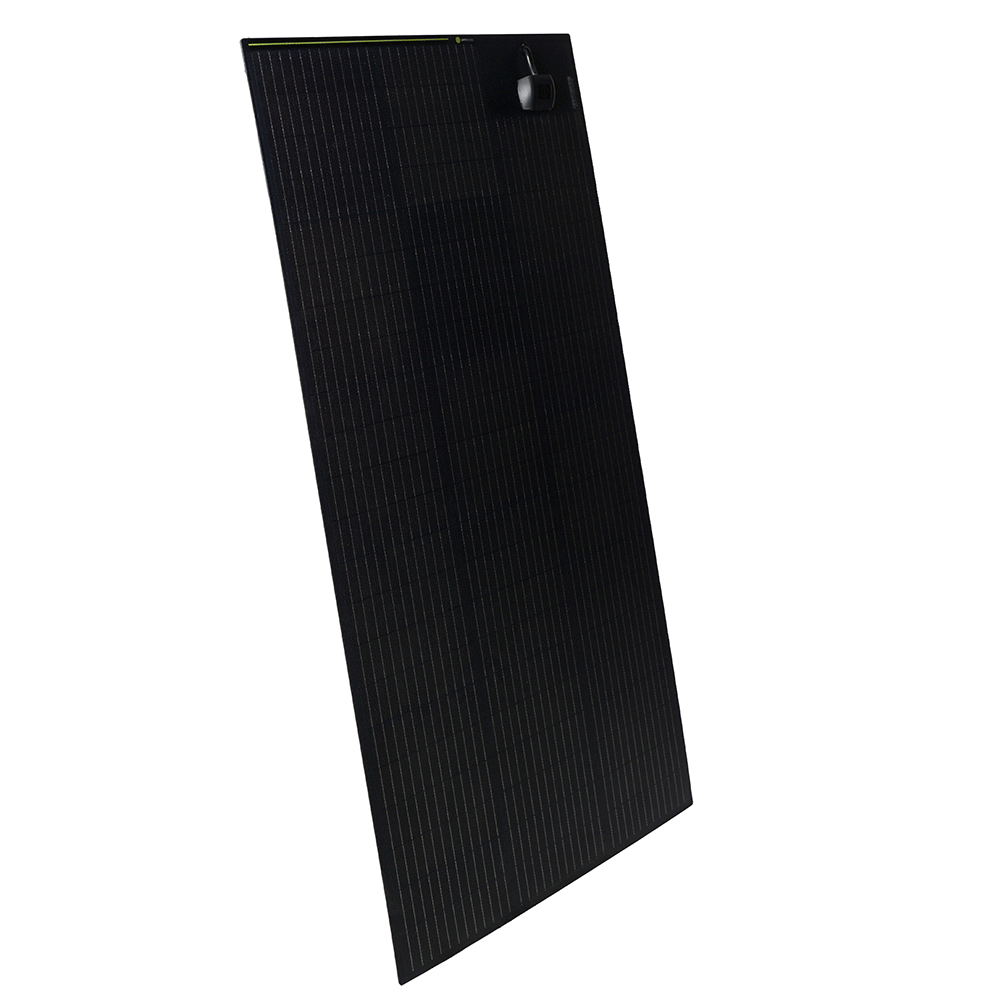

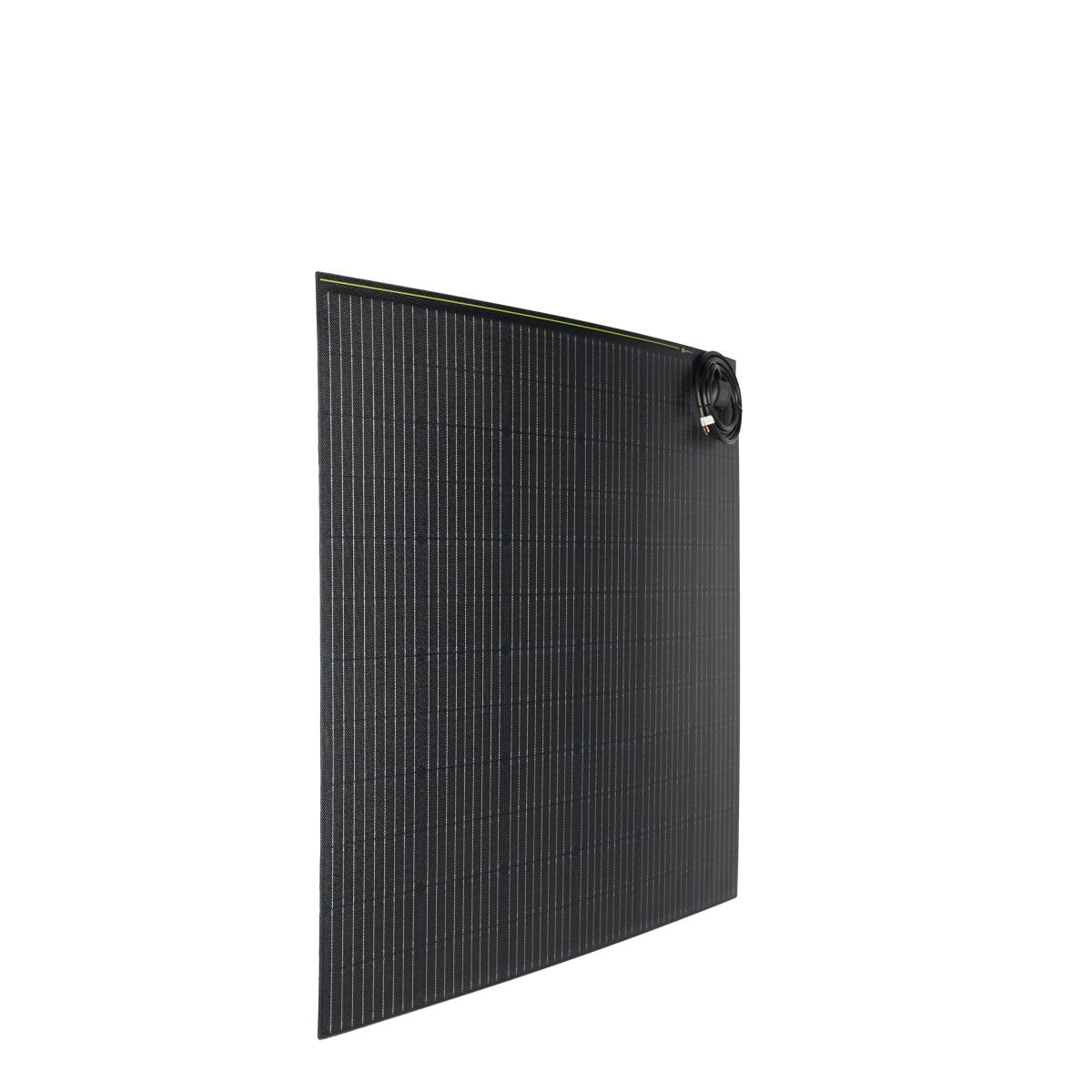

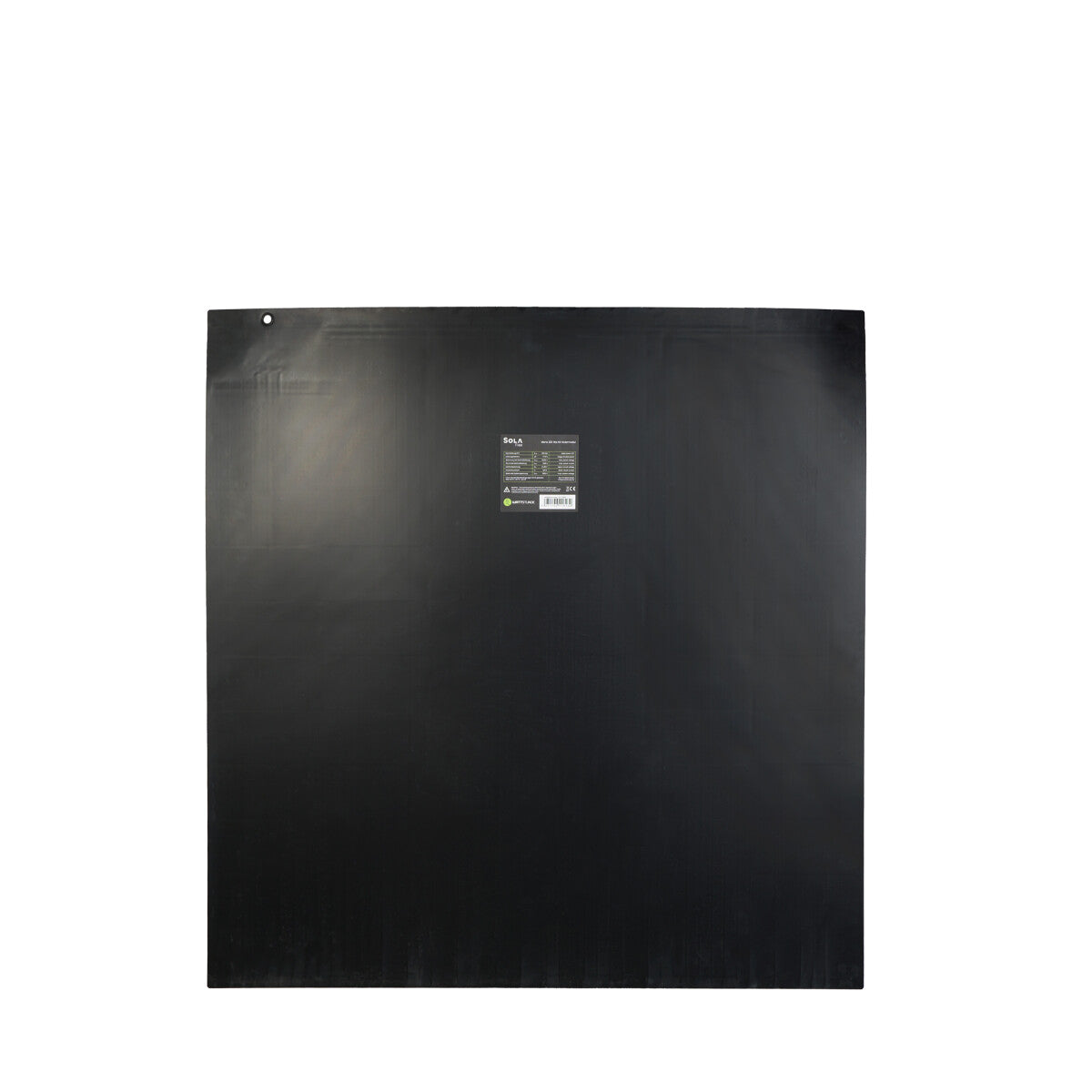

WATTSTUNDE® SOLA Flex Mono 220 Wp HV – Flexible High-Performance Solar Module for Mobile Applications
The WATTSTUNDE® SOLA Flex Mono 220 Wp HV is a flexible solar module with a high power output of 220 W and a voltage of 39.5 V. It offers excellent efficiency and durability, ideal for use on motorhomes, campers, or other surfaces that require a flexible and robust solar module. Thanks to monocrystalline solar cells and a robust ETFE coating, this module is not only powerful but also particularly resistant to environmental influences.
Key Features
- High Performance and Efficiency: 220 W power output at a voltage of 39.5 V – ideal for demanding applications and high energy requirements
- Monocrystalline Solar Cells: Provide high energy yield in a small area and a long lifespan

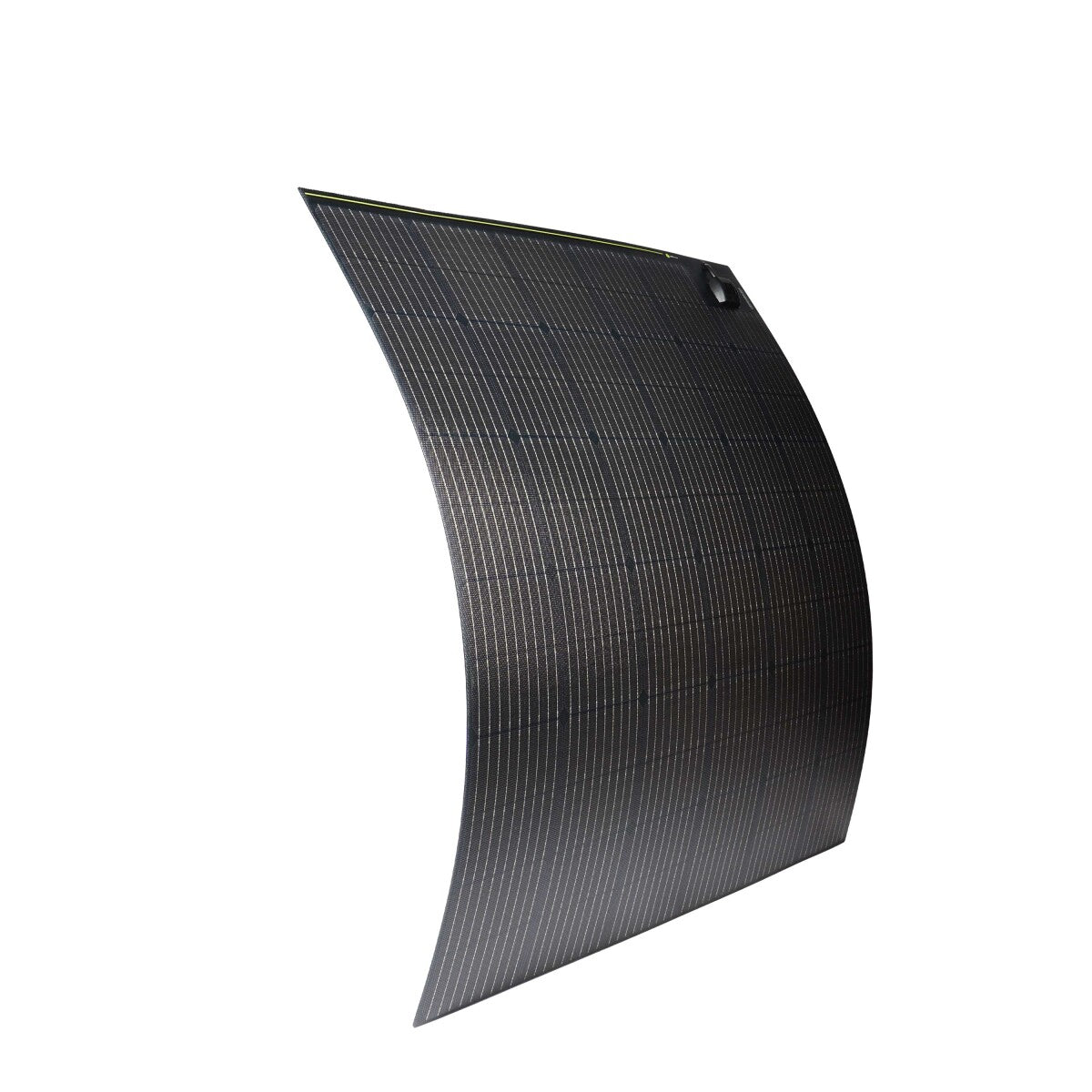

- Flexible Design: With a thickness of only 3.1 mm, the module adapts optimally to curved or uneven surfaces without losing performance
- ETFE Coating: Extremely resistant to UV radiation, moisture, and saltwater
- Compact Size: With dimensions of 1070 x 1035 x 3.1 mm, the module is space-saving and easy to install

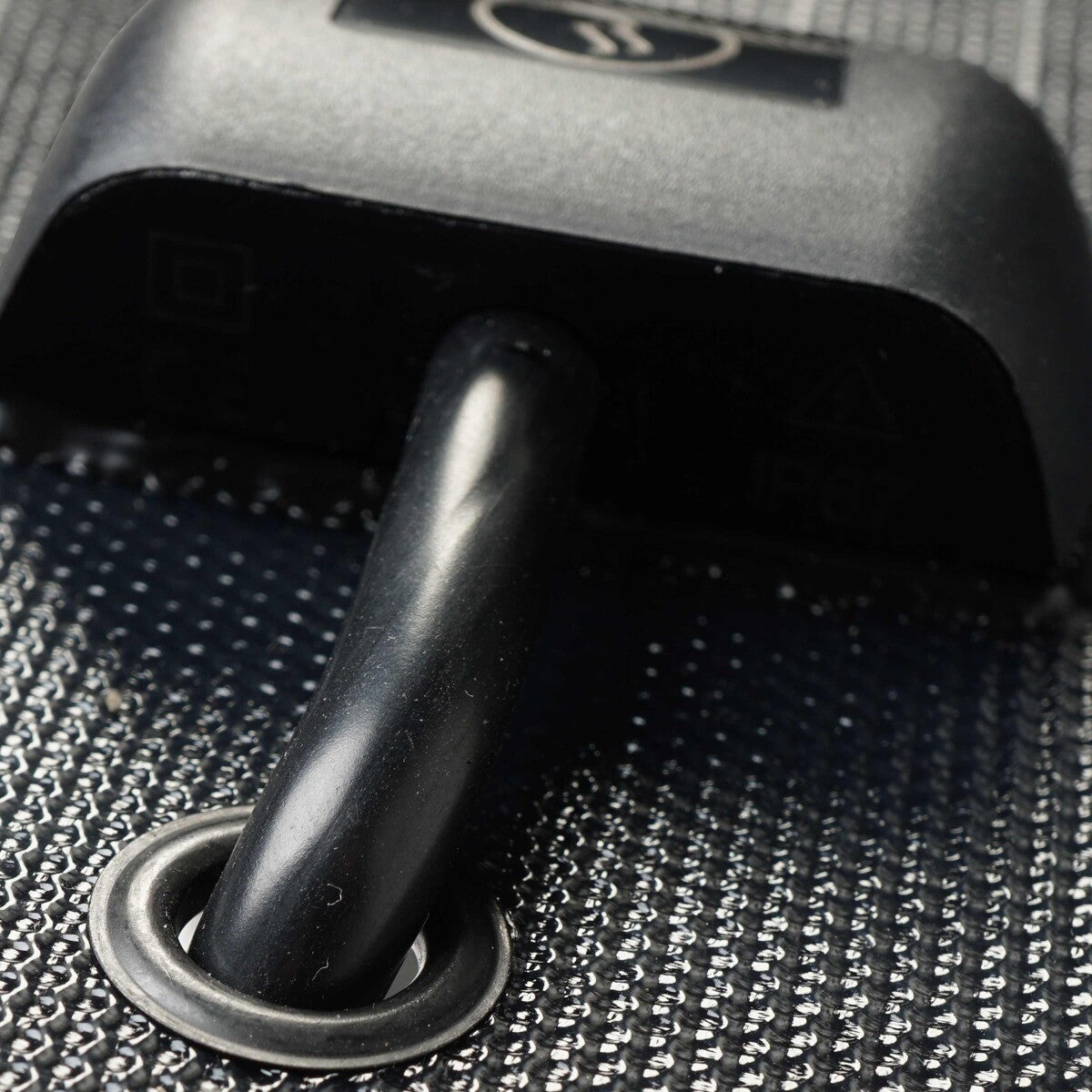

- Black Junction Box: Aesthetically integrated design with robust junction boxes for secure and weather-proof connections
- Warranty Period: 5 years
The WATTSTUNDE® SOLA Flex Mono 220 Wp HV offers a flexible and powerful solar solution, optimally designed for mobile and outdoor applications.
| Technical Data | SOLA Flex Mono 220 Wp HV |
| Rated Power | 220 W |
| Max. Daily Yield (Summer) | 880 Wh/d |
| Voltage (Umpp) | 39.50 V |
| Current (Impp) | 5.56 A |
| Open Circuit Voltage (Voc) | 47.40 V |
| Short Circuit Current (Isc) | 6.01 A |
| Cell Efficiency | ≥ 22 % |
| Cell Material | PERC Mono |
| Bypass Diode | Integrated |
| Weight | 3.87 kg |
| Dimensions | 1070 x 1035 x 3.1 mm |
