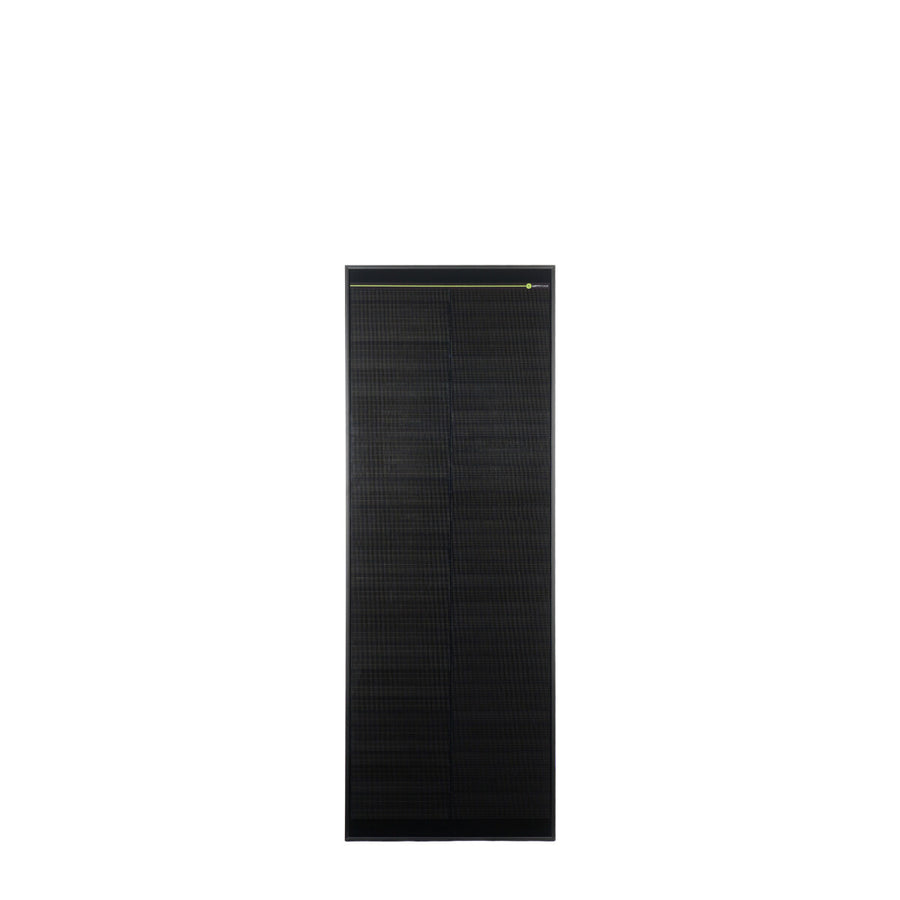

WATTSTUNDE® SOLA Frame Black 100 Wp HV
WATTSTUNDE® SOLA Frame Black 100 Wp HV – Compact High-Performance Solar Module with Shingled-Cell Technology
With the WATTSTUNDE® SOLA Frame Black 100 Wp HV, you choose a compact, high-performance HV module. Modern shingled-cell technology and higher system voltage (HV) enable particularly efficient energy transfer with a slim, lightweight design – ideal for mobile applications in RVs, on boats, or in off-grid setups. The elegant all-black look blends discreetly into any vehicle or system design.
Efficiency & High-Performance Advantage (HV)
Shingled-cell technology reduces internal resistance and increases energy yield. In the HV version, the module operates at a higher voltage – advantageous for longer cable runs with fewer losses and for efficient system design. Integrated bypass diodes ensure stable current flow even with partial shading. With an efficiency of up to 23.8%, the module is among the high-performance representatives in its class.
Optimized Design for Mobile Applications
Low weight and reduced frame height improve aerodynamics – a plus when mounting on roof racks, RVs, or boats. The robust hollow-chamber profile frame ensures stability, while the all-black look provides a modern, understated appearance.
Durability & Protection
High-transmissive tempered anti-reflective glass reliably protects against mechanical stress and weather. The IP67 junction box and bypass diodes support a long service life and reliable performance – even under demanding conditions.
Easy Installation
Thanks to 90 cm connection cables and MC4-compatible plugs, installation is quick and secure. Multiple modules can be flexibly connected, allowing you to expand your system as needed.
Your Benefits at a Glance
- HV version: higher voltage for efficient energy transfer & fewer cable losses.
- High efficiency of up to 23.8%.
- Lightweight & aerodynamic design – ideal for mobile use.
- Robust & durable thanks to tempered anti-reflective glass.
- Flexible installation with pre-assembled cables.
- This module is tested according to IEC 61215 and IEC 61730.
- 10-year product warranty & 25-year performance warranty.
Your Compact High-Performance Module for Independent Energy
The WATTSTUNDE® SOLA Frame Black 100 Wp HV is the right choice if you want maximum efficiency in limited space – whether in an RV, on a boat, or in an off-grid system.
| Technical Data | SOLA Frame Black 100 Wp HV |
| Rated Power | 100 W |
| Max. Daily Yield (Summer) | 450 Wh/d |
| Voltage (Umpp) | 39.20 V |
| Current (Impp) | 2.56 A |
| Open Circuit Voltage (Voc) | 44.80 V |
| Short Circuit Current (Isc) | 2.72 A |
| Cell Efficiency | ≥ 22 % |
| Cell Material | Mono Shingled Cells |
| Bypass Diode | Integrated |
| Weight | 5.60 kg |
| Dimensions | 1200 x 430 x 30 mm |
