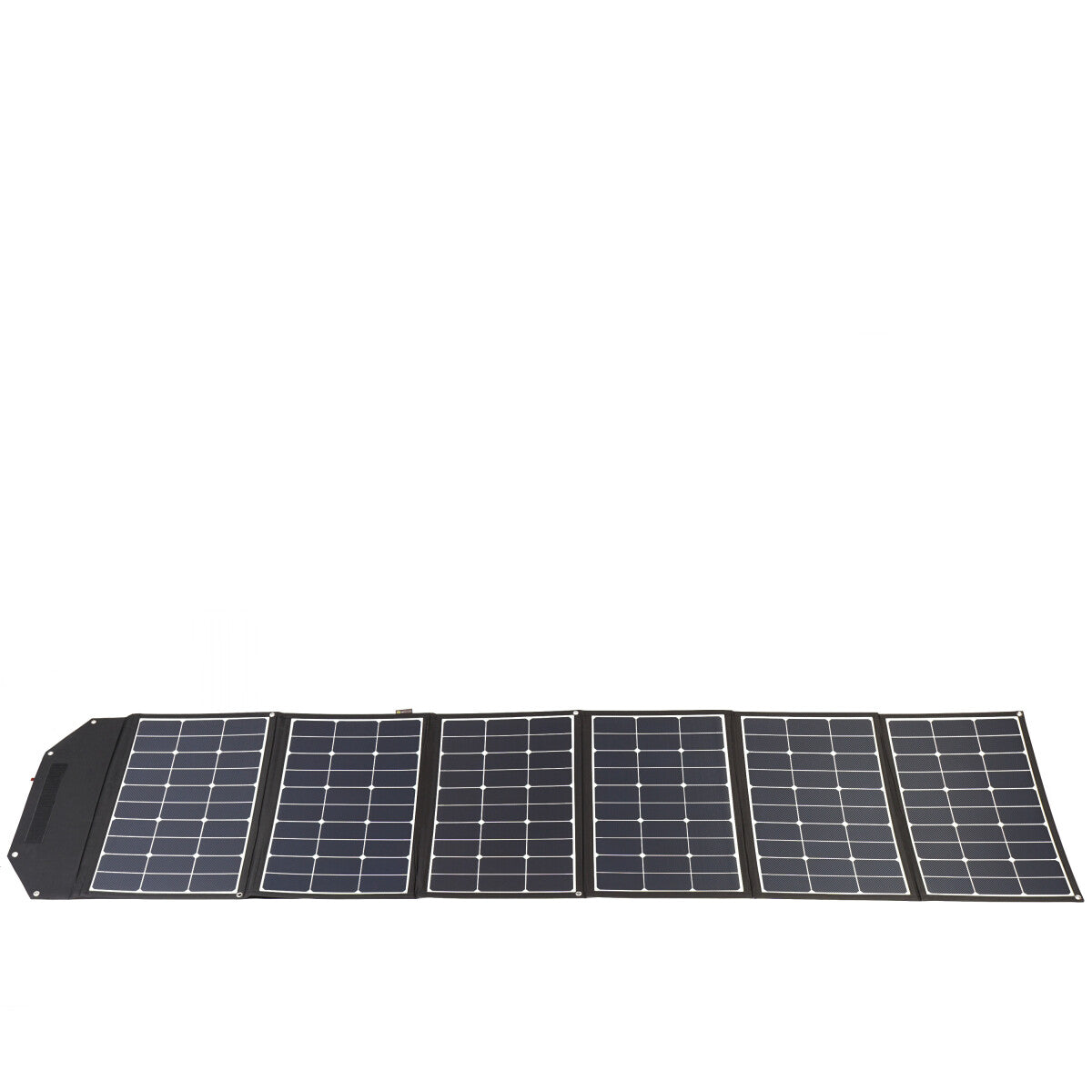

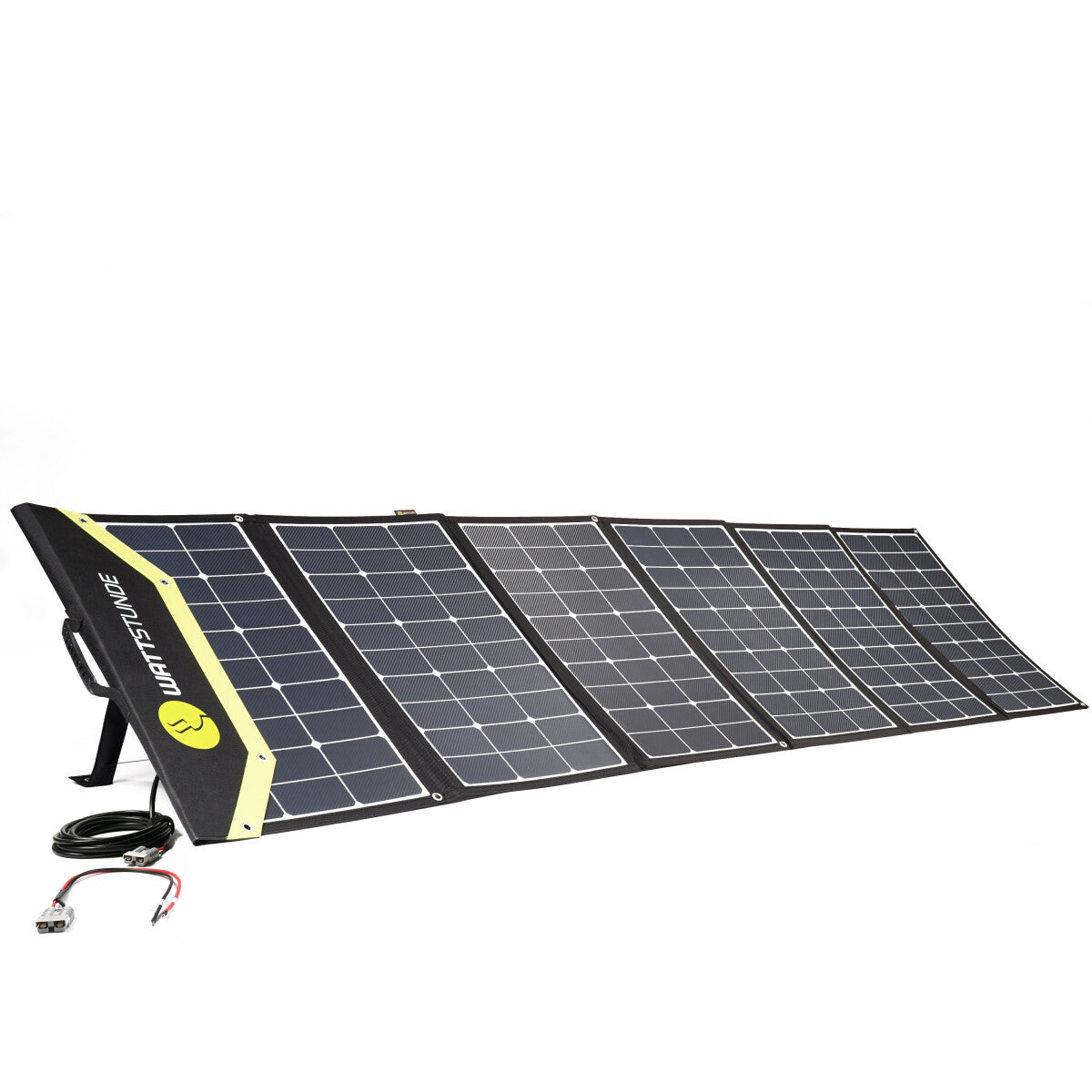

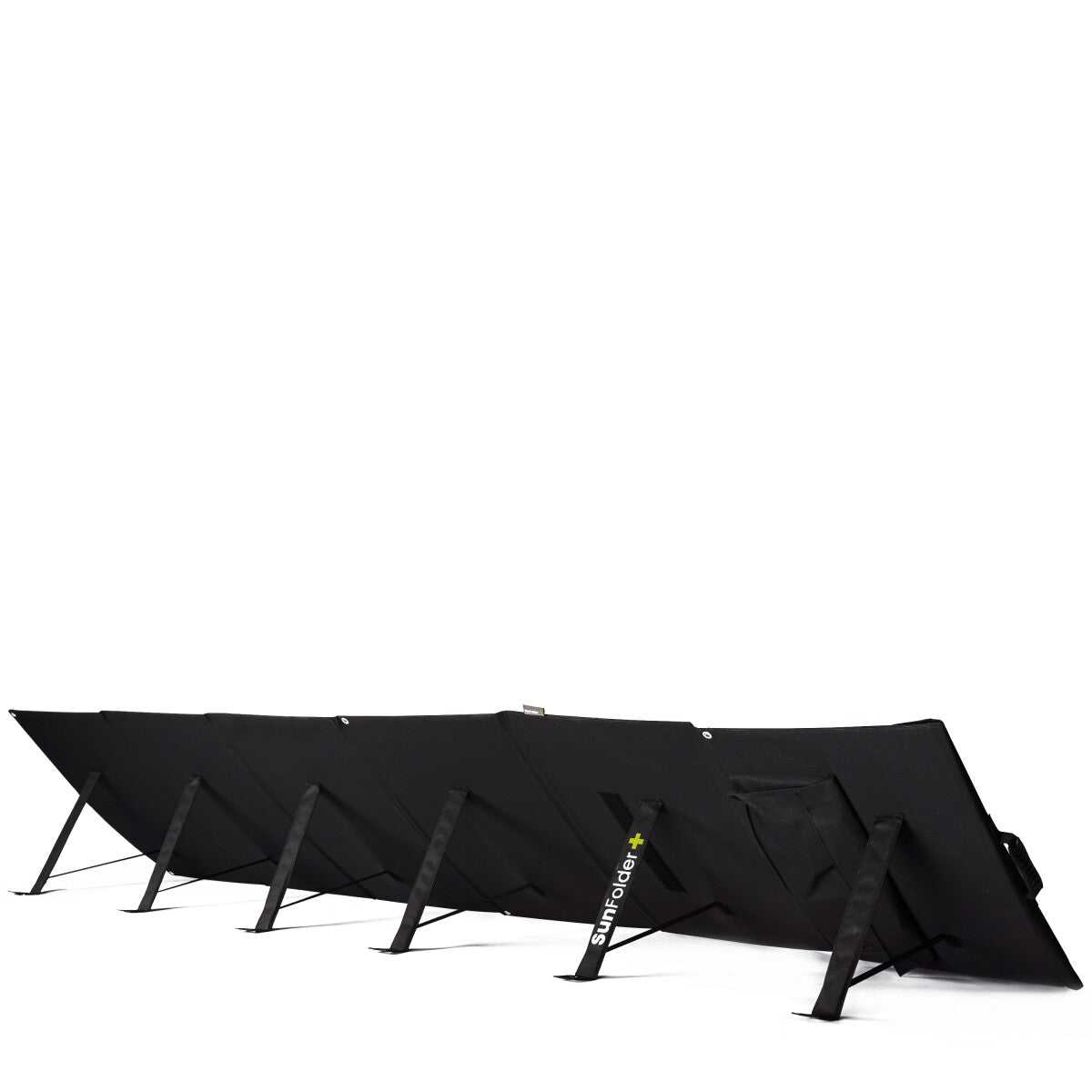

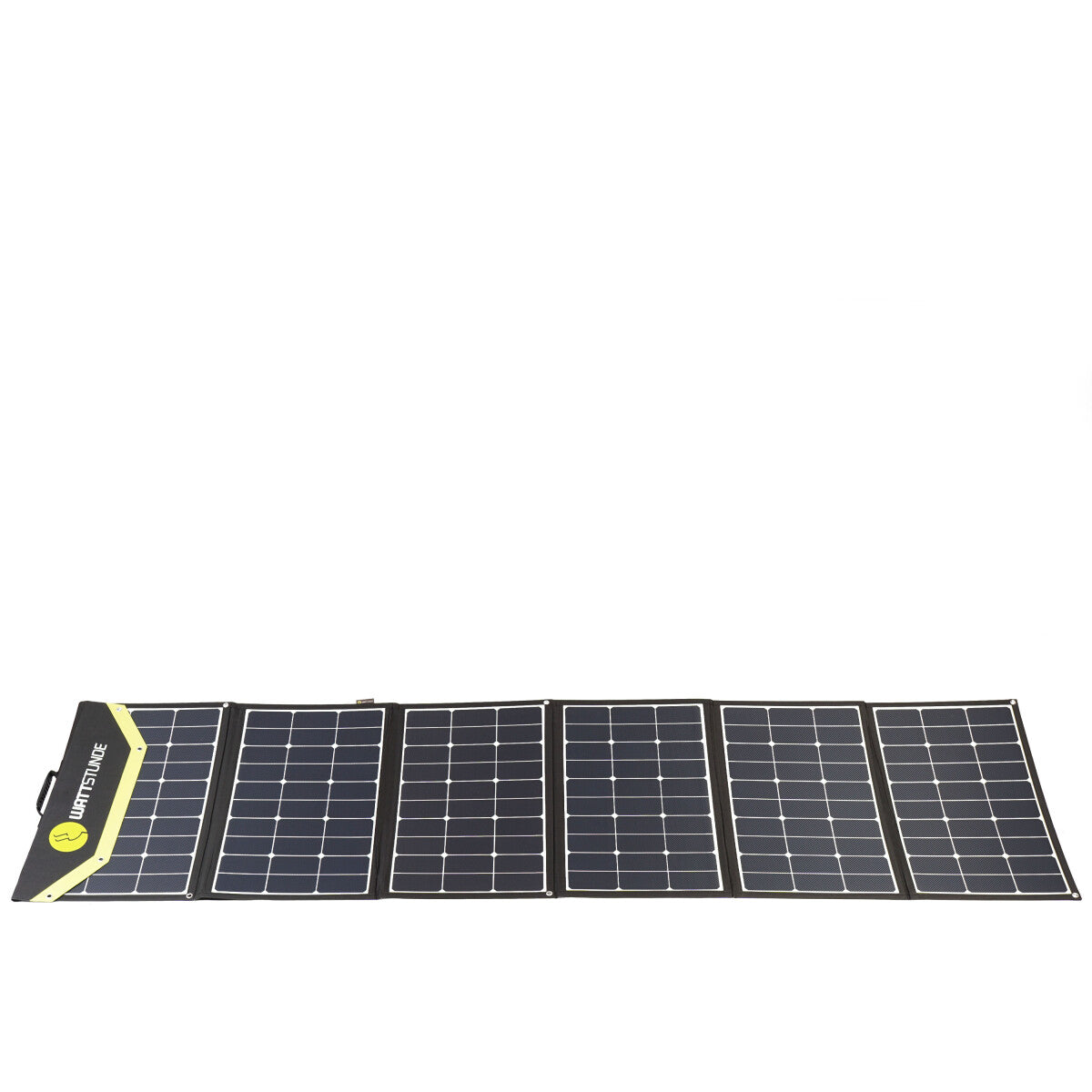

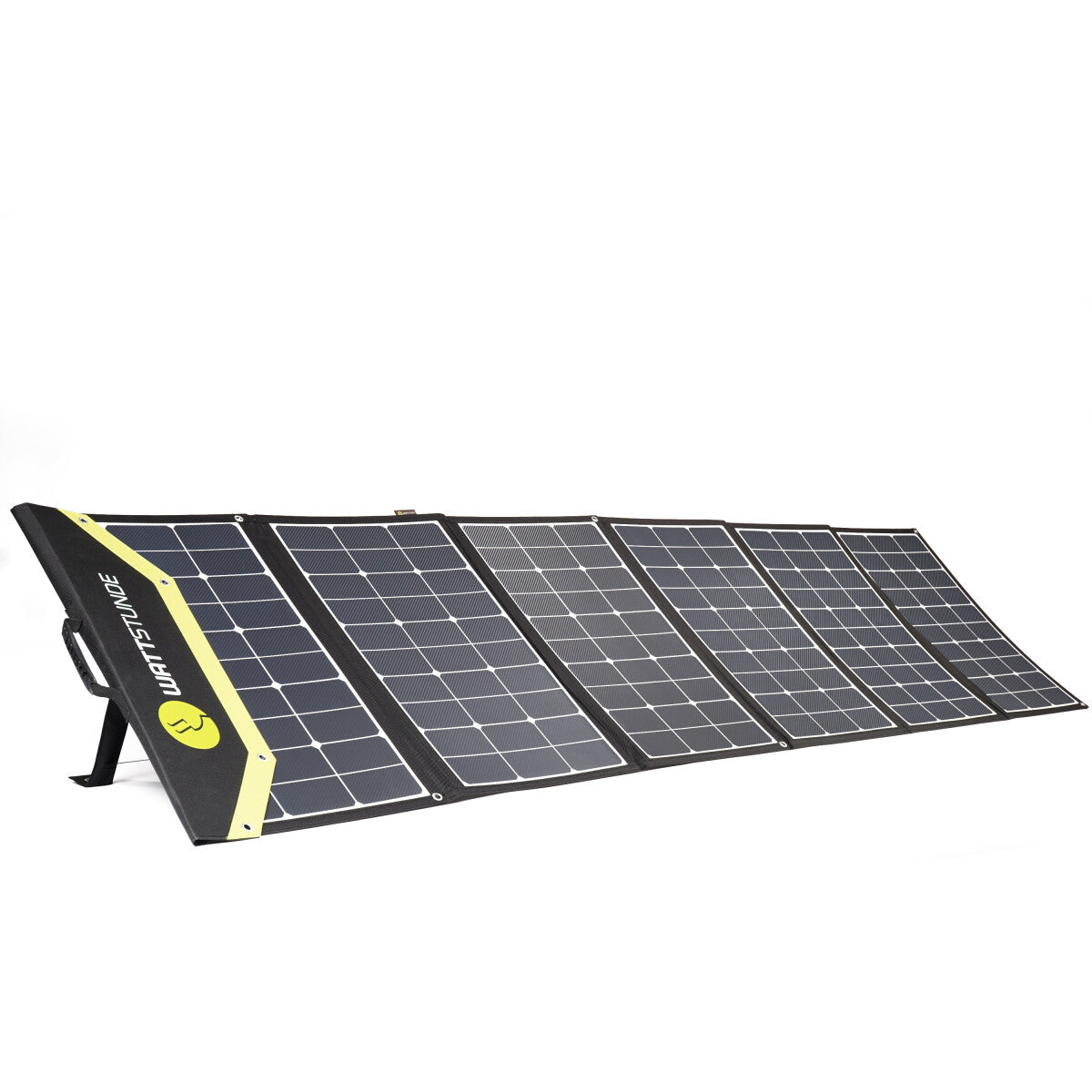

WATTSTUNDE® WS340SF SunFolder+ 340Wp Solar Bag

WATTSTUNDE® WS340SF SunFolder+ 340Wp Solar Bag

SKU:WS101-15340

Regular price €831,81 EUR
Regular price Sale price €831,81 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

WATTSTUNDE® WS340SF+ SunFolder Solar Module 340 Wp

Generate solar energy easily and innovatively - with the new WATTSTUNDE® SunFolder solar bag, it's quick and easy. Unfold the bag, connect it, and generate energy.

Lightweight, Innovative, and Flexible

Thanks to its innovative design, the WATTSTUNDE® SunFolder solar bag is very lightweight, absolutely space-saving, and thus offers a high degree of flexibility and usability. The solar bag scores with the possibility of being freely adjustable at any time. Whether behind the windshield when parked or simply outdoors, you can place the solar bag wherever the sun shines. In addition, you are guaranteed a high energy yield thanks to the SunPower back-contact solar cells.

Robust & Flexible:

The robust Cordura fabric makes the SunFolder a perfect companion for outdoor use - nevertheless, as with any technical device, care should be taken to ensure that no moisture or water can get into sensitive areas. We recommend not leaving the SunFolder outdoors overnight. (This is an electrical device for using solar energy - meaning it cannot tolerate mist and rain.)

Plug & Play with a practical plug-in system

The SunFolder solar bag from WATTSTUNDE® has a 4.5m long connection cable, which is equipped with an Anderson plug system at the end. Thanks to the practical plug-in system, the connection can remain permanently on the charge controller, and if necessary, the solar bag is taken out, hung or placed in the sun, and you simply plug the two Anderson counterparts together and the SunFolder is connected to the charge controller. It hardly gets any faster or more practical.

Self-sufficient with SunPower Solar Cells

The SunFolder solar bags of the WATTSTUNDE® series are high-quality modules with SunPower cells, which deliver optimal results and ensure a high energy yield. The solar bags are suitable for all self-sufficient battery applications, such as in motorhomes and caravans, camping and tents, marine - sailboats, campervans, panel vans (including off-road vehicles such as Land Rover Defender) and in all OffGrid systems.






Technical Data WS340SF+
Nominal Power (Pmpp) 340 Wp
Max. Daily Yield (Summer) 2040 Wh/d
Voltage (Umpp) 33.0 V
Current (Impp) 10.30 A
Open Circuit Voltage (Uoc) 38.8 V
Short Circuit Current (Isc) 10.92 A
Bypass Diode integrated
Cell Efficiency >24 %
Connection Cable 4.5 Meters
Weight 9.42 kg

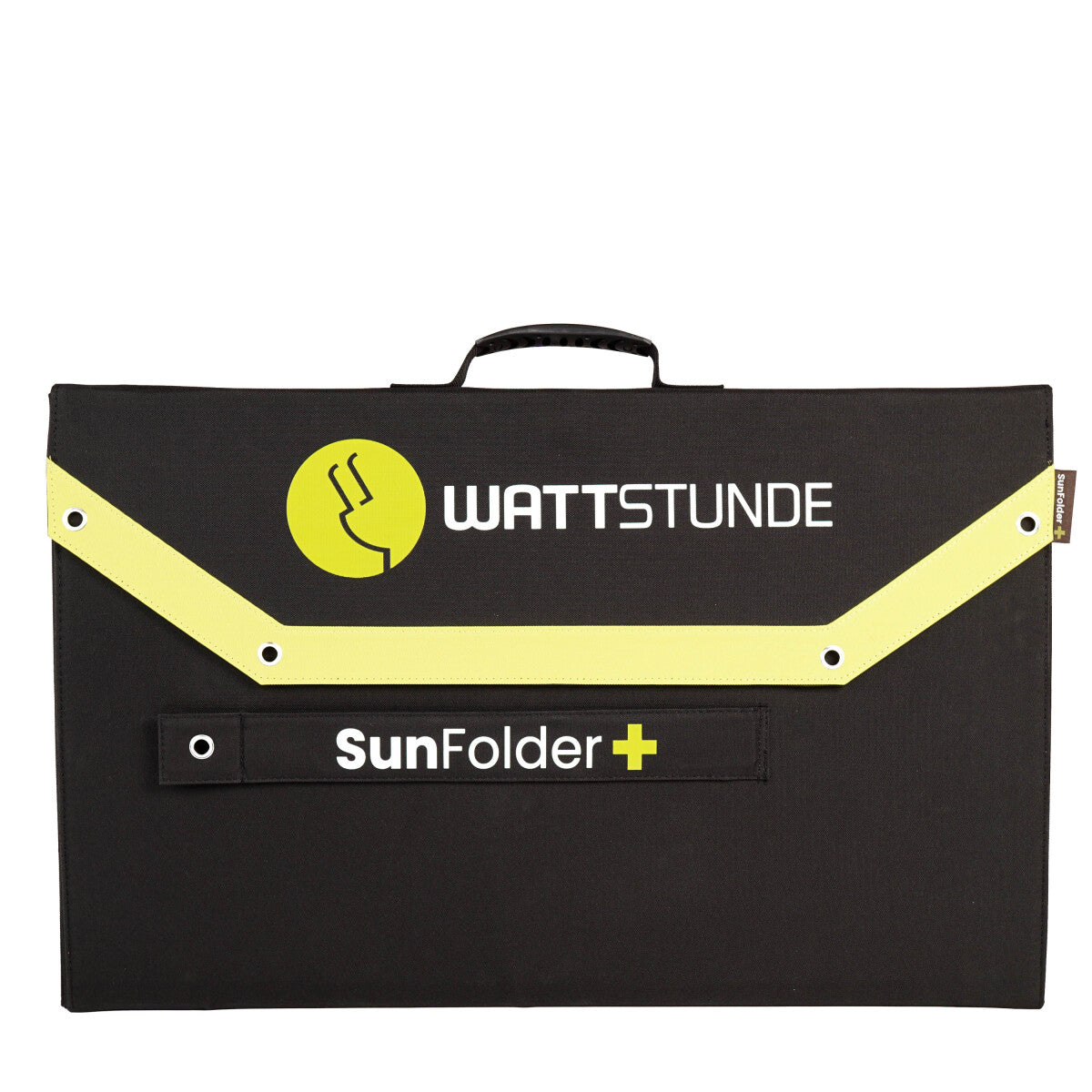

Dimensions (closed) 440 x 690 x 30 mm
Dimensions (open) 2700 x 690 x 7.5 mm
