Votronic 15A 12V Battery Charger VAC 1215 M 3A - 0404

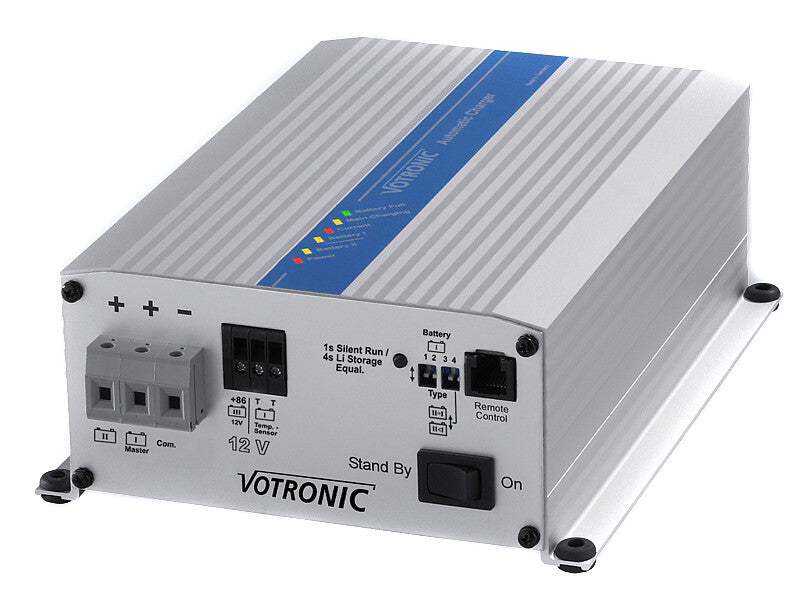

Votronic Battery Charger VAC-1215M 3A
Built-in mains chargers for emergency vehicles with highly varying usage cycles

Especially in rescue and emergency vehicles, the reliability of the installed batteries is crucial for the vehicle's operational readiness. This is particularly true when many continuous consumers heavily strain the batteries, frequent deployments leave no time for recharging, or the charger is insufficiently matched to the batteries. To meet the special requirements of emergency vehicles, the VAC series was created in cooperation with vehicle and leading battery manufacturers.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard! Quality - Made in Germany - !

The device electronics are protected against moisture and ensure reliable operation during strong temperature fluctuations. Continuous consumers connected to the vehicle's electrical system (radios, charging cradles, etc.) are supplied without affecting the charging process. The built-in charging current distributor automatically supplies the starter battery with full charging current when needed. A reporting output can activate the engine start interlock when the vehicle is connected to the mains.
The devices are supplied with a temperature sensor 825 to ensure optimal battery charging. The installation position is variable, thanks to a second device label included in the scope of delivery. Instead of a remote control, a waterproof LED display (see accessories) can be connected to the Remote Control connection socket, indicating the device's operational readiness on the outside of the vehicle.

Further special features at a glance:

• Votronic products "Made in Germany"
• High charging power even on short journeys
• Significantly improved energy balance of the leisure battery
• Optimal charging characteristics for all battery types adjustable via battery selector switch (lead-acid, gel, AGM, lithium LiFePO4)
• Suitable for all alternators
• Automatic, adjustable power control ensures priority charging of the starter battery by the alternator in a heavily loaded vehicle electrical system, thus guaranteeing the vehicle's immediate starting capability
• Easy installation, no interventions in the vehicle's starter circuit required, device is connected in the charging line to the leisure battery
• Parallel operation possible for increased power
• Particularly recommended for vehicles with Euro 6 standard
• Temperature sensor 825 already included
• The charging converters are also characterized by their compact design, low weight (high-frequency switching transformer, switch mode technology) and robustly dimensioned power components. 6 operating indicators provide information about the device's operating status at all times.
• Recommended accessories: Votronic Remote Control S (2075) and Remote Display IP67 (2081)

Documents & Downloads

• Operating Instructions
• Data Sheet
