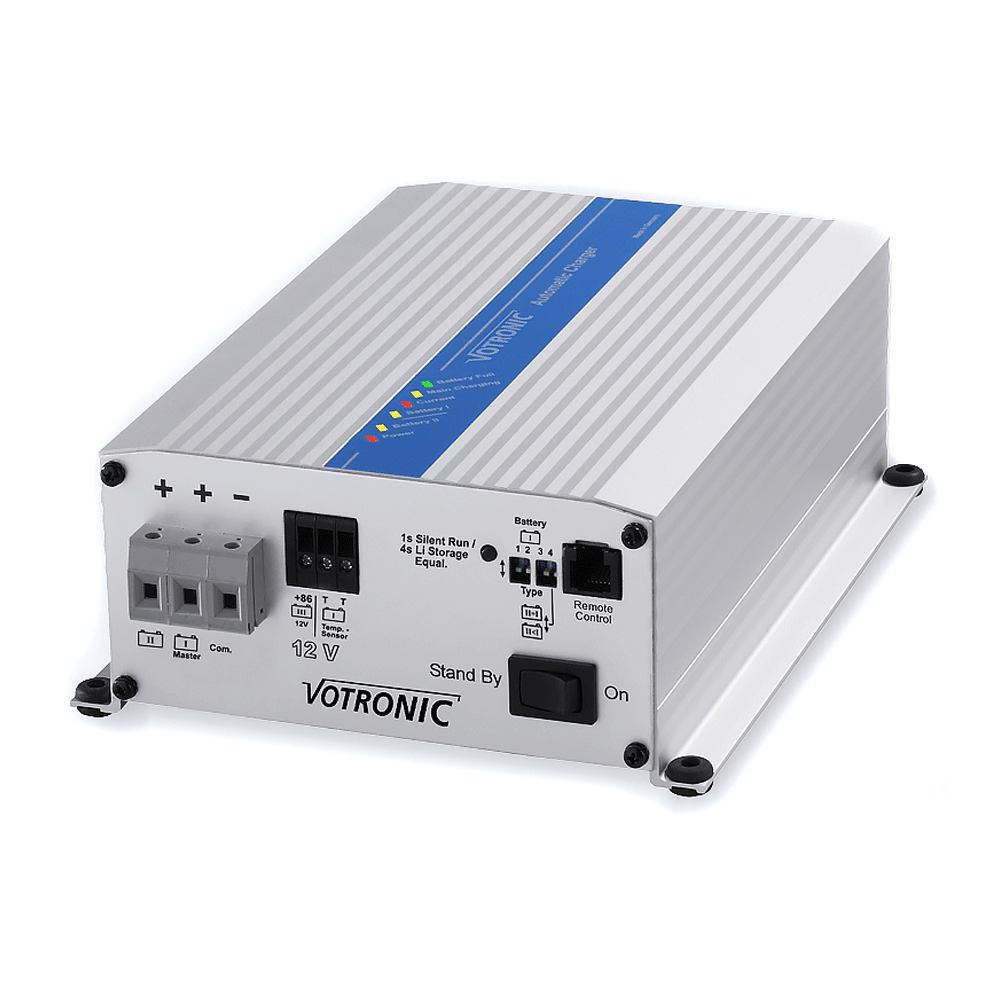

Votronic 30A 12V Battery Charger VAC 1230 M 3A - 0410

Votronic Battery Charger VAC-1230M 3A
Built-in mains chargers for emergency vehicles with very different operating cycles

Especially in rescue and emergency vehicles, the reliability of the batteries installed in the vehicle is crucial for the vehicle's operational readiness. This is particularly true if many continuous consumers place a heavy load on the batteries, if there is not enough time for recharging due to frequent use, or if the charger is inadequately matched to the batteries. To meet the special requirements of emergency vehicles, the VAC series was created in cooperation with vehicle and leading battery manufacturers.

Votronic charging technology has been used for years in professional emergency vehicles such as fire engines, ambulances, and coast guard! Quality - Made in Germany - !

The device electronics are protected against moisture and ensure reliable operation even with strong temperature fluctuations. Continuous consumers connected to the vehicle's electrical system (radios, charging cradles, etc.) are supplied without affecting the charging process. The built-in charging current distributor also automatically supplies the starter battery with full charging current if required. A notification output can be used to activate the engine start interlock when the vehicle is connected to the mains.
The devices are supplied with temperature sensor 825 to ensure optimal battery charging. The mounting position is variable, thanks to a second device label included in the scope of delivery. Instead of a remote control, a waterproof LED display (see accessories) can be connected to the "Remote Control" connection socket, which indicates the operating readiness of the device on the outside of the vehicle.

Further special features at a glance:

• Votronic products "Made in Germany"
• High charging power even on short journeys
• Significantly improved energy balance of the leisure battery
• Optimal charging characteristics for all battery types adjustable via battery selector switch (lead-acid, gel, AGM, lithium LiFePO4)
• Suitable for all alternators
• Automatic, adjustable power regulation ensures priority charging of the starter battery by the alternator when the vehicle's electrical system is heavily loaded, thus guaranteeing immediate start-up capability of the vehicle again.
• Easy installation, no intervention in the vehicle's starter circuit required, device is connected into the charging line to the leisure battery.
• Parallel operation for increased power possible
• Especially recommended for vehicles with Euro 6 standard
• Temperature sensor 825 already included in delivery
• The charging converters are also characterized by their compact design, low weight (high-frequency switching transformer, switch mode technology) and robustly dimensioned power components. 6 operating indicators provide information about the operating status of the device at any time.
• Recommended accessories: Votronic Remote Control S (2075) and Remote Display IP67 (2081)
