Votronic 50A 12V Battery Charger VAC 1250 M 3A - 0427

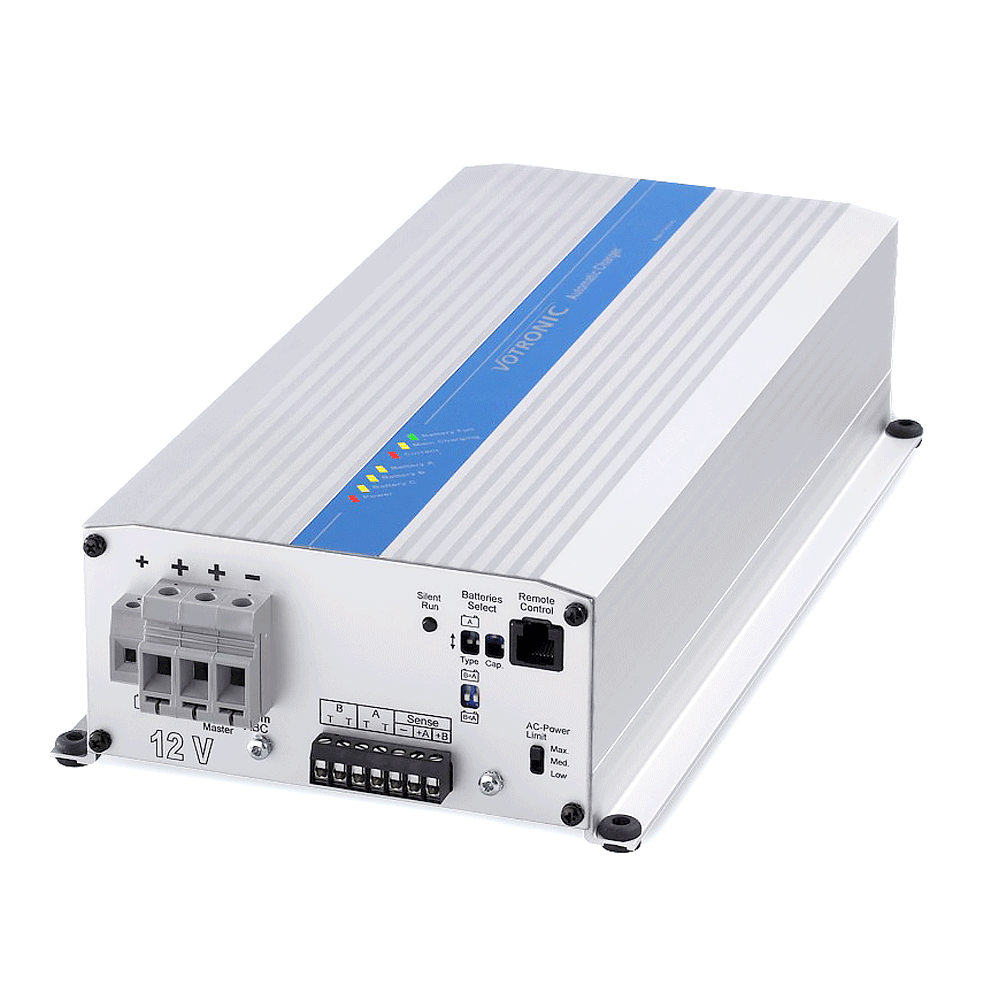

Votronic Battery Charger VAC-1250M 3A
Built-in mains chargers for emergency vehicles with highly varied operating cycles

Particularly in emergency and rescue vehicles, the reliability of the installed batteries is crucial for the operational readiness of the vehicle. This is especially true when many continuous consumers place a heavy load on the batteries, there is insufficient time for recharging due to frequent deployments, or the charger is inadequately matched to the batteries. To meet the specific requirements of emergency vehicles, the VAC series was developed in collaboration with vehicle and leading battery manufacturers.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard vehicles! Quality - Made in Germany - !

The device electronics are protected against moisture and ensure reliable operation during strong temperature fluctuations. Continuous consumers connected to the vehicle's electrical system (radios, charging cradles, etc.) are supplied without affecting the charging process. The built-in charging current distributor also automatically supplies the starter battery with full charging current if required. A signal output can activate the engine immobilizer when the vehicle is connected to the mains.
The devices are supplied with temperature sensor 825 to ensure optimal battery charging. The mounting position is variable, thanks to a second device label included in the scope of delivery. Instead of a remote control, a waterproof LED display (see accessories) can be connected to the Remote Control connection socket, which indicates the operational readiness of the device on the outside of the vehicle.

Further special features at a glance:

• Votronic products "Made in Germany"
• High charging performance even on short journeys
• Significantly improved energy balance of the leisure battery
• Optimal charging curves for all battery types adjustable via battery selector switch (lead-acid, gel, AGM, lithium LiFePO4)
• Suitable for all alternators
• Automatic, adjustable power control ensures priority charging of the starter battery by the alternator when the vehicle's electrical system is heavily loaded, thus guaranteeing the vehicle's immediate starting capability again
• Easy installation, no intervention in the vehicle's starter circuit required, device is connected in the charging line to the leisure battery
• Parallel operation possible for increased performance
• Particularly recommended for vehicles with Euro 6 standard
• Temperature sensor 825 already included in delivery
• The charging converters are also characterized by their compact design, low weight (high-frequency switching transformer, switch mode technology) and robustly dimensioned power components. 6 operating indicators provide information on the operating status of the device at all times.
• Recommended accessories: Votronic Remote Control S (2075) and Remote Display IP67 (2081)

Documents & Downloads

• Operating Instructions
• Data Sheet
