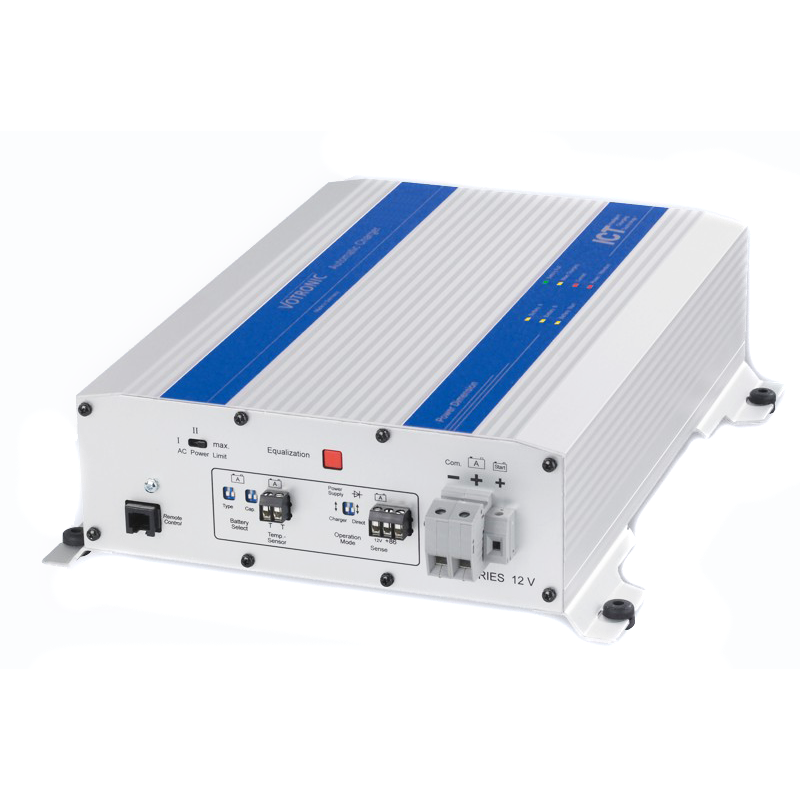

Votronic 60A 12V Battery Charger VAC 1260 M 3A / 100 VAC - 0432

Votronic Battery Charger VAC-1260M 3A / 110 V AC
Built-in mains chargers for emergency vehicles with highly varying duty cycles

Especially in the case of rescue and emergency vehicles, the reliability of the batteries installed in the vehicle is crucial for the vehicle's operational readiness. This is particularly true when many continuous consumers place a heavy load on the batteries, when there is insufficient time for recharging due to frequent operations, or when the charger is inadequately matched to the batteries. To meet the specific requirements of emergency vehicles, the VAC series was developed in cooperation with vehicle and leading battery manufacturers.

Votronic charging technology has been used for years in professional emergency vehicles such as fire trucks, ambulances, and coast guard vessels! Quality - Made in Germany - !

The device electronics are protected against moisture and ensure safe operation even with strong temperature fluctuations. Continuous consumers connected to the vehicle's electrical system (radios, charging cradles, etc.) are supplied without affecting the charging process. If necessary, the built-in charging current distributor automatically supplies the starter battery with full charging current. A reporting output can be used to activate the engine start interlock when the vehicle is connected to the mains.
The devices are supplied with temperature sensor 825 to ensure optimal battery charging. The installation position is variable, thanks to a second device label included in the scope of delivery. Instead of a remote control, a waterproof LED display (see accessories) can be connected to the Remote Control socket, which indicates the device's operational readiness on the outside of the vehicle.

Further features at a glance:

• Votronic products "Made in Germany"
• High charging power even on short journeys
• Significantly improved energy balance of the leisure battery
• Optimal charging characteristics for all battery types adjustable via battery selector switch (lead-acid, gel, AGM, lithium LiFePO4)
• Suitable for all alternators
• Automatic, adjustable power control ensures priority charging of the starter battery by the alternator when the vehicle's electrical system is heavily loaded, thus ensuring the vehicle's immediate starting capability
• Easy installation, no interventions in the vehicle's starter circuit required, device is switched into the charging line to the supply battery
• Parallel operation possible for increased power
• Particularly recommended for vehicles with Euro 6 standard
• Temperature sensor 825 already included in the scope of delivery
• The charging converters are also characterized by a compact design, low weight (high-frequency switching transformer, switch-mode technology) and powerfully dimensioned power components. 6 operating indicators provide information on the operating status of the device at all times.
• Recommended accessories: Votronic Remote Control S (2075) and Operating Remote Display IP67 (2081)

Documents & Downloads

• Operating Instructions
• Data Sheet
